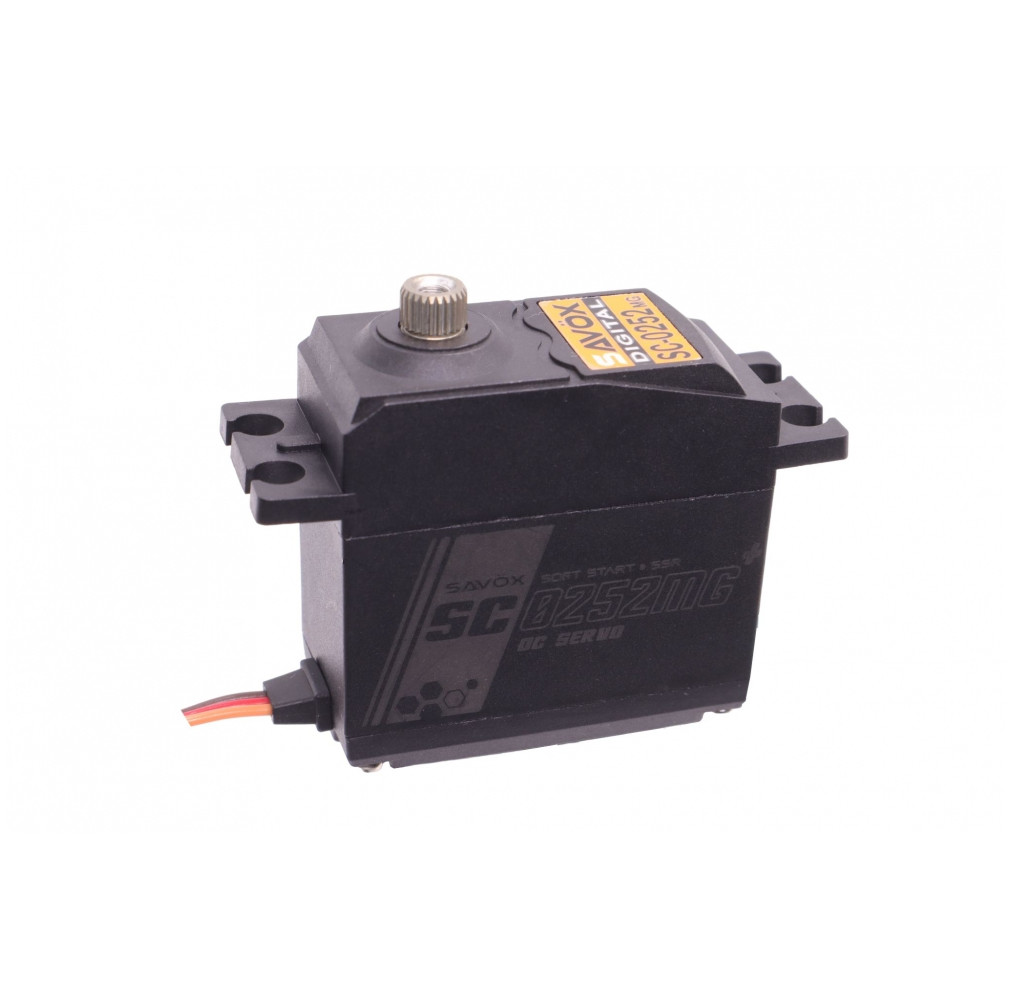

SAVÖX SC-0252MG SERVO
New + version with soft start, Sanwa SSR mode
Strong 10.4kg*cm digital servo, ideal for RC cars or airplanes, robust low-backlash metal gear
0.19 sec/60 degrees and 10.5 kg*cm at 6.0 volts
Dimensions (L/W/H): 40.7 x 20 x 39.4 mm
Weight 49 grams

DESCRIPTION
The SC-0252MG+ is a strong and very reliable standard size servo which is very suitable for use in RC cars and airplanes.

The new + version of the well-known SC-0252MG servo differs slightly from its predecessor both visually and technically. A soft start, which slowly moves the servo to the starting position when switched on, and the Sanwa SSR mode characterize the + version.

The SC version of the 0252MG+ is specially designed for use in RC cars. The C in SC stands for Car. The gearbox and software are optimized for this application; the low-backlash metal gearbox is extremely robust and reliable.

CHARACTERISTICS
Operating time S1/60° (sec): 0.19
Actuating force S1 (kg*cm): 10.5
Width (mm): 20
Height (mm): 39.4
Voltage range: 4.8V-6V
Length (mm): 40.7
Weight (g): 49
Control frequency: Up to 333Hz, 1520us center pulse
High-voltage capable up to 8.4V: No
Engine type: brush motor
Recommended use: Helicopter, plane, car, boat
Housing type: plastic
Ball bearings (number): 2
Voltage 1 (Volt): 6.0
Gear type: metal
Output teeth (number): 25
Classification: default
