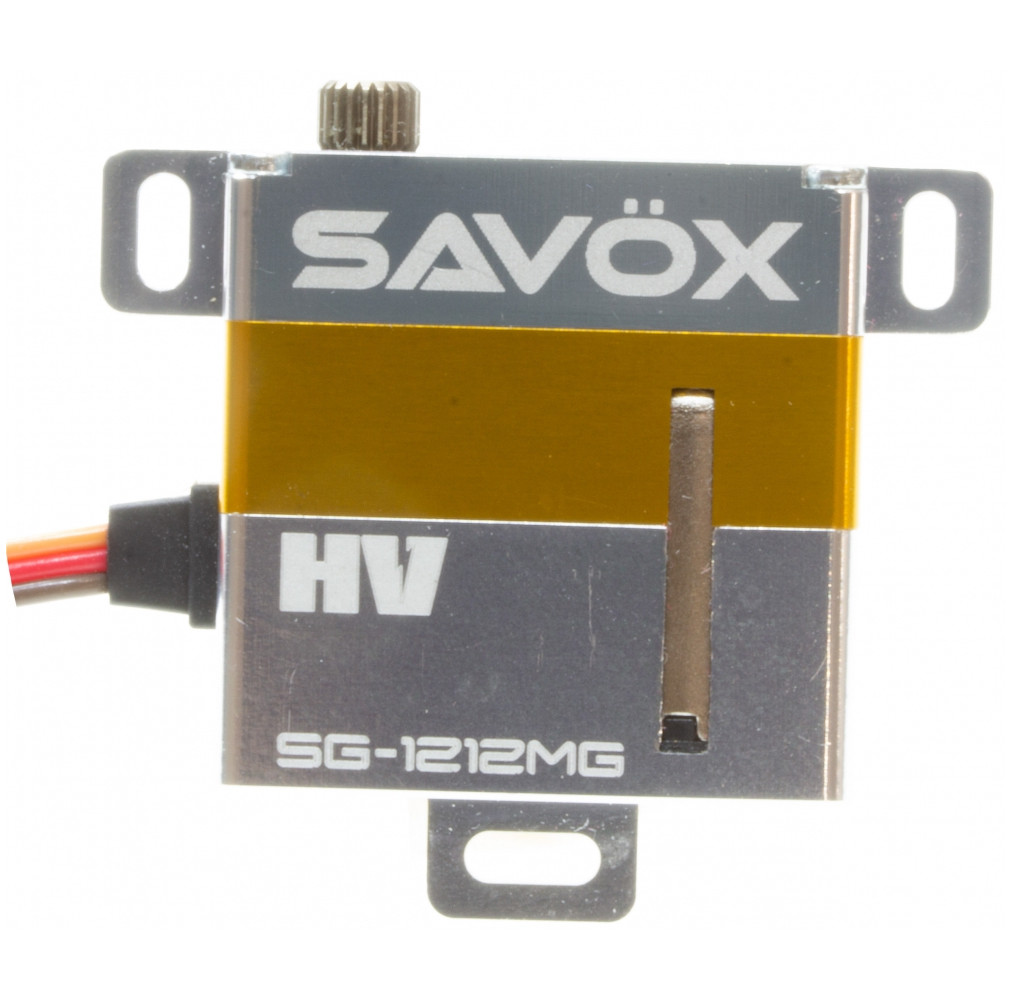

SAVÖX SG-1212MG SERVO
10mm wing servo
HV capable, developed for 8.4V!
8kg @ 7.4V & 10kg @ 8.4V
Fits most 30x30x10mm frames
Backlash-free, robust metal gear


DESCRIPTION
With a total depth of only 10mm, the new SAVÖX SG-1212MG is ideal for installation in narrow wings of gliders, jets or speed models. The newly developed 10 mm coreless motor is extremely powerful and ensures high stability.
The high-quality 10mm full aluminum housing with 3 mounting points can be mounted precisely and ensures good heat dissipation. To ensure the highest possible control precision for your model, a backlash-free, double ball bearing gear was installed.

Despite its force of 8.0 kg at 7.4V, this little powerhouse is not a heavyweight at 27 grams.

The SG-1212 was designed and developed directly for the use of a 2 LiPo with 8.4V, the actuating force is then 10kg. The dimensions of 30x30x10mm fit in almost all common models for which 10mm wing servos are intended.

To simplify assembly, each servo comes with a sturdy mounting frame. A servo lever specially adapted to the needs of the fixed-wing model completes the package.

Matching optional servo frames with counter bearings are already available in the shop.

CHARACTERISTICS
Operating time S1/60° (sec): 0.12
Height (mm): 10
Actuating force S2 (kg*cm): 10
Weight (g): 27
Width (mm): 30
Length (mm): 30
Voltage range: 4.8V-8.4V
Actuating force S1 (kg*cm): 8th
Classification: wing servo
High-voltage capable up to 8.4V: Yes
Packaging: default
Ball bearings (number): 2
Output teeth (number): 21
Recommended use: Airplane
Engine type: Bell armature motor
Gear type: metal
Voltage 1 (Volt): 7.4
Housing type: Full metal
Voltage 2 (Volts): 8.4
