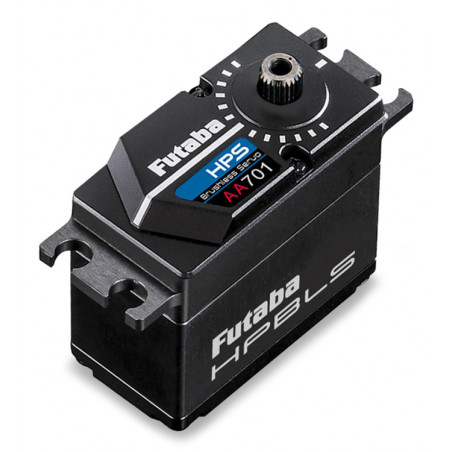

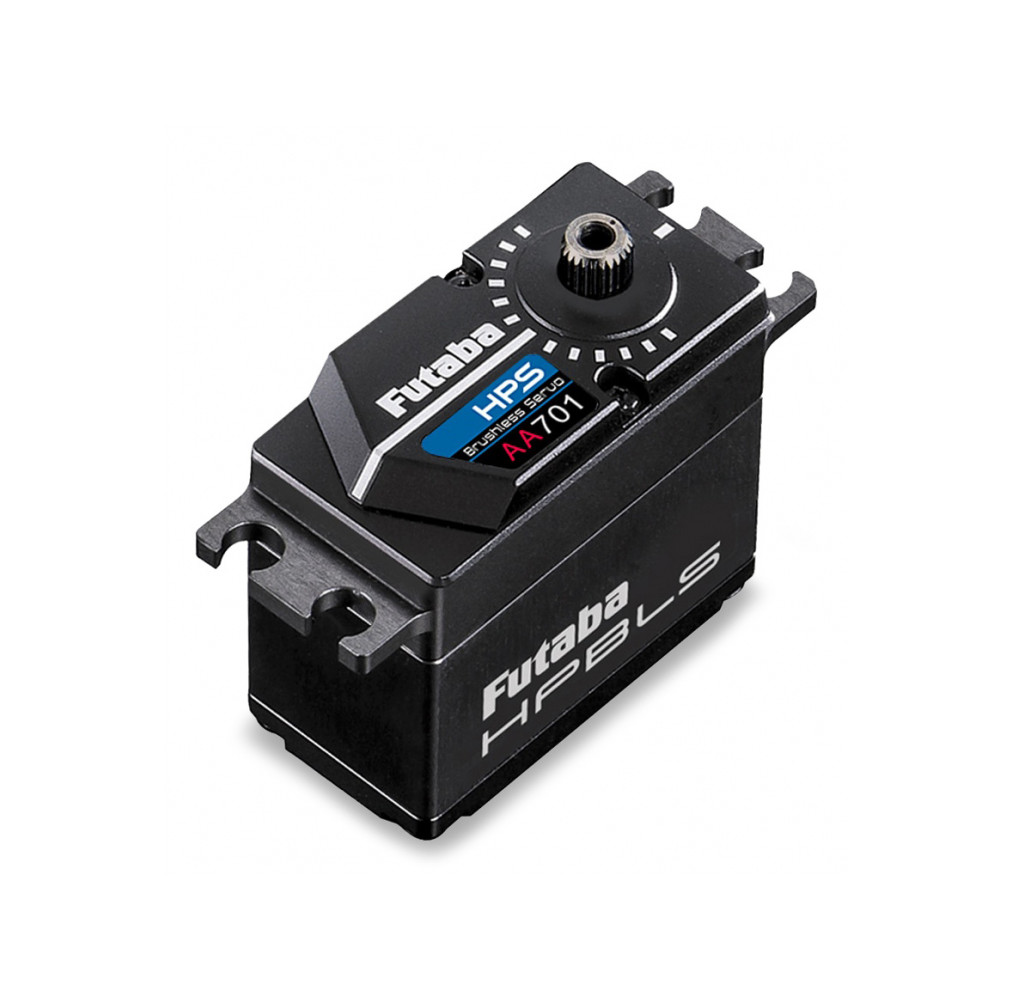

Futaba Servo HPS-AA701 Flight 45kg 0.075s HV/S.BUS2
Futaba HPS-AA701 Airplane Servo
With the HPS-AA701, FUTABA is expanding the successful High Power Servo line. The new FUTABA HPS-AA701 high-performance servo with an all-aluminum housing sets new standards in this class with a torque of 49 kgcm and an actuating time of 0.075 sec/60° at 7.4V.

The HPS servos have special brushless motors that remain significantly cooler during operation. Together with the new HPS technology, the power consumption is lower over the entire operating time. Like any S.BUS2 servo, the HPS-AA701 can be connected to all conventional receivers with PWM modulation and can be optimally adapted to the respective operating conditions through programming.

Features:
S.BUS2 high performance HPS digital servo
Metal body and metal gears
HPS brushless motor technology
High Voltage
ball bearing
Low-wear potentiometer
High resolution
High positioning accuracy

Specifications:
Speed ??60°: 0.075 s (7.4 V)
Torque: 49 kgcm (7.4 V)
Voltage: 6.0 - 8.4V
Control frequency: 50 - 300 Hz
Weight: 80g
Dimensions: 40.5 x 21 x 39.4mm
