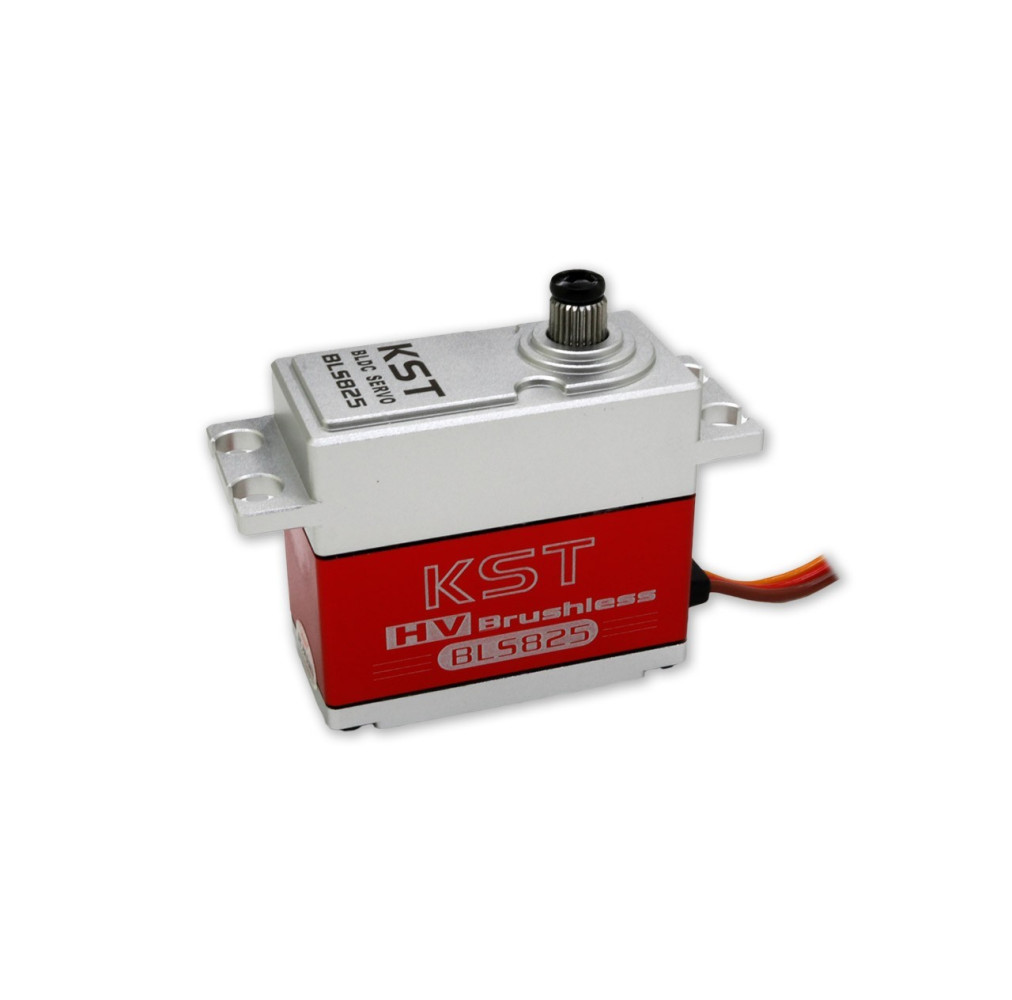

KST BLS825 V8.0 HV 35kgf.cm@8.4V
Description
Discover the power and precision of the KST BLS 825 – the servo that knows no compromises! With its brushless motor and incredible torque, the KST BLS 825 is ideal for the most demanding applications. Whether in competition or extreme conditions, this servo delivers consistently high performance and precise control. Rely on the proven quality and reliability of the KST BLS 825 to take your aircraft and models to the next level. Maximum control, ultimate efficiency – the KST BLS 825 is your key to success!

Technical Details:
Operating Voltage [V]: 6.0 - 8.4

Torque [kgf.cm]@6.0V: 25.0
Torque [kgf.cm]@7.4V: 30.0
Torque [kgf.cm]@8.4V: 35.0

Response Time [s/60°]@6.0V: 0.15
Response Time [s/60°]@7.4V: 0.13
Response Time [s/60°]@8.4V: 0.11

Width [mm]: 20.0
Length [mm]: 40.5
Height [mm]: 38.0
Weight [g]: 70.0

Motor Type: Brushless
Frequency Range: 1520µs/333Hz, 1000µs-2000µs
Gear Type: Steel
Bearing Type: 2BB
Gear Ratio: 25T-2
Servo Type: Standard
Electronics: Digital
Position Sensor: Potentiometer
Waterproof: No
Soft start: Programmable.
Programmable: Yes.
Manufacturer: KST.
Programmable with KST Tool 3 and KST Tool 5.

Please refer to the model manufacturer's servo specifications when selecting servos.
Characteristics
Operating voltage: 8.4V (HV)
Gearbox type / bearing: Hardened steel / 2 BB
Mounting tabs: Standing assembly
Engine type: Brushless
Position sensor: Potentiometer
Interlocking: 25T-6
