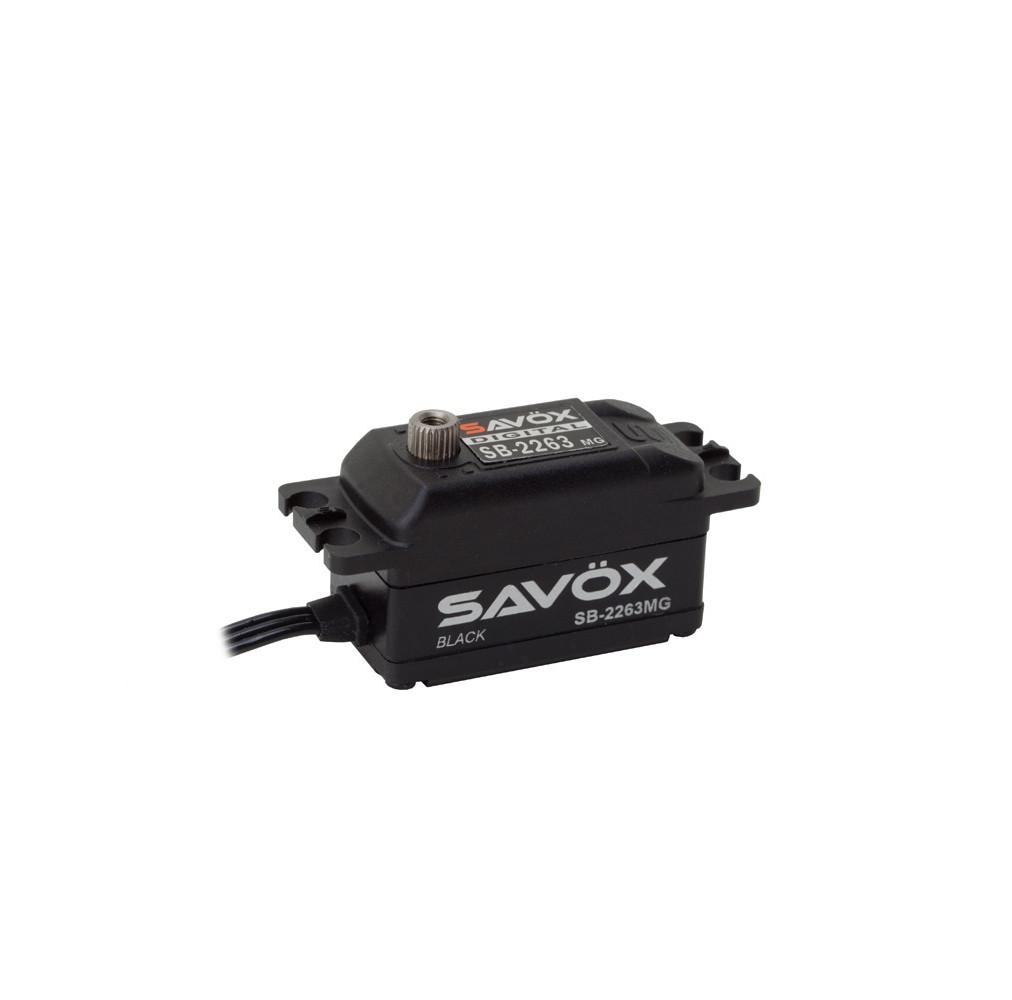

SAVÖX SB-2263MG SERVO BLACK EDITION
Dimensions (L/W/H): 40.8 x 20.2 x 25.4 mm
Weight: 48.0 grams
0.10/0.076 sec/60 degrees and 80/100 Ncm at 4.8/6.0 volts
Fast digital servo
Possible application examples: Low profile servo for cars

DESCRIPTION
Low Profile Digital Servo
Classification: Low Profile
Motor: Brushless Motor
Gear: Metal
Number of Teeth Output Pinion: 25
Housing: Partial Metal
Number of Ball Bearings: 2
Actuating time (sec) at 60 degrees: 0.10 at 4.8 V and 0.076 at 6.0 V
actuating force (kg): 8.0 at 4.8 V and 10.0 at 6.0 V
Weight (gr): 48.0
Dimensions L/W/H (mm): 40.8 x 20.2 x 25.4
Scope of delivery: Servo including servo lever and fastening screws
Area of ??application: airplane, car, helicopter
Possible application examples: Low profile servo for cars

CHARACTERISTICS
Operating time S2/60° (sec): 0.076
Operating time S1/60° (sec): 0.10
Actuating force S2 (kg*cm): 10.0
Width (mm): 20.2
Height (mm): 25.4
Length (mm): 40.8
Weight (g): 48.0
Actuating force S1 (kg*cm): 8.0
High-voltage capable up to 8.4V: No
Packaging: default
Voltage 1 (Volt): 4.8
Recommended use: Helicopter, plane, car
Classification: Low profile
Ball bearings (number): 2
Voltage 2 (Volts): 6.0
Gear type: metal
Housing type: Part metal
Output teeth (number): 25
Engine type: Brushless motor
