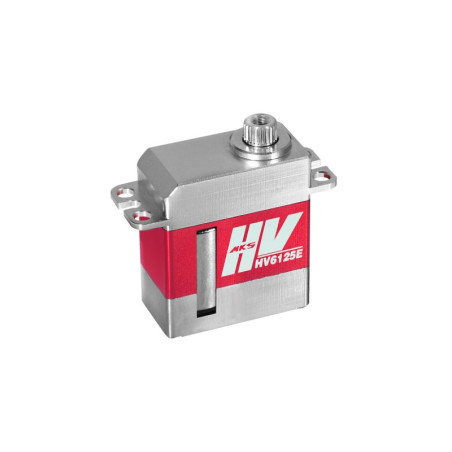

MKS Servo Digital Micro HV6125E (0.05s/60°, 3.5kg.cm)
Ultra high speed 20g HV digital slim micro servo w. metal gears; input voltage 6.0-8.4V, 2xBB. Ideal for fast gliders, aerobatic/scale model aeroplanes and helicopters. Torque 2.3kg.cm, speed 0.07s/60° at 6.0V, torque 3.0kg.cm, speed 0.06s/60° at 7.4V, torque 3.5kg.cm, speed 0.06s/60° at 8.2V. Dimensions 23x12x27.3mm, weight 19.86g. Aluminium case for perfect heat dissipation. Programmable with DSP-1 programmer.

Servo dimensions Micro
Servo type Digital
Programmable Yes
Thrust at 6.0V [kg·cm] 2.3
Thrust at 7.4V [kg·cm] 3
Torque at 8.2 V [kg·cm] 3.5
Speed at 6.0V [s/60st.] 0.07
Speed at 7.4V [s/60st.] 0.06
Speed at 8.2 V [s/60st.] 0.05
Control pulse width in neutral [µs] 1520
Frame Rate [Hz] 333
Deadband [ms] 0.0008
Servo gears Metal
Ball bearings 2×
High-voltage Yes
Power supply [V] 6 - 8.4
Length [mm] 23
Width [mm] 12
Height [mm] 27.3
Weight [g] 19.86
Intended for Aeroplanes,Helicopters
