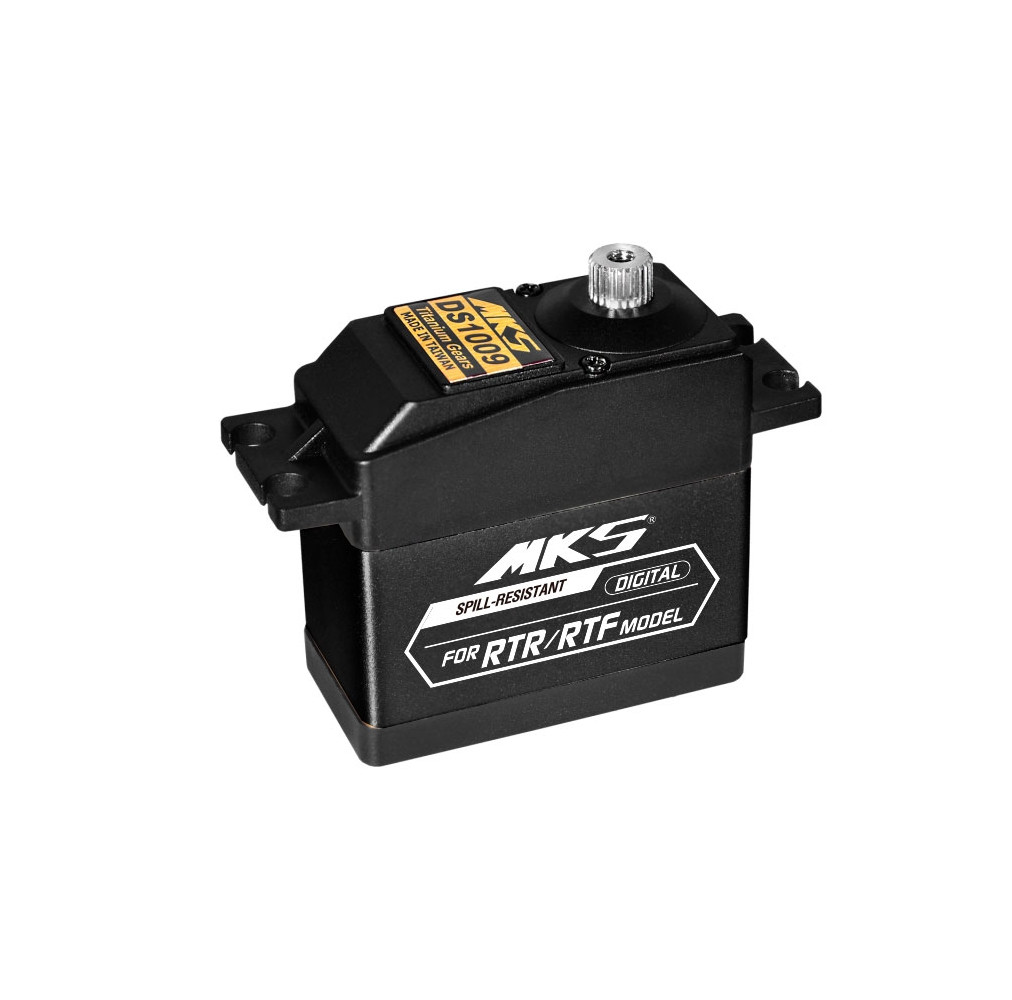

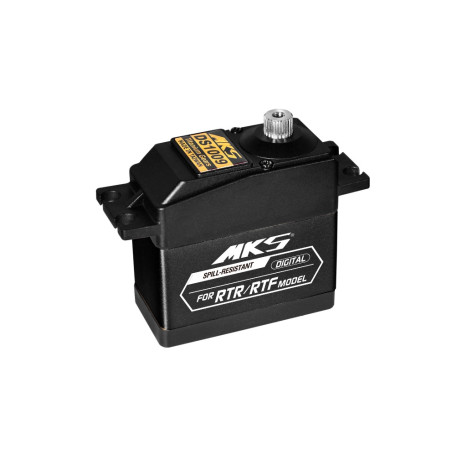

MKS Servo Digital Standard DS1009 (0.10s/60°, 8.8kg.cm)
56g digital standard servo w. metal gears; input voltage 4.8-6.0V, 2xBB. Fo general use, regular model aeroplanes. Torque 7.04kg.cm, speed 0.125s/60° at 4.8V, torque 8.06kg.cm, speed 0.109s/60° at 5.5V, torque 8.8kg.cm, speed 0.100s/60° at 6.0V. Aluminium mid case for perfect heat dissipation. Dimensions 40x20x40mm, weight 56g. Programmable with DSP-1 programmer.

Servo dimensions Standard
Servo type Digital
Programmable Yes
Thrust at 4.8V [kg·cm] 7.04
Torque at 5.5 V [kg·cm] 8.06
Thrust at 6.0V [kg·cm] 8.8
Speed at 4.8V [s/60st.] 0.125
Speed at 5.5 V [s/60st.] 0.109
Speed at 6.0V [s/60st.] 0.1
Control pulse width in neutral [µs] 1520
Frame Rate [Hz] 333
Deadband [ms] 0.001
Servo gears Metal
Ball bearings 2×
High-voltage Yes
Power supply [V] 4.8 - 6
Length [mm] 40
Width [mm] 20
Height [mm] 40
Weight [g] 56
Intended for Aeroplanes
