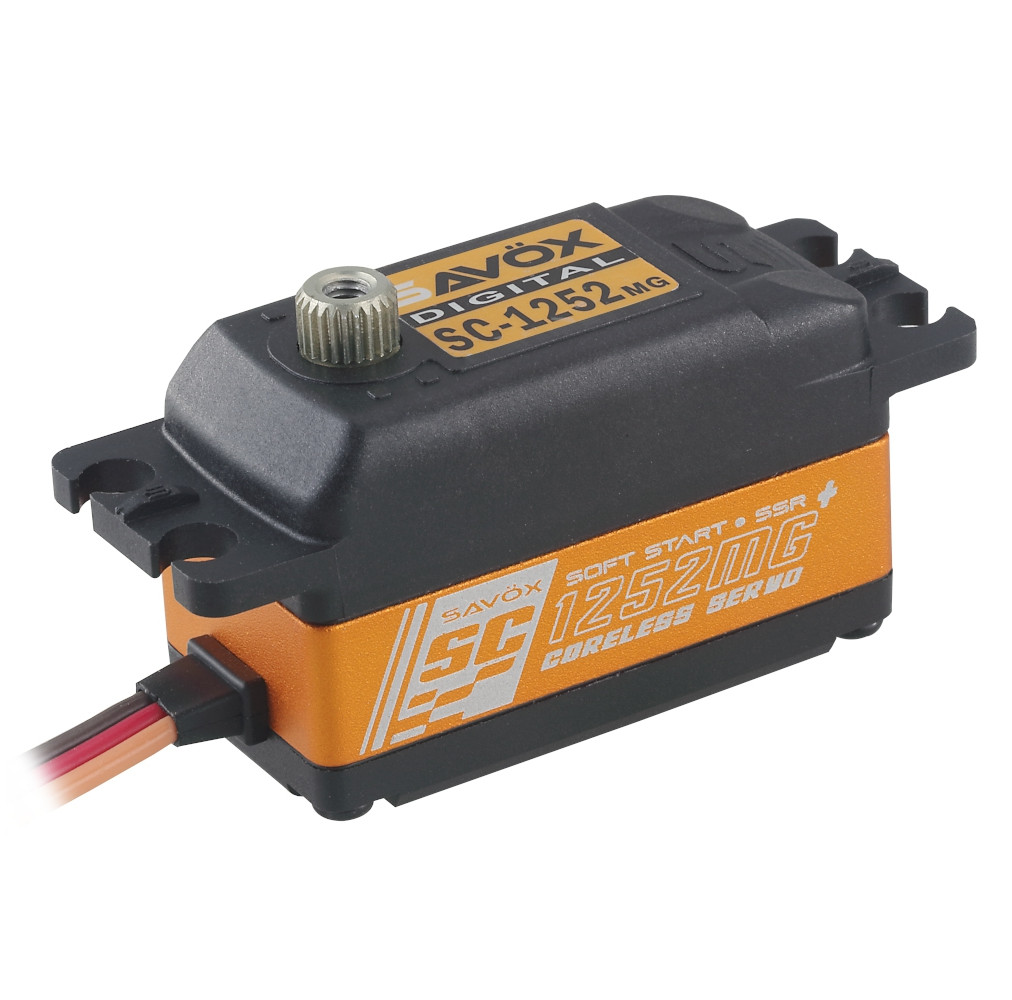

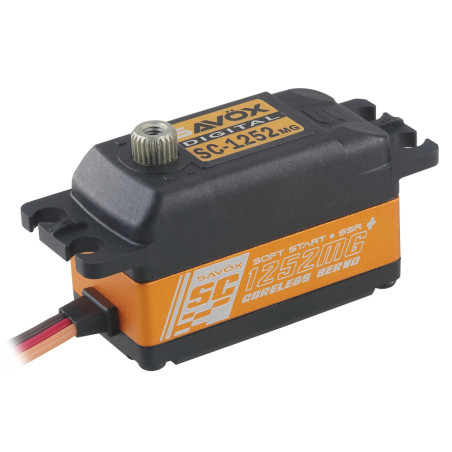

SAVÖX SC-1252MG SERVO
New + version with soft start, Sanwa SSR mode
Dimensions (L/W/H): 40.8 x 20.2 x 25.4 mm Weight: 46 grams
0.08/0.07 sec/60 degrees and 4.5/7 kg*cm at 4.8/6 volts
Fast low-profile servo
Possible application examples: Low profile for RC cars

DESCRIPTION
The SC-1252MG+ is a fast, low-profile servo which is very suitable for use in RC cars. Of course it can also be used in a helicopter.

The new + version of the well-known SC-1252MG+ servo differs slightly from its predecessor both visually and technically. A soft start, which slowly moves the servo to the starting position when switched on, and the Sanwa SSR mode characterize the + version.

The technical data of the servo leaves nothing to be desired: 0.08/0.07 sec/60 degrees and 4.5/7 kg*cm at 4.8/6 volts

control frequency up to 333Hz, center pulse 1520us

Scope of delivery: Servo incl. Servo lever and mounting screws


CHARACTERISTICS
Operating time S1/60° (sec): 0.07
Width (mm): 20.2
Height (mm): 25.4
Actuating force S1 (kg*cm): 4.5
Voltage range: 4.8V-6V
Length (mm): 40.8
Weight (g): 44.5
Actuating force S2 (kg*cm): 7
Control frequency: Control frequency up to 333Hz, center pulse 1520us
High-voltage capable up to 8.4V: No
Voltage 1 (Volt): 4.8
Recommended use: Helicopter, plane, car, boat
Classification: Low profile
Ball bearings (number): 2
Voltage 2 (Volts): 6.0
Engine type: Bell armature motor
Gear type: metal
Housing type: Part metal
Output teeth (number): 25
