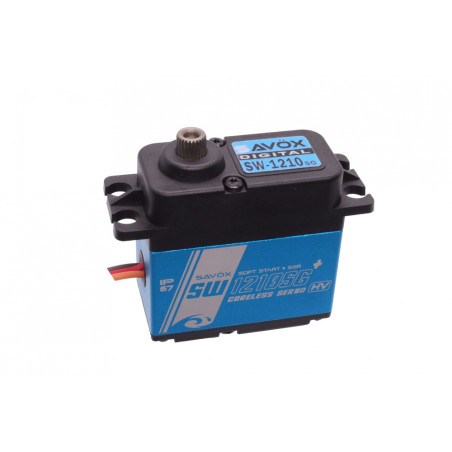

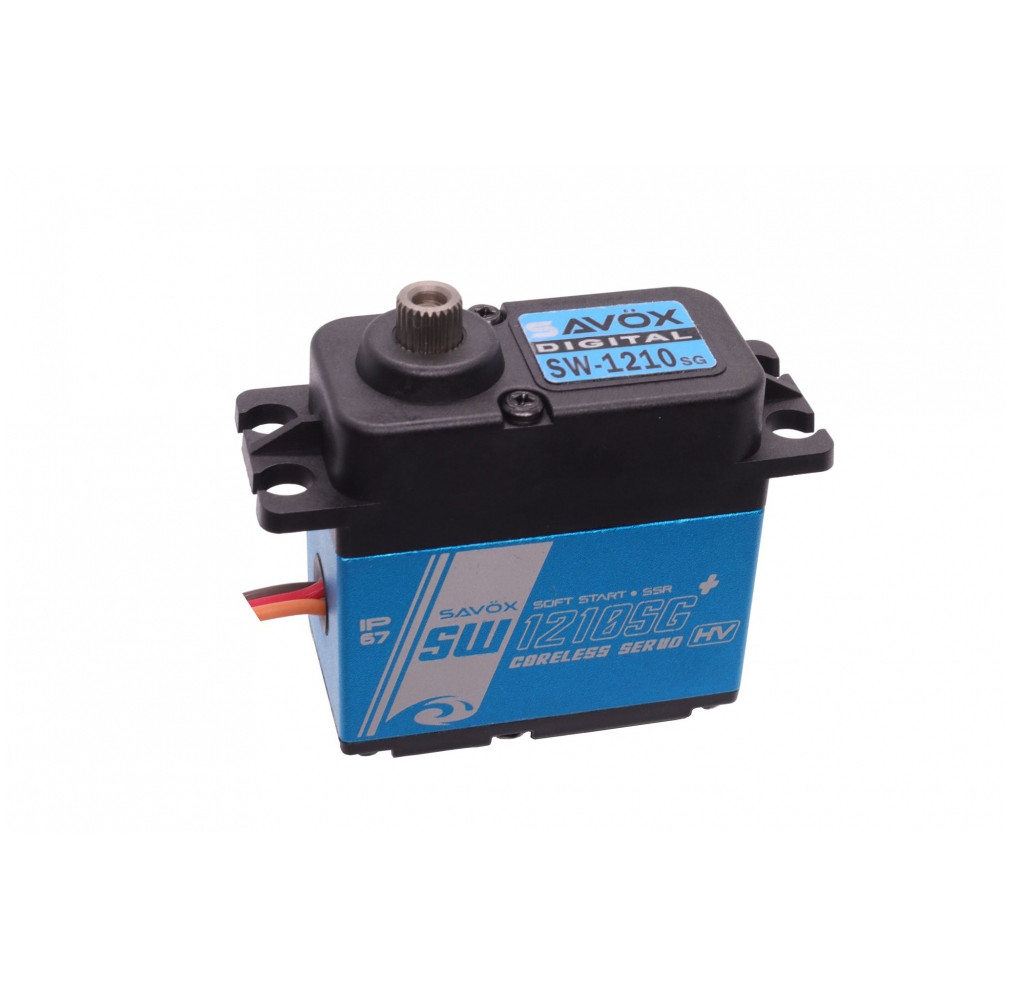

SAVÖX SW-1210SG SERVO
New + version with soft start, Sanwa SSR mode
Strong 37kg*cm digital servo, ideal for RC cars, robust low-backlash steel gear
Waterproof digital servo according to IP67, HV capable (8.4V)
Dimensions (L/W/H): 40.6 x 20.7 x 42.0 mm Weight: 71 grams
0.13/0.12 sec/60 degrees and 32/37 kg*cm at 7.4/8.4 volts

DESCRIPTION
The SW-1210SG+ is a strong, waterproof and very reliable standard size servo which is very suitable for use in RC cars and boats.

The new + version of the well-known SW-1210SG+ servo differs slightly from its predecessor both visually and technically. A soft start, which slowly moves the servo to the starting position when switched on, and the Sanwa SSR mode characterize the + version.

The SW-1210SG+ is protected according to IP67 and is therefore ideal where water could be used. It is HV capable, meaning it can be operated directly on a 2s LiPo with up to 8.4V!

The technical data speak for themselves: 0.13/0.12 sec/60 degrees and 32/37 kg*cm at 7.4/8.4 volts, the robust steel gear ensures longevity even in tough use

CHARACTERISTICS
Operating time S2/60° (sec): 0.12
Operating time S1/60° (sec): 0.13
Width (mm): 20.7
Actuating force S1 (kg*cm): 32
Actuating force S2 (kg*cm): 37
Voltage range: 4.8V-8.4V
Length (mm): 40.6
Height (mm): 42
Weight (g): 71
Control frequency: Up to 333Hz, 1520us center pulse
High-voltage capable up to 8.4V: Yes
Recommended use: Helicopter, plane, car, boat
Ball bearings (number): 2
Engine type: Bell armature motor
Housing type: Part metal
Output teeth (number): 25
Voltage 1 (Volt): 7.4
Gear type: steel
Voltage 2 (Volts): 8.4
Classification: default
