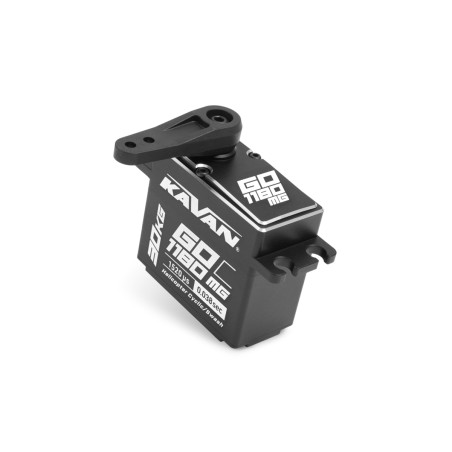

Kavan Servo Digital Standard GO-1180MG (0.038s/60°, 30kg.cm)
High torque/ultra high speed digital standard brushless 79g servo with titanium/hardened steel gear and wide input voltage range 4.8-8.4V, 3xBB, ideal as swashplate servo for 500-800 RC helis etc. Torque 22.0kg.cm, speed 0.060s/60° at 4.8V, torque 24.0kg.cm, speed 0.050s/60° at 6.0V, torque 28.0kg.cm, speed 0.042s/60° at 7.4V, torque 30.0kg.cm, speed 0.038s/60° at 8.4V. Aluminium case for perfect cooling under high load. Not programmable.

Servo dimensions Standard
Servo type Digital
Programmable No
Thrust at 4.8V [kg/cm] 22
Thrust at 6.0V [kg/cm] 24
Thrust at 7.4V [kg/cm] 28
Thrust at 8.4V [kg/cm] 30
Speed at 4.8V [s/60st.] 0.06
Speed at 6.0V [s/60st.] 0.05
Speed at 7.4V [s/60st.] 0.042
Speed at 8.4V [s/60st.] 0.038
Servo gears Metal,Titanium
Ball bearings 3×
High-voltage Yes
Power supply [V] 4.8 - 8.4
Length [mm] 40
Width [mm] 20
Height [mm] 37.5
Weight [g] 79
Intended for Helicopters
