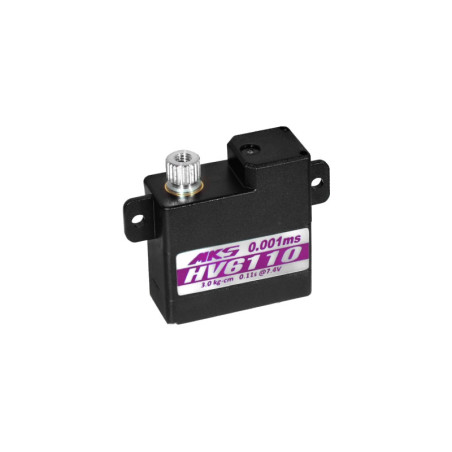

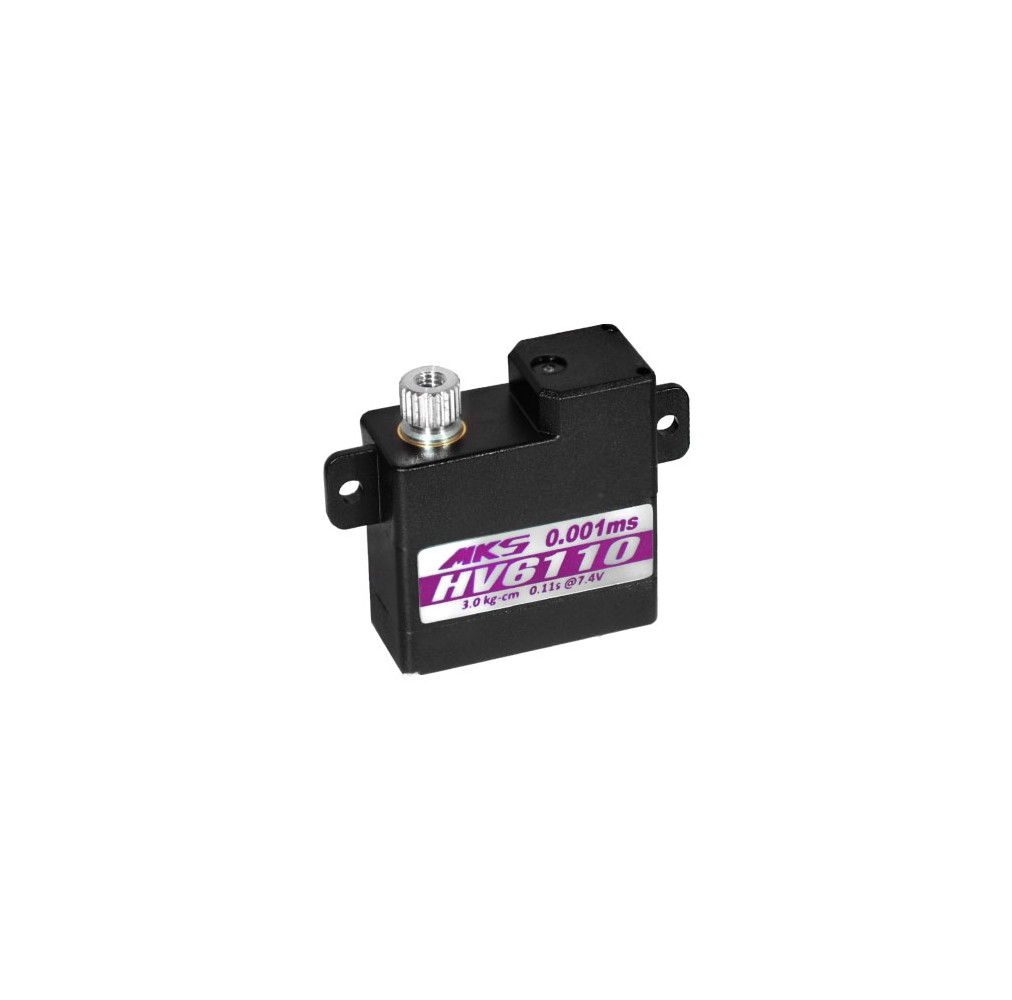

MKS Servo Digital Micro HV6110 (0.10s/60°, 3.4kg.cm)
Very high torque/ high speed 10g HV digital slim micro servo w. metal gears; input voltage 6.0-8.4V, 1xoil-retaining bearing. Ideal wing servo for hand launch gliders, gliders and smaller aerobatic/scale model aeroplanes. Torque 2.6kg.cm, speed 0,14s/60° at 6.0V, torque 3.0kg.cm, speed 0.11s/60° at 7.4V, torque 3.4kg.cm, speed 0.10s/60° at 8.2V. Dimensions 22.5x10x23.8mm, weight 10g. Plastic case with flat mounting lugs. Programmable with DSP-1 programmer.

Servo dimensions Micro
Servo type Digital
Programmable Yes
Thrust at 6.0V [kg·cm] 2.6
Thrust at 7.4V [kg·cm] 3
Torque at 8.2 V [kg·cm] 3.4
Speed at 6.0V [s/60st.] 0.14
Speed at 7.4V [s/60st.] 0.11
Speed at 8.2 V [s/60st.] 0.1
Control pulse width in neutral [µs] 1520
Frame Rate [Hz] 333
Deadband [ms] 0.001
Servo gears Metal
Ball bearings None
High-voltage Yes
Power supply [V] 6 - 8.4
Length [mm] 22.5
Width [mm] 10
Height [mm] 23.8
Weight [g] 10
Intended for Aeroplanes,Helicopters
