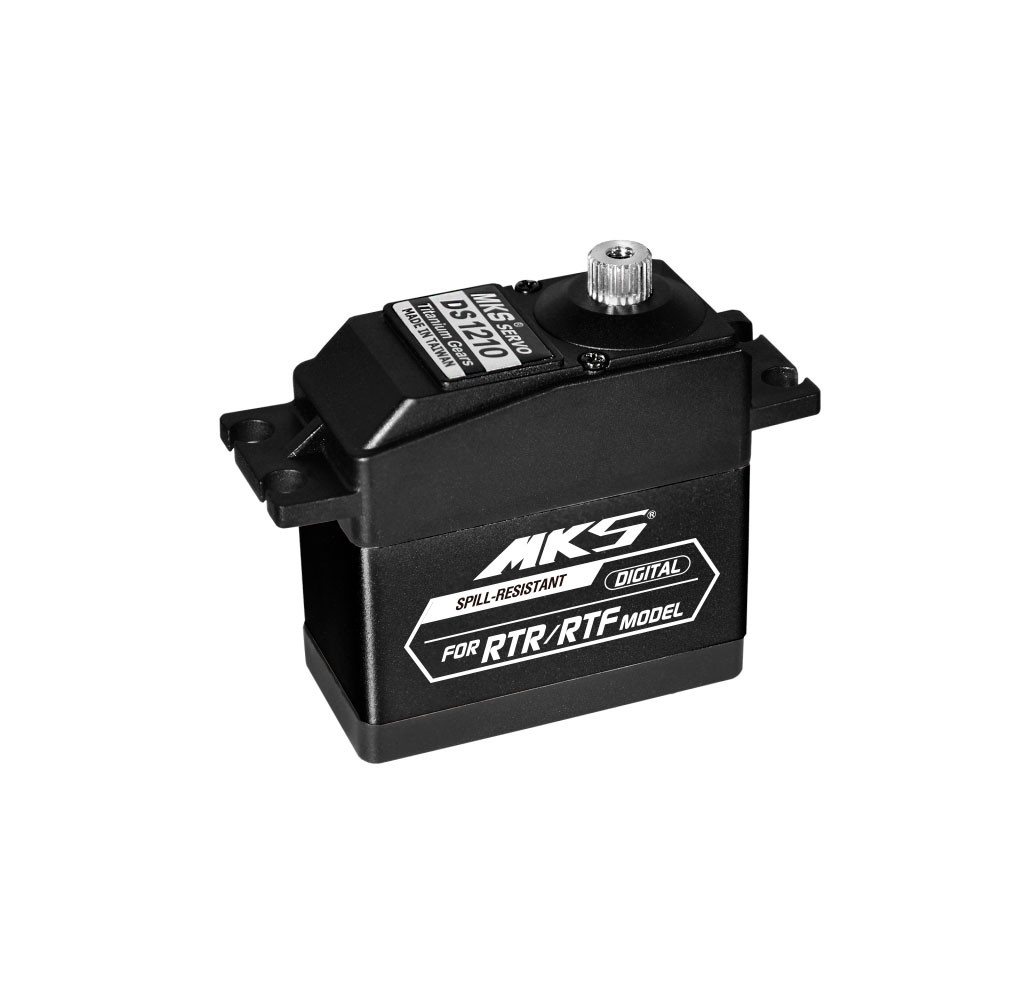

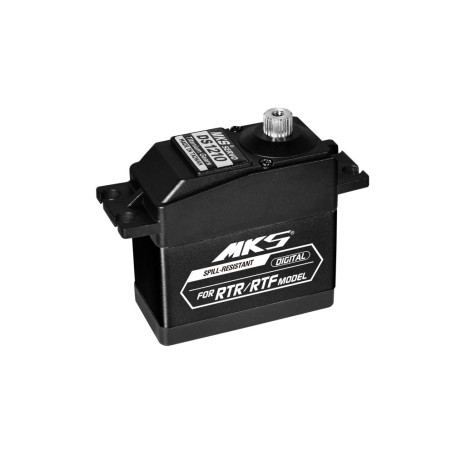

MKS Servo Digital Standard DS1210 (0.12s/60°, 10.0kg.cm)
56g digital standard servo w. metal gears; input voltage 4.8-6.0V, 2xBB. Fo general use, regular model aeroplanes. Torque 8.05kg.cm, speed 0.15s/60° at 4.8V, torque 9.2kg.cm, speed 0.131s/60° at 5.5V, torque 10.0kg.cm, speed 0.12s/60° at 6.0V. Aluminium mid case for perfect heat dissipation. Dimensions 40x20x40mm, weight 56g. Programmable with DSP-1 programmer.

Servo dimensions Standard
Servo type Digital
Programmable Yes
Thrust at 4.8V [kg·cm] 8.05
Torque at 5.5 V [kg·cm] 9.2
Thrust at 6.0V [kg·cm] 10
Speed at 4.8V [s/60st.] 0.15
Speed at 5.5 V [s/60st.] 0.131
Speed at 6.0V [s/60st.] 0.12
Control pulse width in neutral [µs] 1520
Frame Rate [Hz] 333
Deadband [ms] 0.001
Servo gears Metal
Ball bearings 2×
High-voltage Yes
Power supply [V] 4.8 - 6
Length [mm] 40
Width [mm] 20
Height [mm] 40
Weight [g] 56
Intended for Aeroplanes
