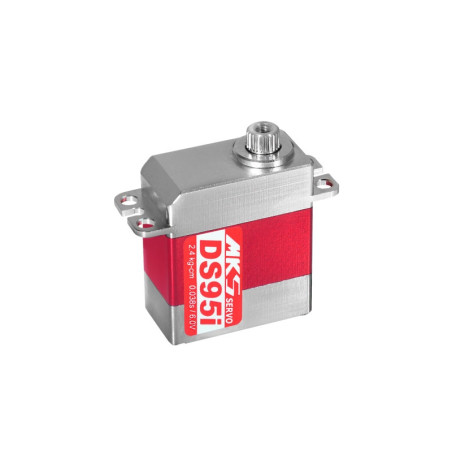

MKS Servo Digital Micro DS95i (0.038s/60°, 2.4kg.cm)
Ultra high speed 21g digital narrowband (760µs) micro servo w. metal gears; input voltage 4.8-6.0V, 2xBB. Ideal for tail rotors of mini helicopters, compatible with most of gyro and flybarless systems. Torque 1.92kg.cm, speed 0.047s/60° at 4.8V, torque 2.40kg.cm, speed 0.038s/60° at 6.0V. Aluminium case for perfect heat dissipation. Dimensions 23x12x27.25mm, weight 21.21g. Non-programmable.

Servo dimensions Micro
Servo type Digital
Programmable No
Thrust at 4.8V [kg·cm] 1.92
Thrust at 6.0V [kg·cm] 2.4
Speed at 4.8V [s/60st.] 0.047
Speed at 6.0V [s/60st.] 0.038
Control pulse width in neutral [µs] 760
Frame Rate [Hz] 560
Deadband [ms] 0.0005
Servo gears Metal
Ball bearings 2×
High-voltage No
Power supply [V] 4.8 - 7
Length [mm] 23
Width [mm] 12
Height [mm] 27.25
Weight [g] 21.21
Intended for Aeroplanes,Helicopters
