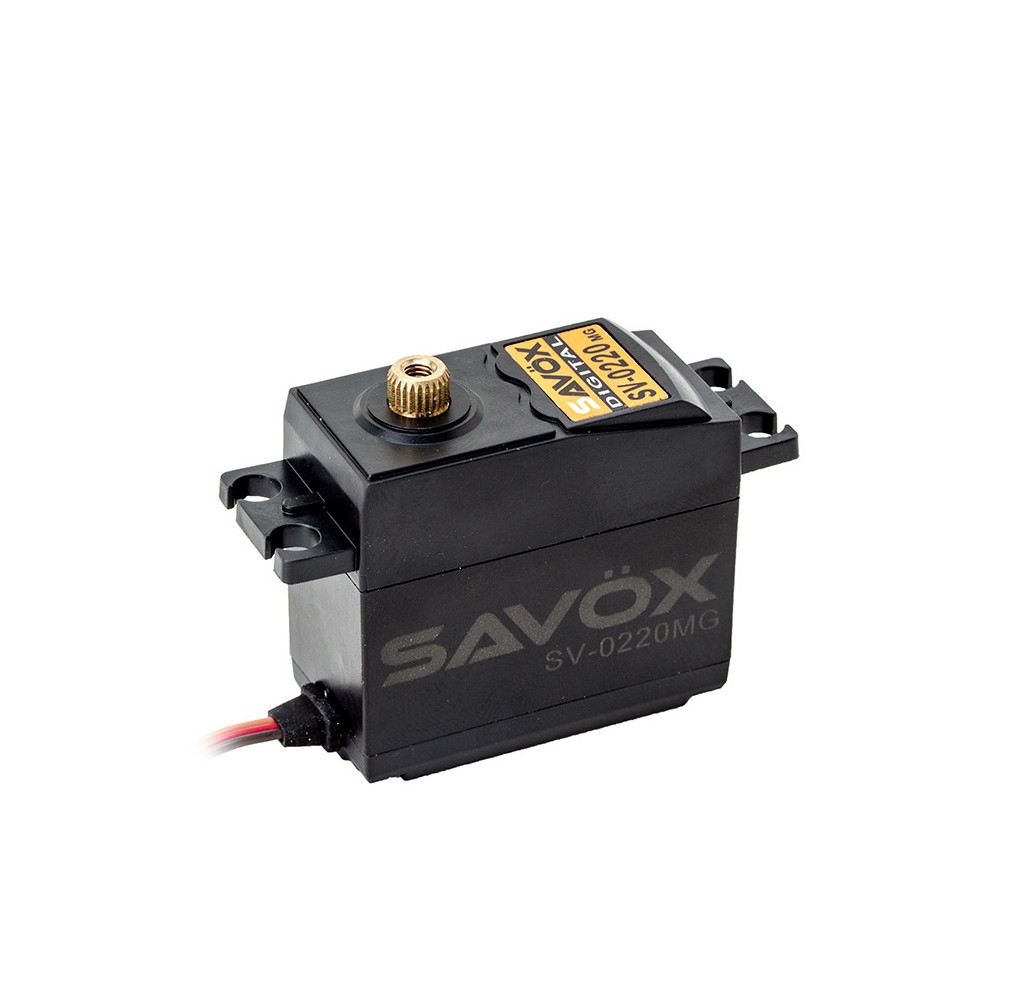

SAVÖX SV-0220MG SERVO
New + version with soft start, Sanwa SSR mode
Dimensions (L/W/H): 40.7 x 20 x 37 mm Weight: 64 grams
0.11/0.13 sec/60 degrees and 8/10 kg*cm at 7.4/8.4 volts
High-voltage digital servo with soft start
Possible application examples: Upgrade for the installed steering/throttle servos in RTR vehicles, gas/choke servo large models

DESCRIPTION
The SV-0220+ is a very reliable standard size servo which is very suitable for use in RC cars and airplanes.

The new + version of the well-known SV-0220 servo differs slightly from its predecessor both visually and technically. A soft start, which slowly moves the servo to the starting position when switched on, and the Sanwa SSR mode characterize the + version.

CHARACTERISTICS
Operating time S2/60° (sec): 0.11
Operating time S1/60° (sec): 0.13
Actuating force S2 (kg*cm): 10
Width (mm): 20
Height (mm): 37
Voltage range: 4.8V-8.4V
Length (mm): 40.7
Weight (g): 59
Actuating force S1 (kg*cm): 8th
Control frequency: Up to 333Hz, 1520us center pulse
High-voltage capable up to 8.4V: Yes
Recommended use: Helicopter, plane, car
Housing type: plastic
Ball bearings (number): 2
Engine type: Bell armature motor
Gear type: metal
Output teeth (number): 25
Voltage 1 (Volt): 7.4
Voltage 2 (Volts): 8.4
Classification: default
