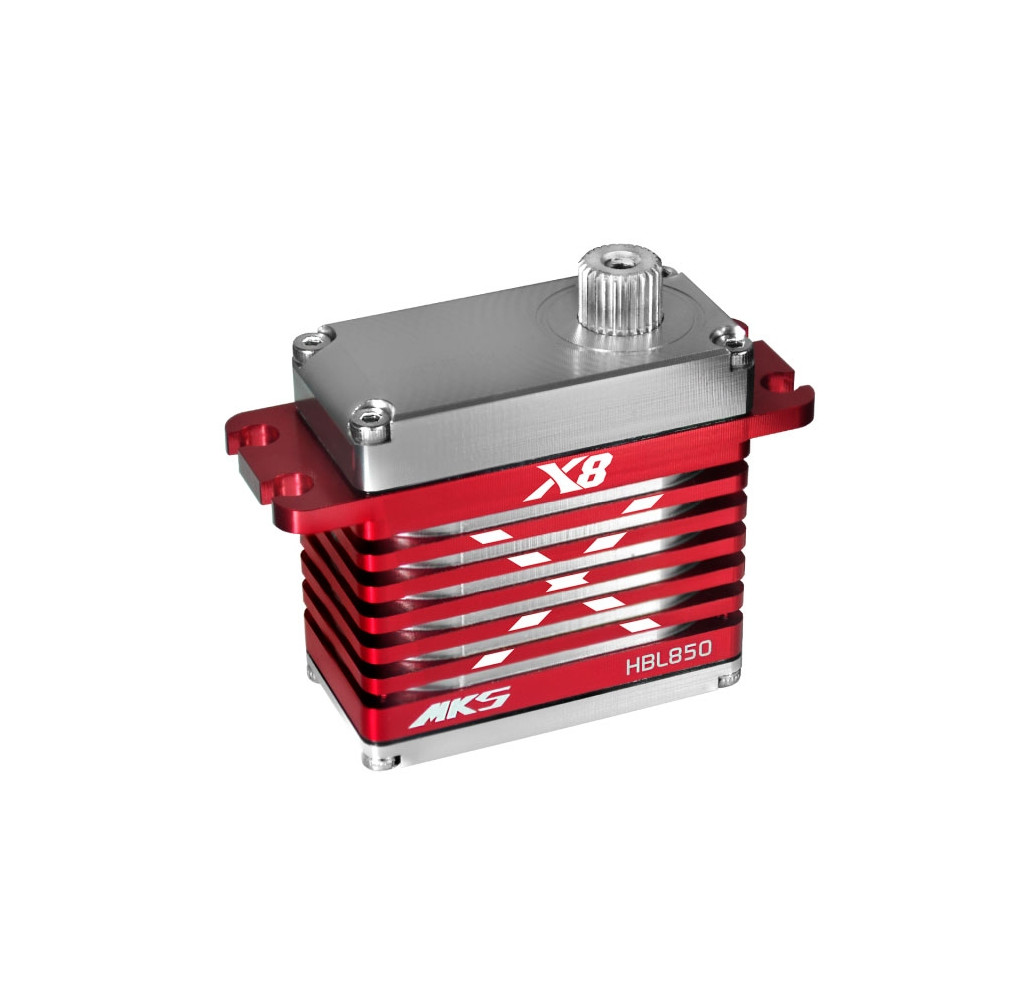

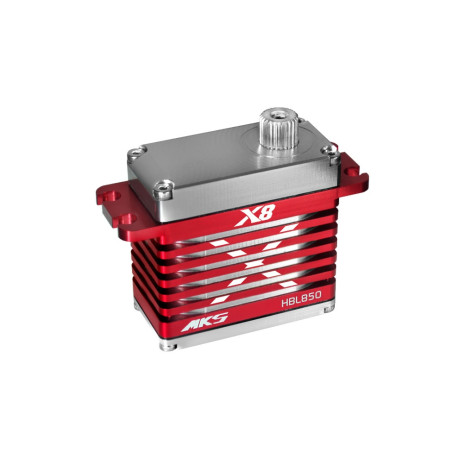

MKS Servo Digital Standard HBL850 (0.071s/60°, 24.9kg.cm)
Super high torque/super high speed 73g HV digital brushless standard servo w. metal gears; input voltage 6.0-8.4V, 2xBB. Ideal for cyclic of 700-800 class helicopters. Torque 18.2kg.cm, speed 0.100s/60° at 6.0V, torque 22.5kg.cm, speed 0.079s/60° at 7.4V, torque 24.9kg.cm, speed 0.071s/60° at 8.2V. Aluminium case w. CNC milled heatsink for perfect heat dissipation. Dimensions 40x20x35.5mm, weight 73g. Programmable with DSP-1 programmer.

Servo dimensions Standard
Servo type Digital
Programmable Yes
Thrust at 6.0V [kg·cm] 18.2
Thrust at 7.4V [kg·cm] 22.5
Torque at 8.2 V [kg·cm] 24.9
Speed at 6.0V [s/60st.] 0.1
Speed at 7.4V [s/60st.] 0.079
Speed at 8.2 V [s/60st.] 0.071
Control pulse width in neutral [µs] 1520
Frame Rate [Hz] 333
Deadband [ms] 0.0008
Servo gears Metal
Ball bearings 2×
High-voltage Yes
Power supply [V] 6 - 8.4
Length [mm] 40
Width [mm] 20
Height [mm] 38.5
Weight [g] 73
Intended for Aeroplanes,Helicopters
