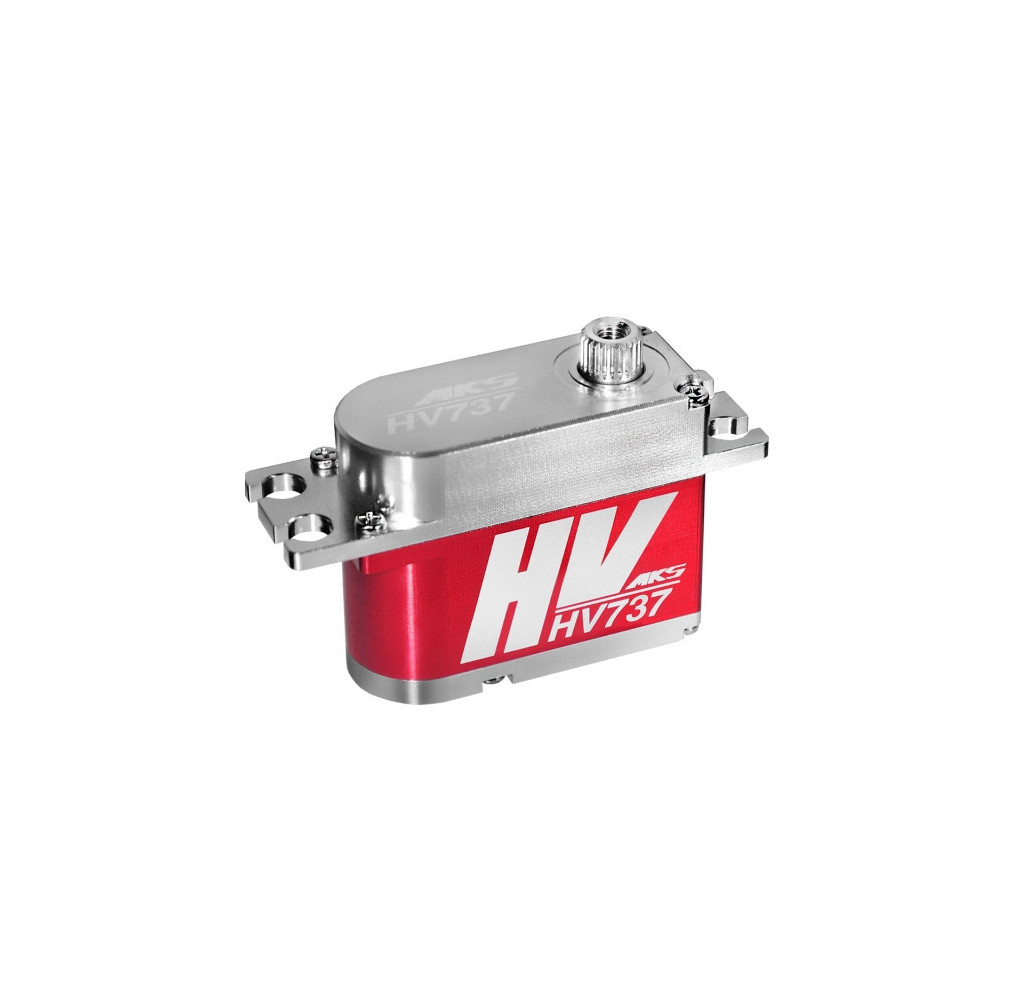

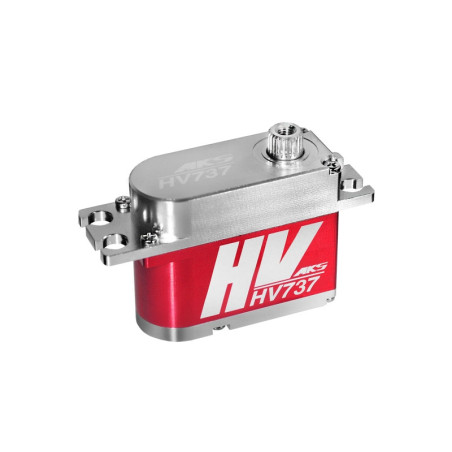

MKS Servo Digital Mini HV737 (0.09s/60°, 10.2kg.cm)
High torque/very high speed 39g HV digital mini servo w. metal gears; input voltage 6.0-8.4V, 2xBB. Ideal for gliders and smaller aerobatic/scale model aeroplanes. Torque 8.3kg.cm, speed 0.12s/60° at 6.0V, torque 9.1kg.cm, speed 0.10s/60° at 7.4V, torque 10.2kg.cm, speed 0.09s/60° at 8.2V. Dimensions 35.5x15x28.5mm, weight 38.55g. Aluminium case for perfect heat dissipation. Programmable with DSP-1 programmer.

Servo dimensions Mini
Servo type Digital
Programmable Yes
Thrust at 6.0V [kg·cm] 8.3
Thrust at 7.4V [kg·cm] 9.1
Torque at 8.2 V [kg·cm] 10.2
Speed at 6.0V [s/60st.] 0.12
Speed at 7.4V [s/60st.] 0.1
Speed at 8.2 V [s/60st.] 0.09
Control pulse width in neutral [µs] 1520
Frame Rate [Hz] 333
Deadband [ms] 0.001
Servo gears Metal
Ball bearings 2×
High-voltage Yes
Power supply [V] 6 - 8.4
Length [mm] 35.5
Width [mm] 15
Height [mm] 28.5
Weight [g] 38.55
Intended for Aeroplanes,Helicopters,Boats
