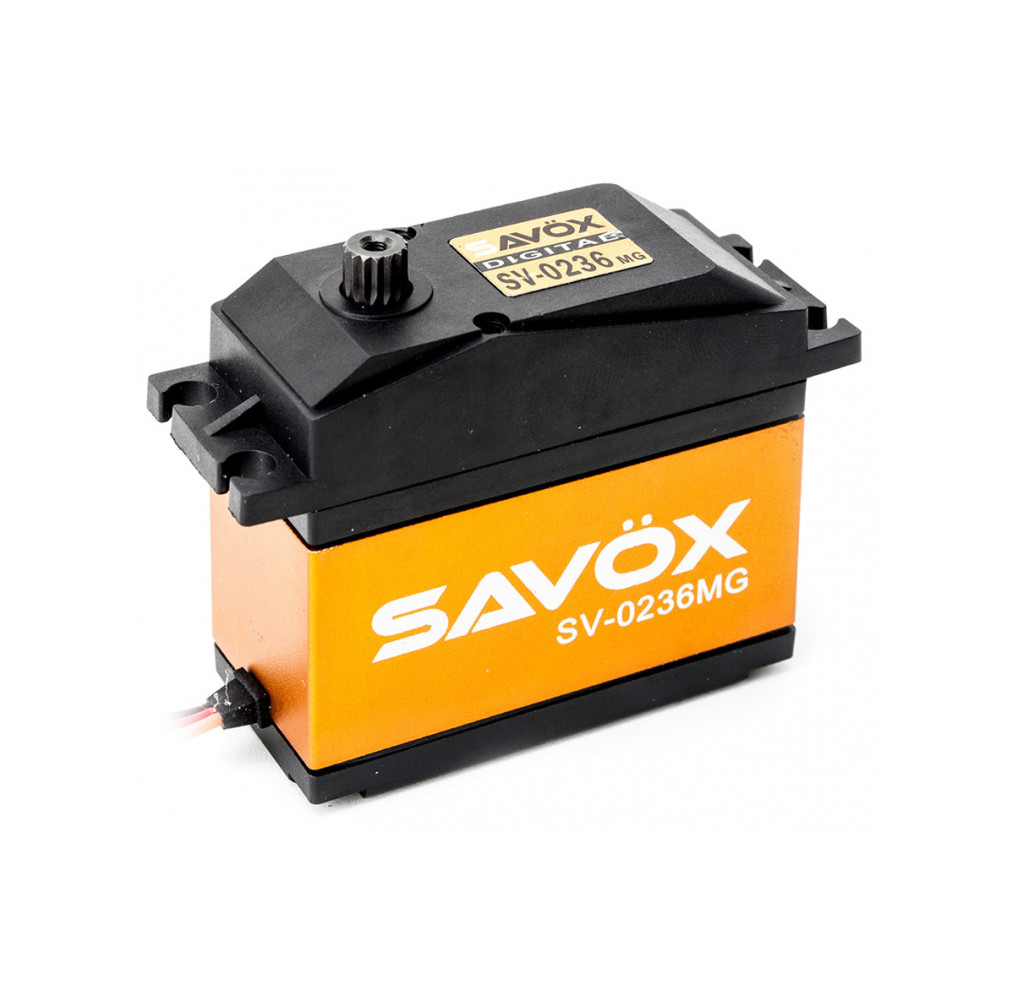

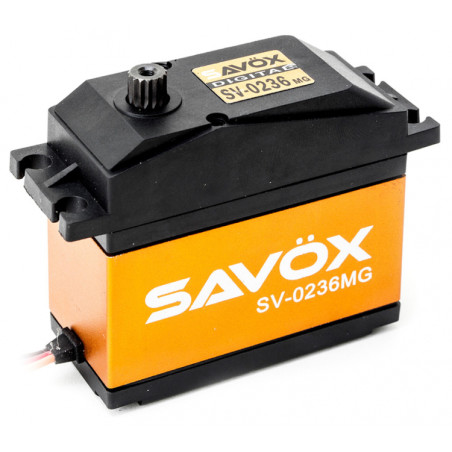

SV-0236MG Servo 40Kg 0,17s HV Alu Metal Gear Giant*
Features:
Ideal for 1/5 scale off road and large scale aircraft applications
Strong metal gear train for added durability
Extremely high torque output
Capable of operating on high voltage

Specifications:
Torque @6v: 30.0kg
Torque @7.4v: 40.0kg
Speed @6v: 0.21 sec/60 deg
Speed @7.4v: 0.17 sec/60 deg
Dimensions L x W x H: 65.8 x 30.0 x 57.4mm
Weight: 200g

Tech Details:
Operating Temperature: 14° - 122°F (-10° - 50°C)
Running Current (no load): 150mA @6.0V, 180mA @7.4V
Stall Current (at locked): 4600mA @6.0V, 5700mA @7.4V
Idle Current: 5mA @4.8V, 5mA @6.0V
Wire Length: 200 ± 5mm
Output Gear Spline: 15 Tooth
Bearings: 2BB
Operating Travel: 100° (1000 ? 2000 µ second)
Neutral Position: 1500 µ second
Pulse Width Range: 800 ? 2200 µ second
Maximum Travel: Appx 130° (900 ? 2100 µ second)
Refresh Rate: 240 Hz
Motor Type: Brushed
