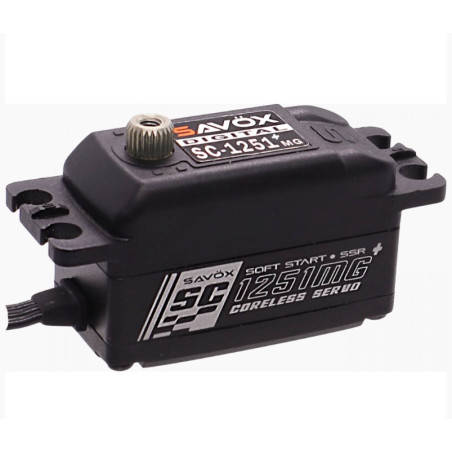

SAVÖX SC-1251MGSERVO BLACK EDITION
New + version with soft start, Sanwa SSR mode
Fast low-profile digital servo
Dimensions (L/W/H): 40.8 x 20.2 x 25.4 mm
0.10/0.09 sec/60 degrees and 7/9 kg*cm at 4.8/6.0 volts
Weight: 44.5 grams

DESCRIPTION
The SC-1251+ Black Edition is a fast, low-profile servo that is very suitable for use in RC cars. Of course, it can also be used in surface models if there is little installation depth available and a fast servo is required. Using them as swashplate servos in helicopters up to the 550 class is another option.
The new + version of the well-known SC-1251MG servo differs slightly from its predecessor visually and technically. A soft start, which slowly moves the servo to the starting position when switched on, and the Sanwa SSR mode characterize the + version.

CHARACTERISTICS
Operating time S2/60° (sec): 0.09
Operating time S1/60° (sec): 0.10
Width (mm): 20.2
Height (mm): 25.4
Voltage range: 4.8V-6V
Length (mm): 40.4
Weight (g): 44.5
Actuating force S1 (kg*cm): 7
Actuating force S2 (kg*cm): 9
Control frequency: Up to 333Hz, 1520us center pulse
High-voltage capable up to 8.4V: No
Voltage 1 (Volt): 4.8
Recommended use: Helicopter, plane, car, boat
Classification: Low profile
Ball bearings (number): 2
Voltage 2 (Volts): 6.0
Engine type: Bell armature motor
Gear type: metal
Housing type: Part metal
Output teeth (number): 25
