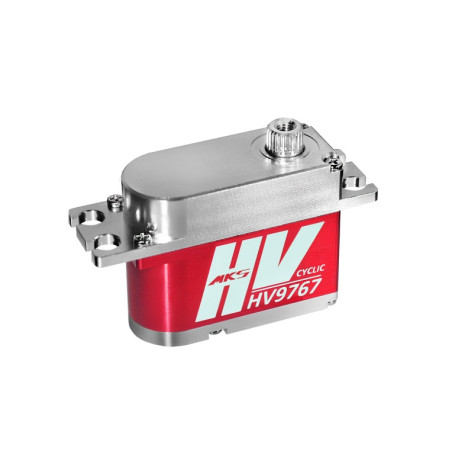

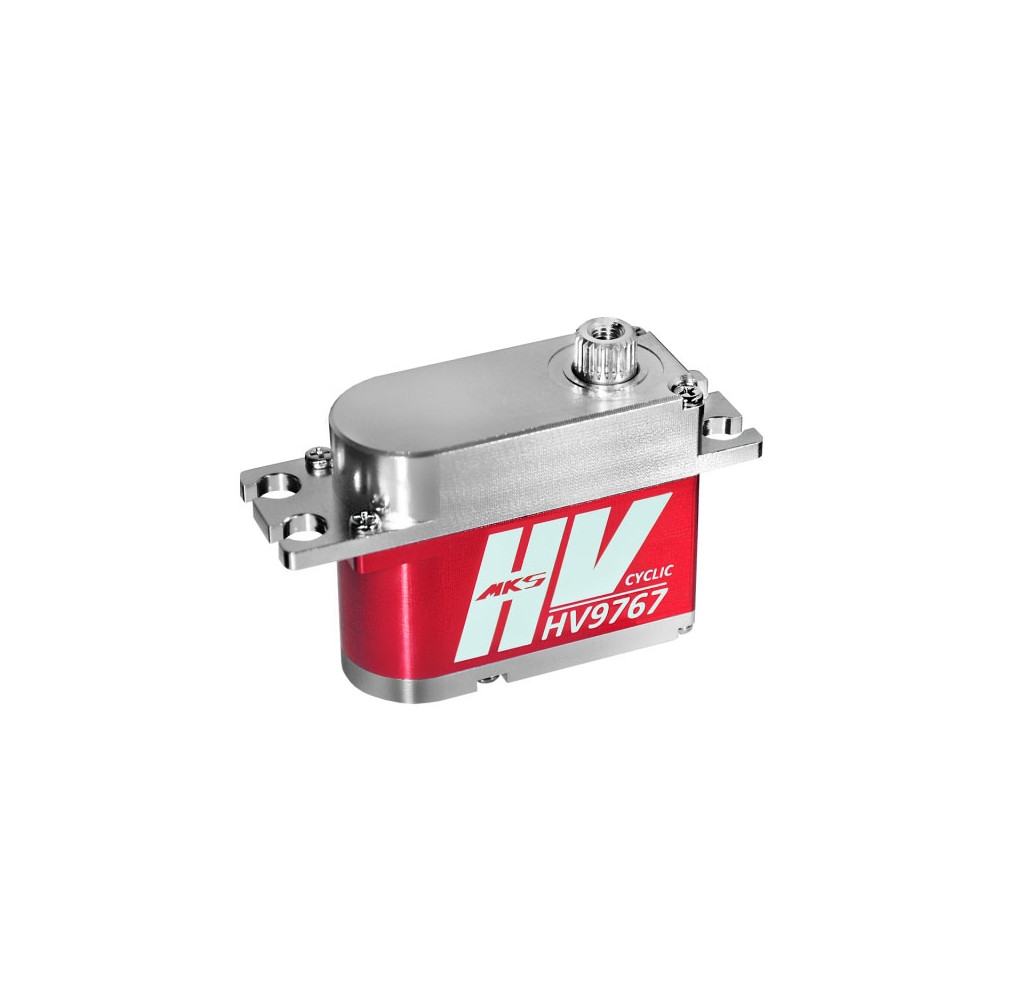

MKS Servo Mini Digital HV9767 (0.07s/60°, 9.4kg.cm)
Super high torque/super high speed 38.5g HV digital mini servo w. metal gears; input voltage 6.0-8.4V, 2xBB. Ideal for cyclic of 500-600 class helicopters. Torque 6.8kg.cm, speed 0.090s/60° at 6.0V, torque 8.5kg.cm, speed 0.078s/60° at 7.4V, torque 9.4kg.cm, speed 0.070s/60° at 8.2V. Aluminium case for perfect heat dissipation. Dimensions 35.5x15x28.55mm, weight 38.55g. Programmable w. DSP-1 programmer.

Servo dimensions Mini
Servo type Digital
Programmable Yes
Thrust at 6.0V [kg·cm] 6.8
Thrust at 7.4V [kg·cm] 8.5
Torque at 8.2 V [kg·cm] 9.4
Speed at 6.0V [s/60st.] 0.09
Speed at 7.4V [s/60st.] 0.078
Speed at 8.2 V [s/60st.] 0.07
Control pulse width in neutral [µs] 1520
Frame Rate [Hz] 333
Deadband [ms] 0.001
Servo gears Metal
Ball bearings 2×
High-voltage Yes
Power supply [V] 6 - 8.4
Length [mm] 35.5
Width [mm] 15
Height [mm] 28.55
Weight [g] 38.55
Intended for Aeroplanes,Helicopters
