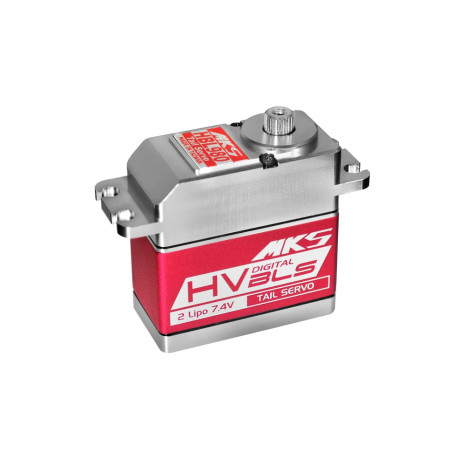

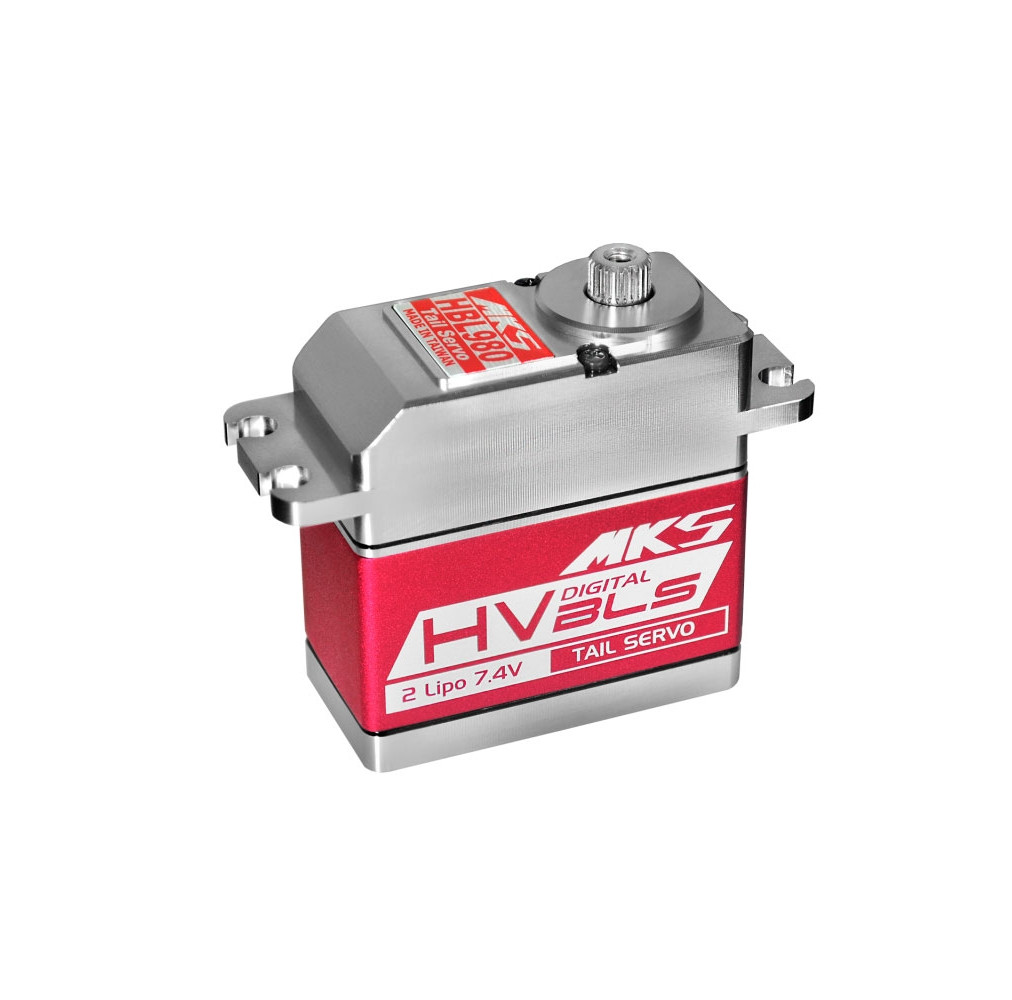

MKS Servo Digital Standard HBL980 (0.03s/60°, 6.2kg.cm)
Ultra high speed 70g HV digital narrowband (760µs) brushless standard servo w. metal gears; input voltage 6.0-8.4V, 2xBB. Ideal for tail rotors of 550-800 class helicopters, compatible with most of 760µs gyro and flybarless systems. Torque 4.5kg.cm, speed 0.040s/60° at 6.0V, torque 5.6kg.cm, speed 0.036s/60° at 7.4V, torque 6.2kg.cm, speed 0.030s/60° at 8.2V. Aluminium case for perfect heat dissipation. Dimensions 40x20x40mm, weight 70.29g. Non-programmable.

Servo dimensions Standard
Servo type Digital
Programmable No
Thrust at 6.0V [kg·cm] 4.5
Thrust at 7.4V [kg·cm] 5.6
Torque at 8.2 V [kg·cm] 6.2
Speed at 6.0V [s/60st.] 0.04
Speed at 7.4V [s/60st.] 0.036
Speed at 8.2 V [s/60st.] 0.03
Control pulse width in neutral [µs] 760
Frame Rate [Hz] 560
Deadband [ms] 0.0004
Servo gears Metal
Ball bearings 2×
High-voltage Yes
Power supply [V] 6 - 8.4
Length [mm] 40
Width [mm] 20
Height [mm] 40
Weight [g] 70.29
Intended for Helicopters
