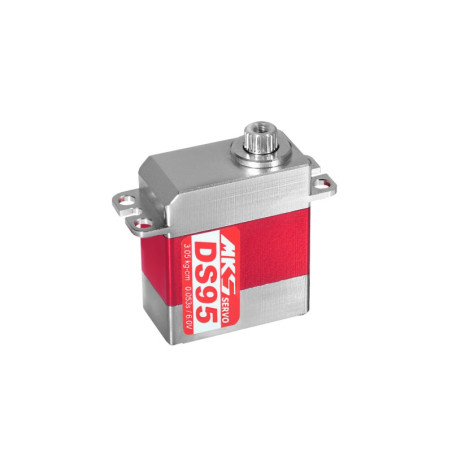

MKS Servo Digital Micro DS95 (0.053s/60°, 3.05kg.cm)
High torque/ultra high speed 21g digital micro servo w. metal gears; input voltage 4.8-6.0V, 2xBB. Ideal for cyclic of mini helicopters. Torque 2.44kg.cm, speed 0.066s/60° at 4.8V, torque 3.05kg.cm, speed 0.053s/60° at 6.0V. Aluminium case for perfect heat dissipation. Dimensions 23x12x27.25mm, weight 21.21g. Programmable with DSP-1 programmer.

Servo dimensions Micro
Servo type Digital
Programmable Yes
Thrust at 4.8V [kg·cm] 2.44
Thrust at 6.0V [kg·cm] 3.05
Speed at 4.8V [s/60st.] 0.066
Speed at 6.0V [s/60st.] 0.053
Control pulse width in neutral [µs] 1520
Frame Rate [Hz] 333
Deadband [ms] 0.001
Servo gears Metal
Ball bearings 2×
High-voltage No
Power supply [V] 4.8 - 7
Length [mm] 23
Width [mm] 12
Height [mm] 27.25
Weight [g] 21.21
Intended for Aeroplanes,Helicopters
