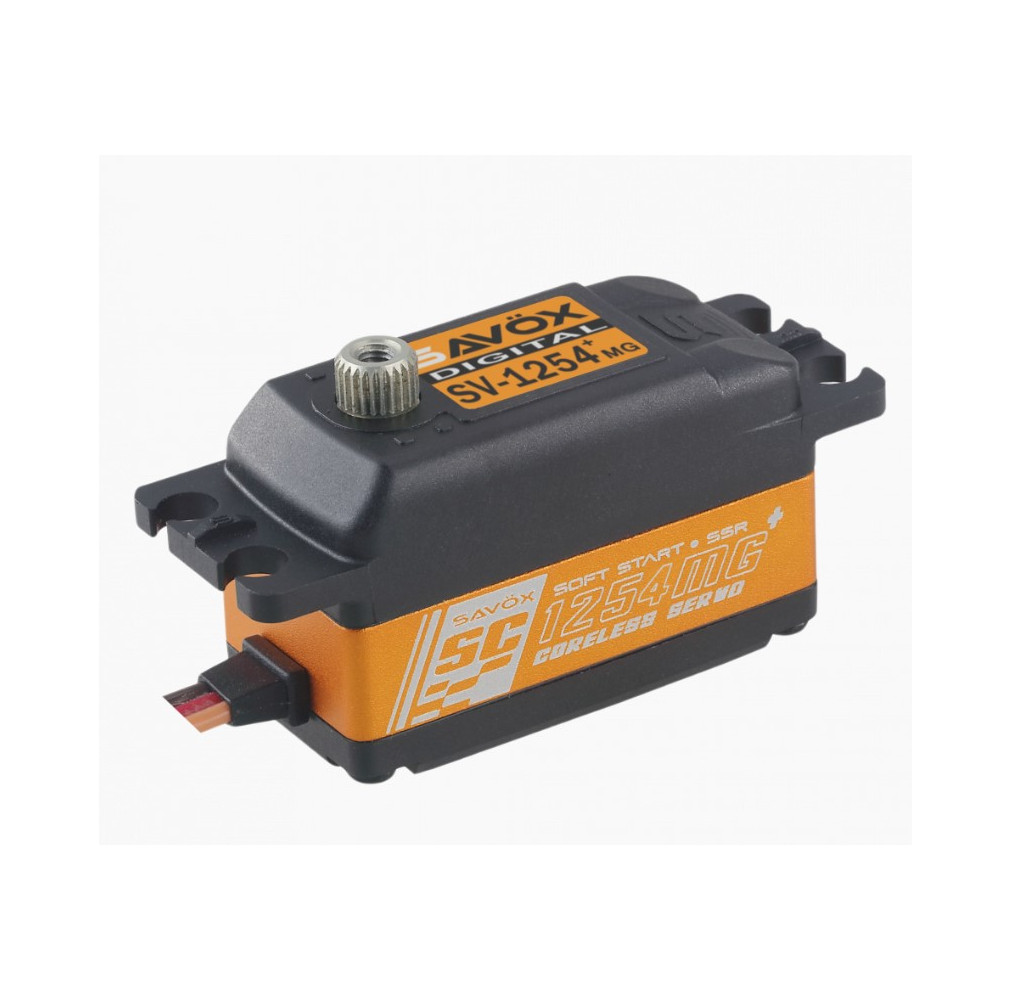

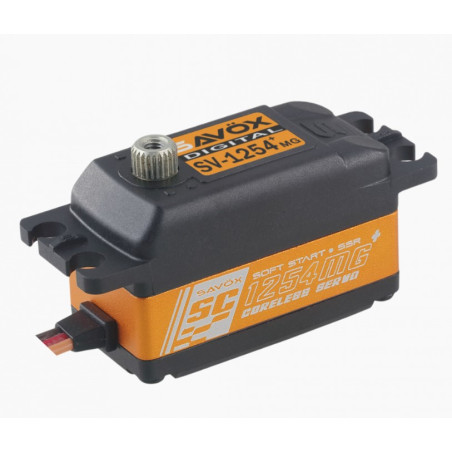

SAVÖX SV-1254MG SERVO
New + version with soft start, Sanwa SSR mode
Dimensions (L/W/H): 40.8 x 20.2 x 25.4 mm Weight: 46 grams
0.085/0.075 sec/60 degrees and 15/18 kg*cm at 7.4/8.4 volts
High-voltage low-profile servo 4.8-8.4V, operated on 2s LiPo
Possible application examples: Steering servo for RC cars, aircraft models with little overall depth


DESCRIPTION
The SV-1254MG+ is a powerful low-profile servo which is very suitable for use in fixed-wing models. Of course it can also be used in RC cars. Using them as swashplate servos for scale helicopters up to the 700 class is another option.

The new + version of the well-known SV-1254MG+ servo differs minimally from its predecessor both visually and technically. A soft start, which slowly moves the servo to the starting position when switched on, and the Sanwa SSR mode characterize the + version.

The technical data of the servo leaves nothing to be desired: 0.085/0.075 sec/60 degrees and 15/18 kg*cm at 7.4/8.4 volts,

control frequency up to 333Hz, center pulse 1520us

Like all HV servos from Savöx, the SV -1254MG+ can of course be operated with up to 8.4V!

Scope of delivery: Servo including servo lever and mounting screws


CHARACTERISTICS
Operating time S2/60° (sec): 0.075
Operating time S1/60° (sec): 0.085
Actuating force S1 (kg*cm): 15
Actuating force S2 (kg*cm): 18
Width (mm): 20.2
Height (mm): 25.4
Voltage range: 4.8V-8.4V
Length (mm): 40.8
Weight (g): 46
Control frequency: Control frequency up to 333Hz, center pulse 1520us
High-voltage capable up to 8.4V: Yes
Gear type: Metal, plastic
Recommended use: Helicopter, plane, car, boat
Classification: Low profile
Ball bearings (number): 2
Engine type: Bell armature motor
Housing type: Part metal
Output teeth (number): 25
Voltage 1 (Volt): 7.4
Voltage 2 (Volts): 8.4
