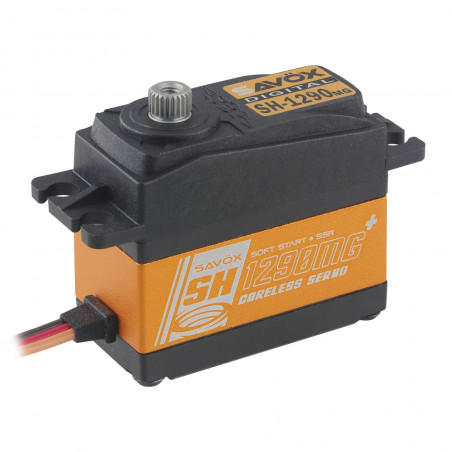

SAVÖX SH-1290MG SERVO
New + version with soft start, Sanwa SSR mode
Ultra-fast coreless digital servo, ideal as a tail servo or throttle servo
0.059/0.05 sec/60 degrees and 4/5 kg*cm at 4.8/6.0 volts
Dimensions (L/W/H): 40.3 x 20.0 x 37.2 mm
Weight: 56.4 grams

DESCRIPTION
The SH-1290MG+ is an extremely fast servo that is ideal for use on the tail rotor. Of course, it can also be used as a throttle servo in helicopters or fixed-wing models, or anywhere where speed is important.

The new + version of the well-known SH-1290MG+ servo differs slightly from its predecessor both visually and technically. A soft start, which slowly moves the servo to the starting position when switched on, and the Sanwa SSR mode characterize the + version.

The technical data of the servo leaves nothing to be desired: 0.059/0.05 sec/60 degrees and 4/5 kg*cm at 4.8/6 volts

control frequency up to 333Hz, center pulse 1520us

Scope of delivery: Servo including servo lever and fastening screws

CHARACTERISTICS
Operating time S2/60° (sec): 0.05
Operating time S1/60° (sec): 0.059
Width (mm): 20
Height (mm): 37.2
Actuating force S1 (kg*cm): 4
Voltage range: 4.8V-6V
Length (mm): 40.3
Actuating force S2 (kg*cm): 5
Weight (g): 56.4
Control frequency: Control frequency up to 333Hz, center pulse 1520us
High-voltage capable up to 8.4V: No
Voltage 1 (Volt): 4.8
Recommended use: Helicopter, plane, car
Ball bearings (number): 2
Voltage 2 (Volts): 6.0
Engine type: Bell armature motor
Gear type: metal
Housing type: Part metal
Output teeth (number): 25
Classification: default
