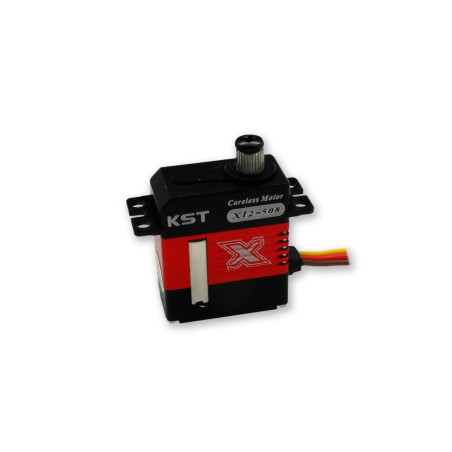

KST X12-508 V8.0 6.2kg.cm@8.4V
Description
KST X12-508 V8

Technical Details:
Operating Voltage [V]: 6.0-8.4

Torque [kgf.cm]@6.0V: 4.2
Torque [kgf.cm]@7.4V: 5.2
Torque [kgf.cm]@8.4V: 6.2

Response Time [s/60°]@6.0V: 0.09
Response Time [s/60°]@7.4V: 0.08
Response Time [s/60°]@8.4V: 0.07

Width [mm]: 12.0
Length [mm]: 23.0
Height [mm]: 27.5
Weight [g]: 20.0

Motor Type: Coreless
Frequency Range: 1520µs/333Hz, 1000µs-2000µs
Gear Type: Steel
Bearing Type: 2BB
Gear Ratio: 25T-5
Servo Type: Mini
Electronics: Digital
Position Sensor: Potentiometer
Waterproof: No
Soft start: Programmable
Programmable: Yes
Manufacturer: KST
Programmable with KST Tool 3 and KST Tool 5.

Please refer to the model manufacturer's servo specifications when selecting servos.
Characteristics
Operating voltage: 8.4V (HV)
Gearbox type / bearing: Hardened steel / 2 BB
Mounting tabs: Standing assembly
Engine type: Coreless
Position sensor: Potentiometer
Interlocking: 25T-5
