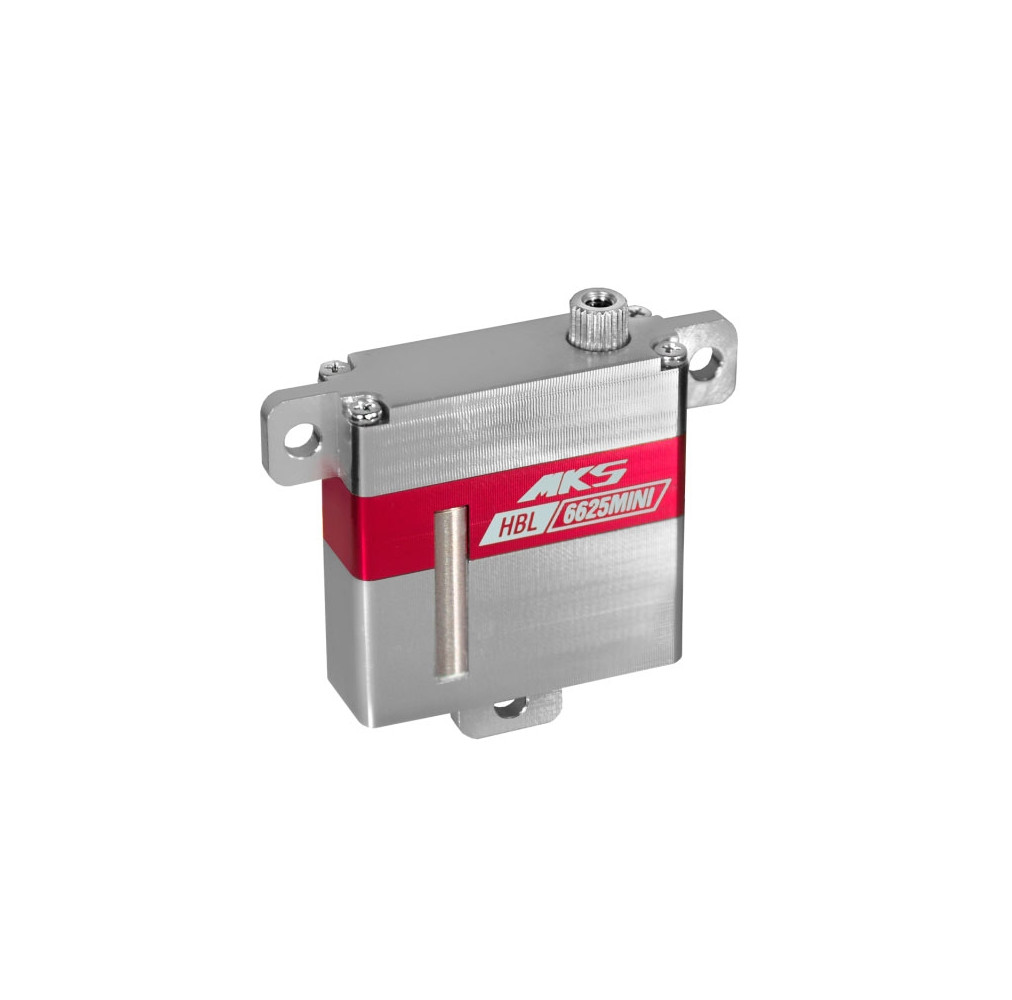

MKS Servo Digital Mini HBL6625MINI (0.10s/60°, 6.0kg.cm)
Very high torque/high speed 27g HV digital slim brushless mini servo w. metal gears; input voltage 6.0-8.4V, 2xBB. Ideal for wings of gliders and aerobatic/scale model aeroplanes. Torque 5.2kg.cm, speed 0.14s/60° at 6.0V, torque 5.6kg.cm, speed 0.11s/60° at 7.4V, torque 6.0kg.cm, speed 0.10s/60° at 8.2V. Dimensions 33x10x30.5mm, weight 26.97g. Aluminium case for perfect heat dissipation; with flat mounting lugs. Programmable with DSP-1 programmer.

Servo dimensions Mini
Servo type Digital
Programmable Yes
Thrust at 6.0V [kg·cm] 5.2
Thrust at 7.4V [kg·cm] 5.6
Torque at 8.2 V [kg·cm] 6
Speed at 6.0V [s/60st.] 0.14
Speed at 7.4V [s/60st.] 0.11
Speed at 8.2 V [s/60st.] 0.1
Control pulse width in neutral [µs] 1520
Frame Rate [Hz] 333
Deadband [ms] 0.001
Servo gears Metal
Ball bearings 2×
High-voltage Yes
Power supply [V] 6 - 8.4
Length [mm] 33
Width [mm] 10
Height [mm] 30.5
Weight [g] 26.97
Intended for Aeroplanes
