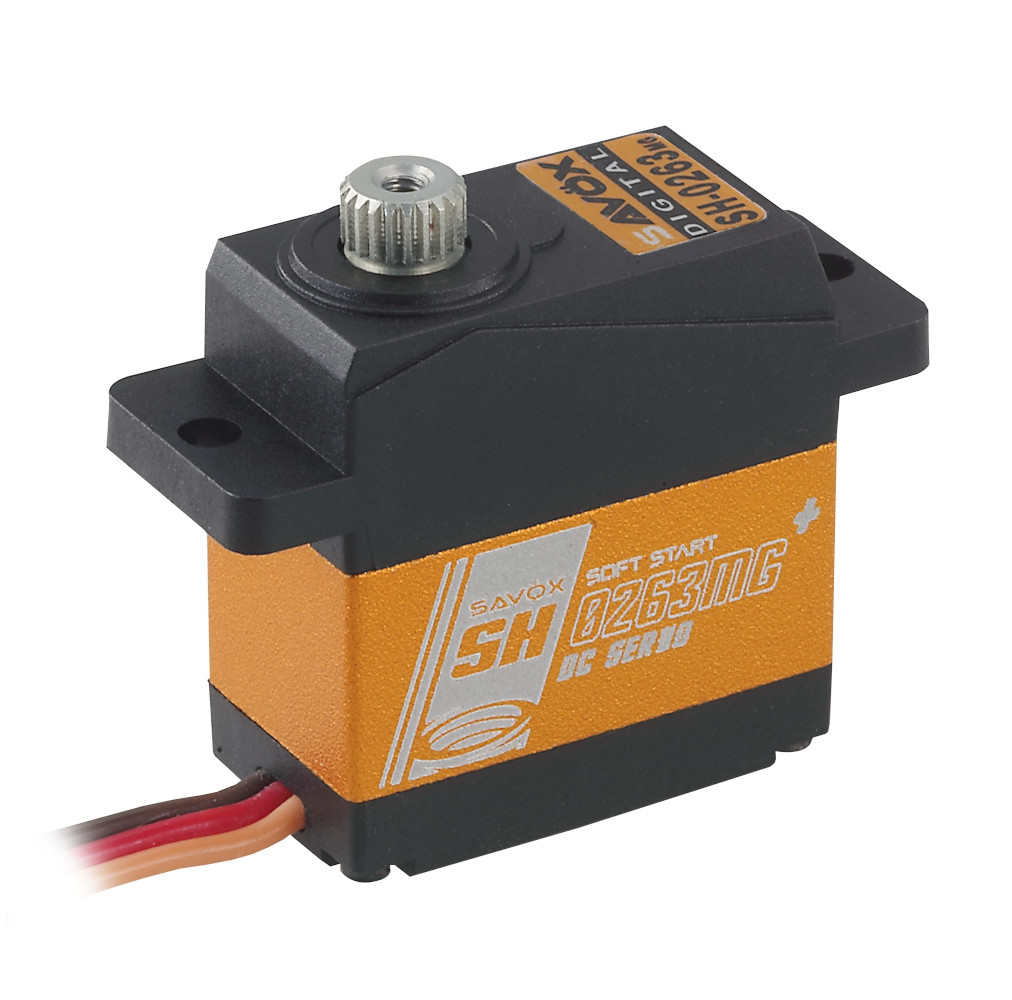

SAVÖX SH-0263MG SERVO
New + version with soft start, Sanwa SSR mode
Mini digital servo for a wide range of purposes, e.g. as a swashplate servo for mini / micro helicopters or small model aircraft
Dimensions (L/W/H): 22.8 x 12.0 x 25.4 mm
0.14/0.10 sec/60 degrees and 1.8/2.2 kg*cm at 4.8/6.0 volts
Weight: 15 grams, 2x ball bearings


DESCRIPTION
The SH-0263+ is a mini size servo which is very suitable for use on the swashplate of small helicopters. Of course it can also be used in other areas such as small model aircraft.

The SH-0263+ is ideal when reliability and control power are important in small dimensions. The robust metal gear can also handle heavier loads.

The new + version of the well-known SH-0263+ servo differs slightly from its predecessor both visually and technically. A soft start, which slowly moves the servo to the starting position when switched on, and the Sanwa SSR mode characterize the + version.

Up to 333Hz, 1520us center pulse (up to a maximum of 200Hz is recommended in order not to shorten the service life unnecessarily)


CHARACTERISTICS
Operating time S2/60° (sec): 0.10
Operating time S1/60° (sec): 0.14
Actuating force S1 (kg*cm): 1.8
Width (mm): 12
Weight (g): 15
Actuating force S2 (kg*cm): 2.2
Length (mm): 22.8
Height (mm): 25.4
Voltage range: 4.8V-6V
Control frequency: Up to 333Hz, 1520us center pulse (up to a maximum of 200Hz is recommended in order not to shorten the service life unnecessarily)
High-voltage capable up to 8.4V: No
Voltage 1 (Volt): 4.8
Engine type: brush motor
Recommended use: Helicopter, plane, car, boat
Ball bearings (number): 2
Output teeth (number): 21
Voltage 2 (Volts): 6.0
Gear type: metal
Housing type: Part metal
Classification: Mini
