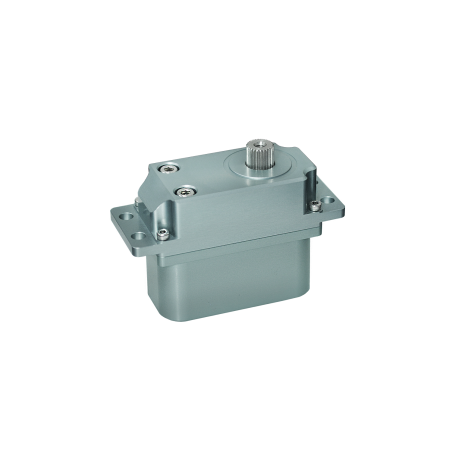

P500 Zeus Servo 9-15V 70kg-cm
P500 Zeus Servo 9-15V 70kg-cm
The P500 series has fast reaction and instantaneous powerful torque, which is suitable for the unmanned helicopters that require fast steering and high-speed response.
Servo
Operating voltage 9.0 ~ 15 V DC Volts
Max. torque 686 Ncm (972 oz-in) (70 kg-cm)
Continuous torque 98 Ncm (138.8 oz-in) (10 kg-cm)
Weight 133.5 g (4.709 oz)
Max. Travel angle 120°±0.5° (default)
Signal Standard : PWM / DroneCAN (UAVCAN V.0) Custom : RS232 / RS485
Motor Brushless Motor
Gear train Metal Alloy Gear
Case 6061 AluminumCNC Casing (Anodized)
