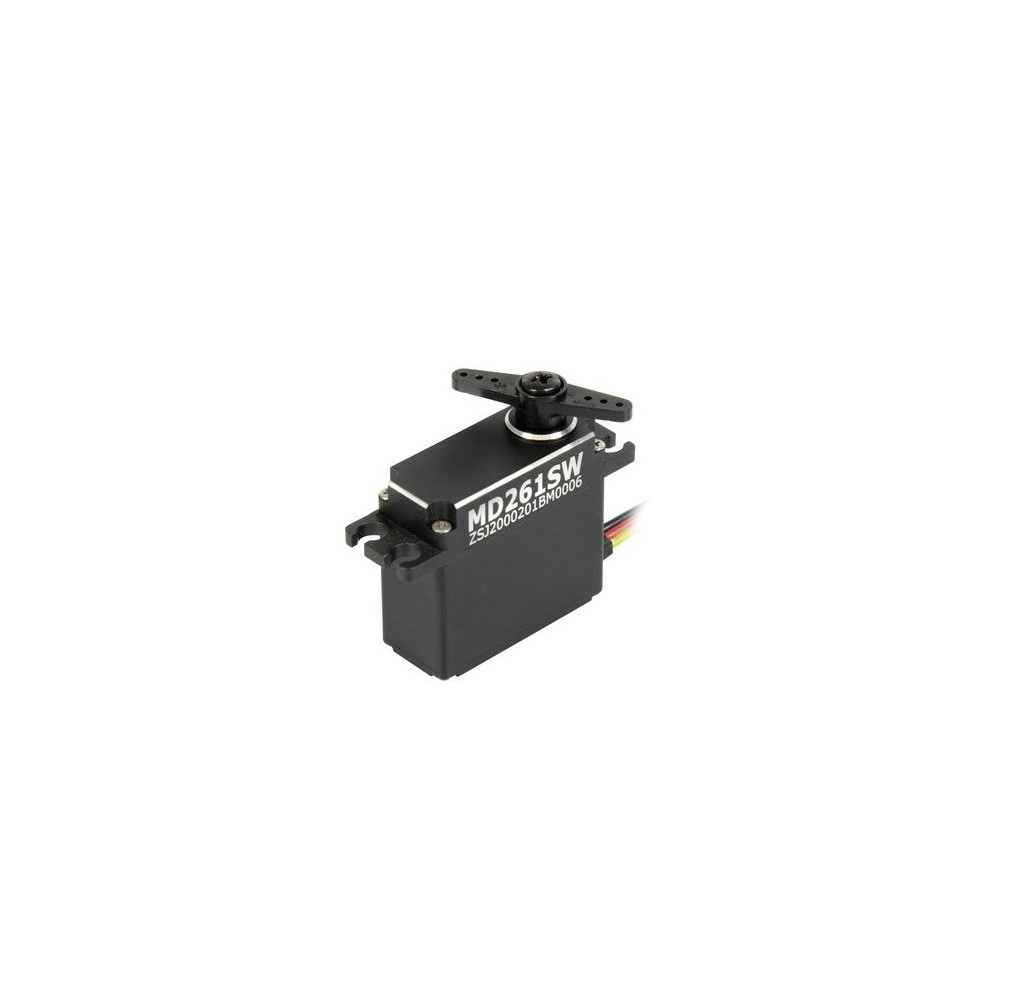

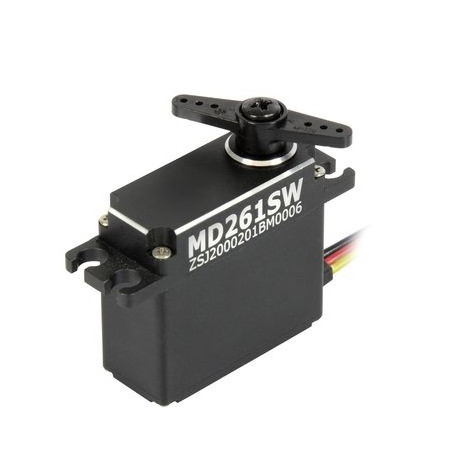

Hitec Servo MD261SW

Particularly strong 15mm servo!

In addition to the well-known D-series technology, which makes the servo fully programmable (details below),
this servo also comes with a magnetic encoder. This means contactless position recording, absolutely wear-free, infinite service life and extremely precise.
The MD261SW in the all-aluminum housing is the stronger version of the MD250MW and can be used from 4.8 to 8.4 volts. Thanks to its compact design, it can be used in many applications where power rather than speed is required.

Features:
• magnetic encoder/Hall sensor
• Best resolution of the servo travel available on the market.
• Finest response behavior
• programmable
• Full aluminum housing
• Particularly high actuating force
• Excellent holding power
• Metal gear
• 2 ball bearings MR106/MR85
• 25 toothing for servo horn

Programmable functions:
• Setting the end point (0°-320°), neutral (standard ± 60°)
• Setting the direction of rotation (clockwise/counterclockwise)
• Setting the dead zone
• Setting the speed (standard 100%)
• Setting soft start (standard 20%)
• Setting the fail-safe function
• Setting the overload protection (standard off)
• Factory settings can be restored
