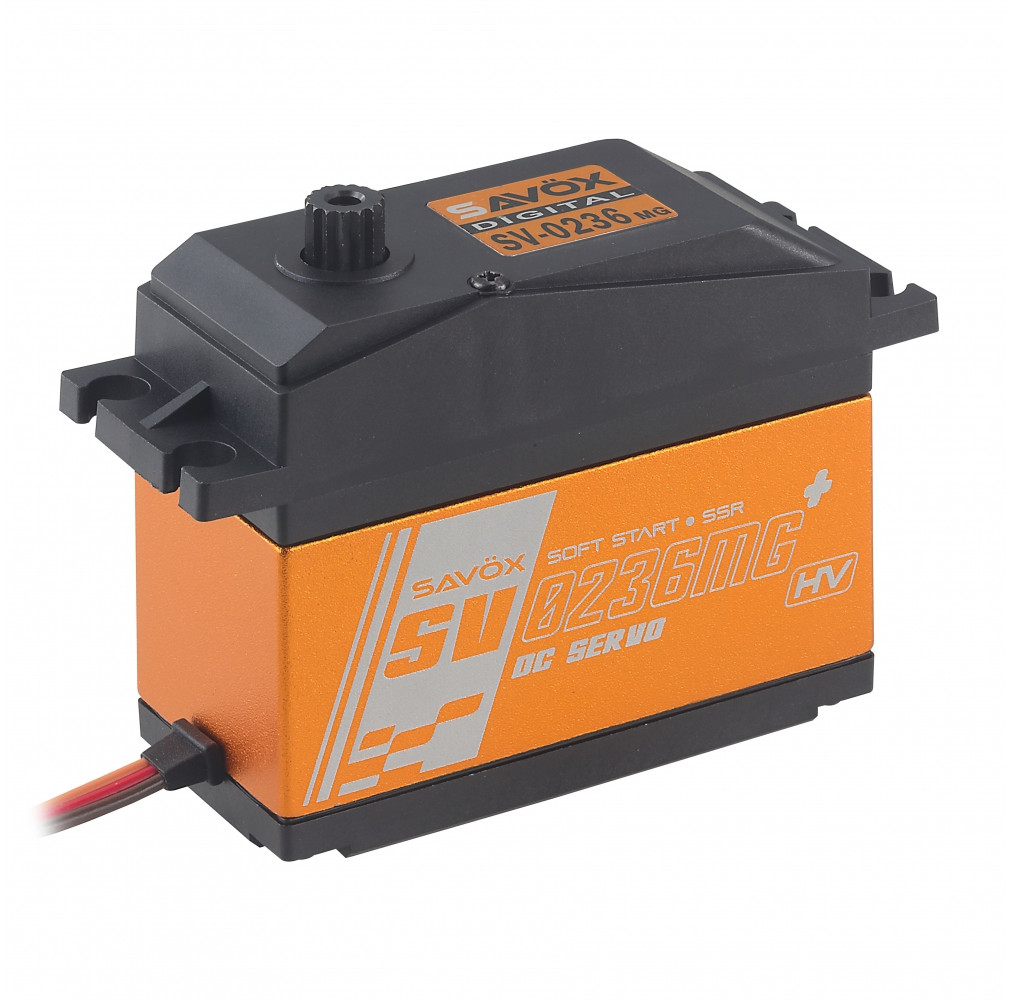

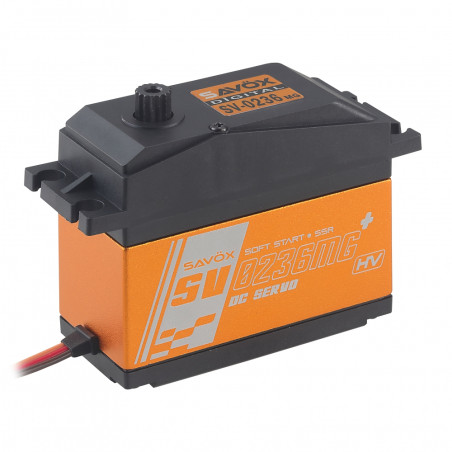

Savox SV-0236MG SERVO
New + version with soft start, Sanwa SSR mode
Powerful digital servo for large models, robust low-backlash metal gear ideal as a steering/throttle servo in buggy/truggy 1:5
0.21/0.17 sec/60 degrees and 30/40 kg*cmcm at 6.0/7.4 volts
Dimensions (L/W/H): 65.8 x 30.0 x 57.4 mm
Weight: 200 grams, 15 teeth output

DESCRIPTION
The SV-0236MG+ is a powerful, maxi size servo which is perfect as a steering/throttle servo in a 1:5 buggy/truggy. Of course, it can also be used in aircraft if an impact-resistant, robust servo is required, such as for the tow clutch or the landing gear.

The new + version of the well-known SV-0236MG+ servo differs slightly from its predecessor both visually and technically. A soft start, which slowly moves the servo to the starting position when switched on, and the Sanwa SSR mode characterize the + version.

The technical data of the servo leaves nothing to be desired: 0.21/0.17 sec/60 degrees and 30/40 kg*cm at 6.0/7.4 volts,

control frequency up to 333Hz, center pulse 1520us

Scope of delivery: Servo incl. Servo lever and mounting screws


CHARACTERISTICS
Operating time S2/60° (sec): 0.17
Operating time S1/60° (sec): 0.21
Weight (g): 200
Actuating force S1 (kg*cm): 30
Width (mm): 30
Voltage range: 4.8V-7.4V
Actuating force S2 (kg*cm): 40
Height (mm): 57.4
Length (mm): 65.8
Control frequency: Control frequency up to 333Hz, center pulse 1520us
Output teeth (number): 15
Engine type: brush motor
Recommended use: Helicopter, plane, car, boat
Ball bearings (number): 2
Voltage 1 (Volt): 6.0
Gear type: metal
Housing type: Part metal
Voltage 2 (Volts): 7.4
Classification: Large model servo
