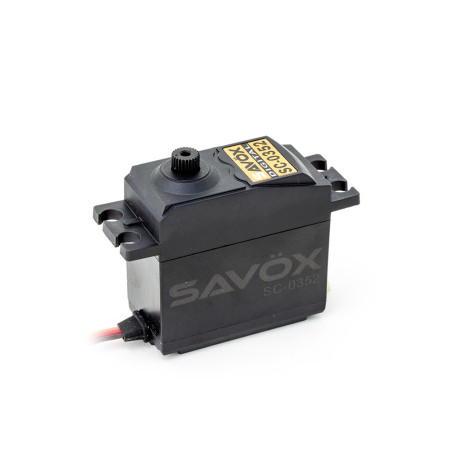

SAVÖX SC-0352 SERVO
Dimensions (L/W/H): 40.7 x 20.0 x 39.4 mm
Weight: 42 grams
0.14/0.11 sec/60 degrees and 42/65 Ncm at 4.8/6.0 volts
Digital servo
Possible application examples: Standard servo in model aircraft


DESCRIPTION
Digital servo
classification: Standard
Motor: Brush motor
Gear: Plastic
Number of teeth Output pinion: 25
Housing: Plastic
Number of ball bearings: 2
Actuating time (sec) at 60 degrees: 0.14 at 4.8 V and 0.11 at 6.0 V
Actuating force (kg ): 4.2 at 4.8 V and 6.5 at 6.0 V
Weight (gr): 42.0
Dimensions L/W/H (mm): 40.7 x 20.0 x 39.4
Scope of delivery: Servo including servo lever and fastening screws
Area of ??application: Helicopter, airplane, car, boat
Possible application examples: Standard servo in model aircraft

CHARACTERISTICS
Operating time S2/60° (sec): 0.11
Operating time S1/60° (sec): 0.14
Height (mm): 39.4
Actuating force S1 (kg*cm): 4.2
Weight (g): 42.0
Actuating force S2 (kg*cm): 6.5
Packaging: Blister large
High-voltage capable up to 8.4V: No
Voltage 1 (Volt): 4.8
Engine type: brush motor
Recommended use: Helicopter, plane, car, boat
Gear type: plastic
Housing type: plastic
Ball bearings (number): 2
Voltage 2 (Volts): 6.0
Output teeth (number): 25
Classification: default
