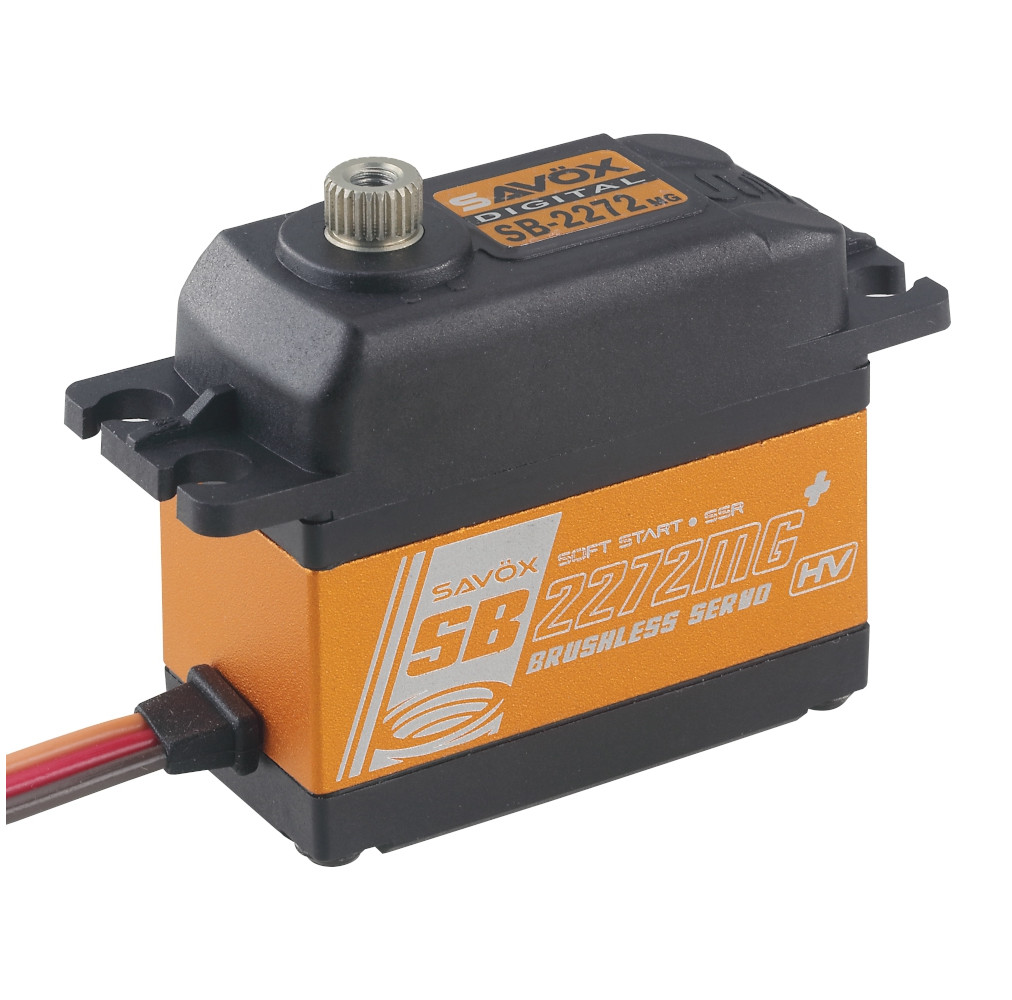

SAVÖX SB-2272MG SERVO
New + version with soft start, Sanwa SSR mode
Ultra-fast brushless digital servo, ideal as a tail servo
High-voltage capable 4.8-8.4V, operation on 2s LiPo
10kg*cm / 0.028sec 60° at 8.4V
Dimensions (L/W/H): 40.3 x 20.2 x 38.7 mm; Weight 66 grams


DESCRIPTION
The SB-2272MG+ is an extremely fast servo that is ideal for use on the tail rotor.

The new + version of the well-known SB-2272MG+ servo differs slightly from its predecessor both visually and technically. A soft start, which slowly moves the servo to the starting position when switched on, and the Sanwa SSR mode characterize the + version.

The technical data of the servo leaves nothing to be desired: 0.032/0.028 sec/60 degrees and 7/10 kg*cm at 6.0/8.4 volts,

control frequency up to 333Hz, center pulse 1520us

Like all HV servos from Savöx, the SB -2272MG+ can of course be operated with up to 8.4V!

Scope of delivery: Servo including servo lever and mounting screws


CHARACTERISTICS
Operating time S2/60° (sec): 0.028
Operating time S1/60° (sec): 0.032
Actuating force S2 (kg*cm): 10
Width (mm): 20.2
Height (mm): 38.7
Length (mm): 40.3
Weight (g): 66.0
Actuating force S1 (kg*cm): 7
High-voltage capable up to 8.4V: Yes
Packaging: default
Recommended use: Helicopter, plane, car
Ball bearings (number): 2
Gear type: metal
Housing type: Part metal
Output teeth (number): 25
Voltage 1 (Volt): 7.4
Engine type: Brushless motor
Voltage 2 (Volts): 8.4
Classification: default
