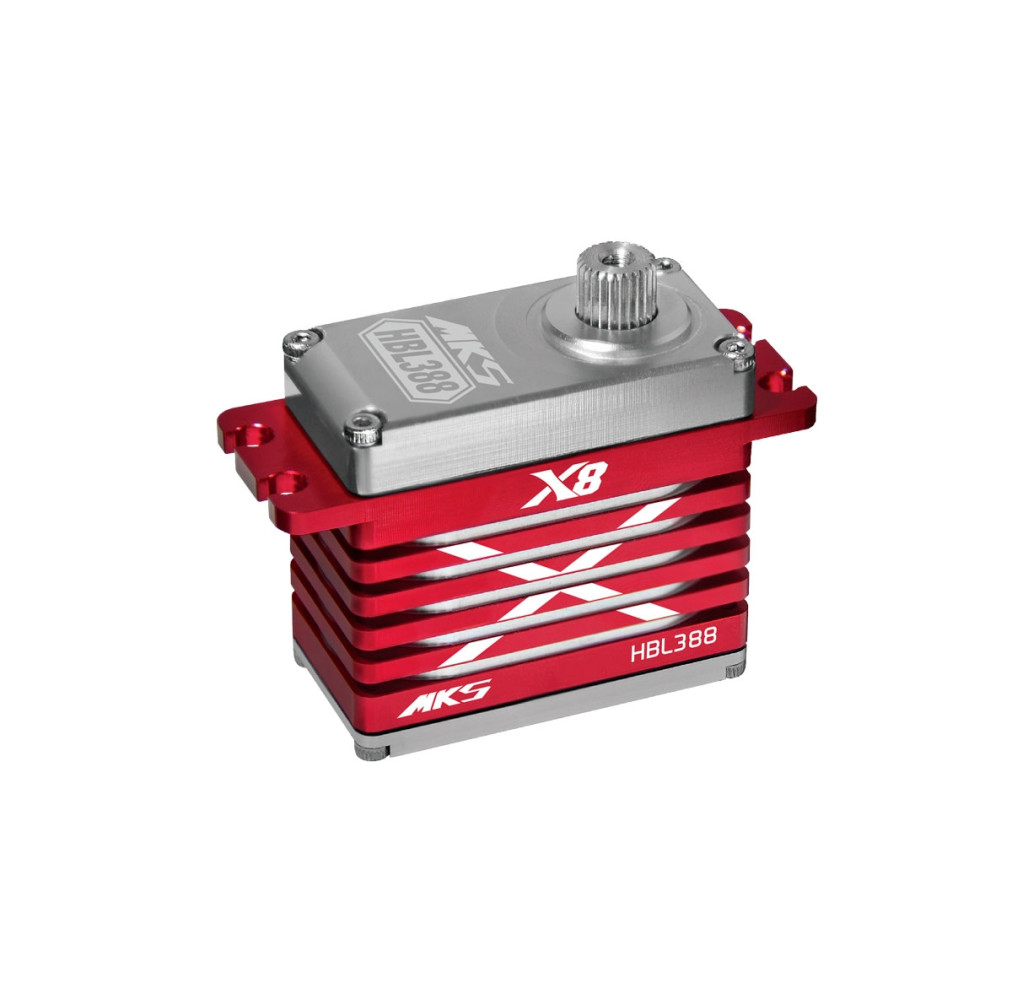

MKS Servo Digital Standard HBL388 (0.14s/60°, 68.0kg.cm)
Ultra high torque 93g HV digital standard brushless servo w. metal gears; input voltage 6.0-8.4V, 2xBB. Ideal for giant model aeroplanes. Torque 50.0kg.cm, speed 0.19s/60° at 6.0V, torque 60.0kg.cm, speed 0.16s/60° at 7.4V, torque 68.0kg.cm, speed 0.14s/60° at 8.2V. Aluminium case w. CNC milled heatsink for perfect heat dissipation. Dimensions 43x22x39.65mm, weight 93.3g. Programmable with DSP-1 programmer

Servo dimensions Standard
Servo type Digital
Programmable Yes
Thrust at 6.0V [kg·cm] 50
Thrust at 7.4V [kg·cm] 60
Torque at 8.2 V [kg·cm] 68
Speed at 6.0V [s/60st.] 0.19
Speed at 7.4V [s/60st.] 0.16
Speed at 8.2 V [s/60st.] 0.14
Control pulse width in neutral [µs] 1520
Frame Rate [Hz] 333
Deadband [ms] 0.0008
Servo gears Metal
Ball bearings 2×
High-voltage Yes
Power supply [V] 6 - 8.4
Length [mm] 43
Width [mm] 22
Height [mm] 39.65
Weight [g] 93.3
Intended for Aeroplanes
