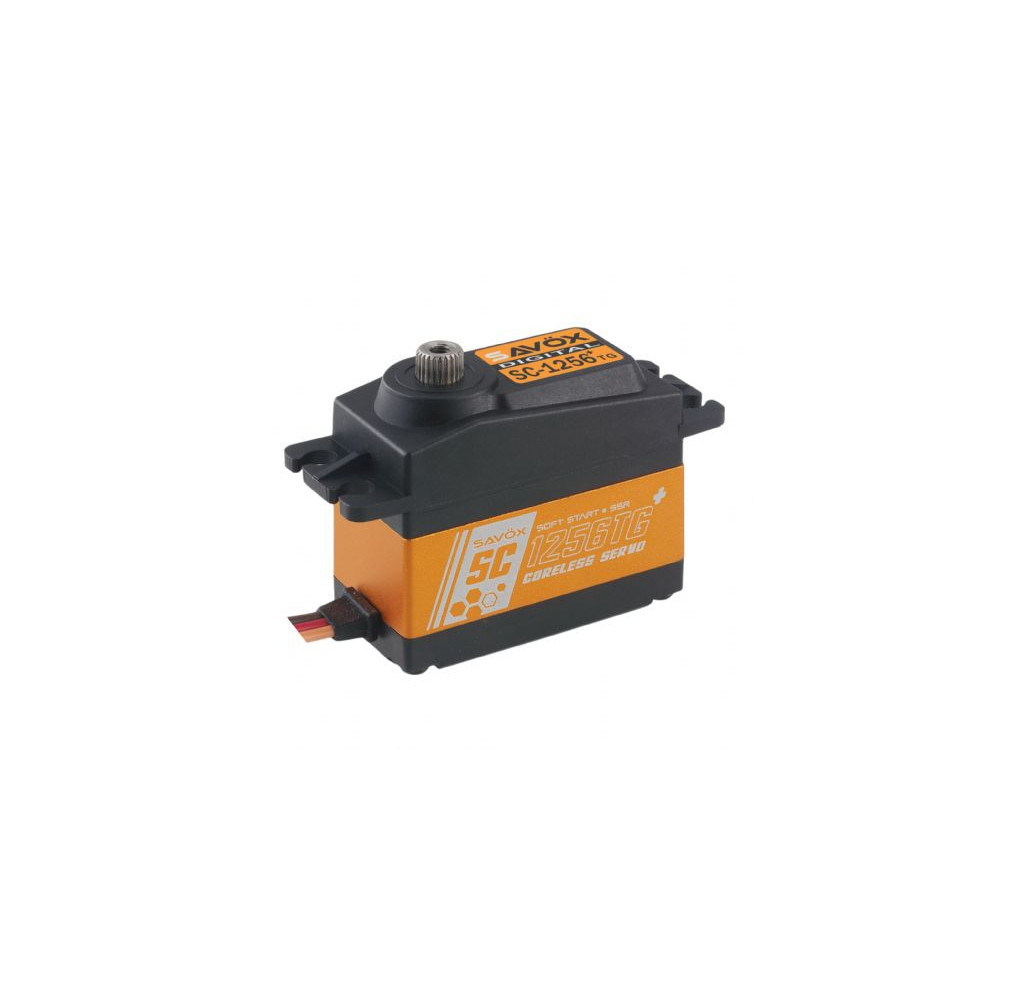

SAVÖX SC-1256TG SERVO
New + version with soft start, Sanwa SSR mode
Strong 20kg*cm digital servo, ideal for RC cars, robust low-backlash titanium gear
0.18/0.15 sec/60 degrees and 16/20 kg*cm at 4.8/6.0 volts
Dimensions (L/W/H): 40.3 x 20.2 x 37.2 mm Weight: 64 grams
Possible application examples: Steering/throttle servo in buggy/truggy


DESCRIPTION
The SC-1256TG+ is a strong and very reliable standard size servo which is very suitable for use in RC cars and helicopters.

The new + version of the well-known SC-1256TG servo differs slightly from its predecessor both visually and technically. A soft start, which slowly moves the servo to the starting position when switched on, and the Sanwa SSR mode characterize the + version.

The SC version of the 1256TG servo is specifically designed for use in RC cars. The C in SC stands for Car. The gearbox and software are optimized for this application; the low-backlash titanium gearbox is extremely robust and reliable.


CHARACTERISTICS
Operating time S2/60° (sec): 0.15
Operating time S1/60° (sec): 0.18
Actuating force S1 (kg*cm): 15
Actuating force S2 (kg*cm): 20
Width (mm): 20.2
Height (mm): 37.2
Voltage range: 4.8V-6V
Length (mm): 40.3
Weight (g): 64
Control frequency: Up to 333Hz, 1520us center pulse
High-voltage capable up to 8.4V: No
Voltage 1 (Volt): 4.8
Recommended use: Helicopter, car, boat
Ball bearings (number): 2
Voltage 2 (Volts): 6.0
Engine type: Bell armature motor
Housing type: Part metal
Output teeth (number): 25
Gear type: titanium
Classification: default
