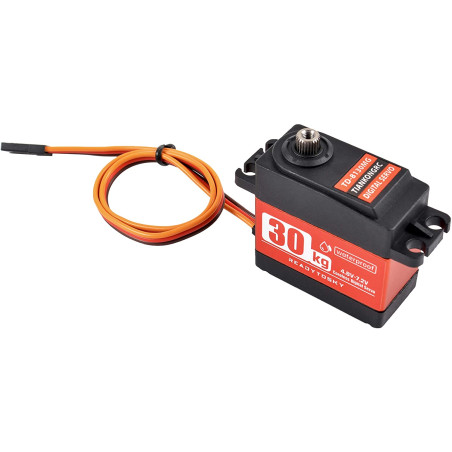

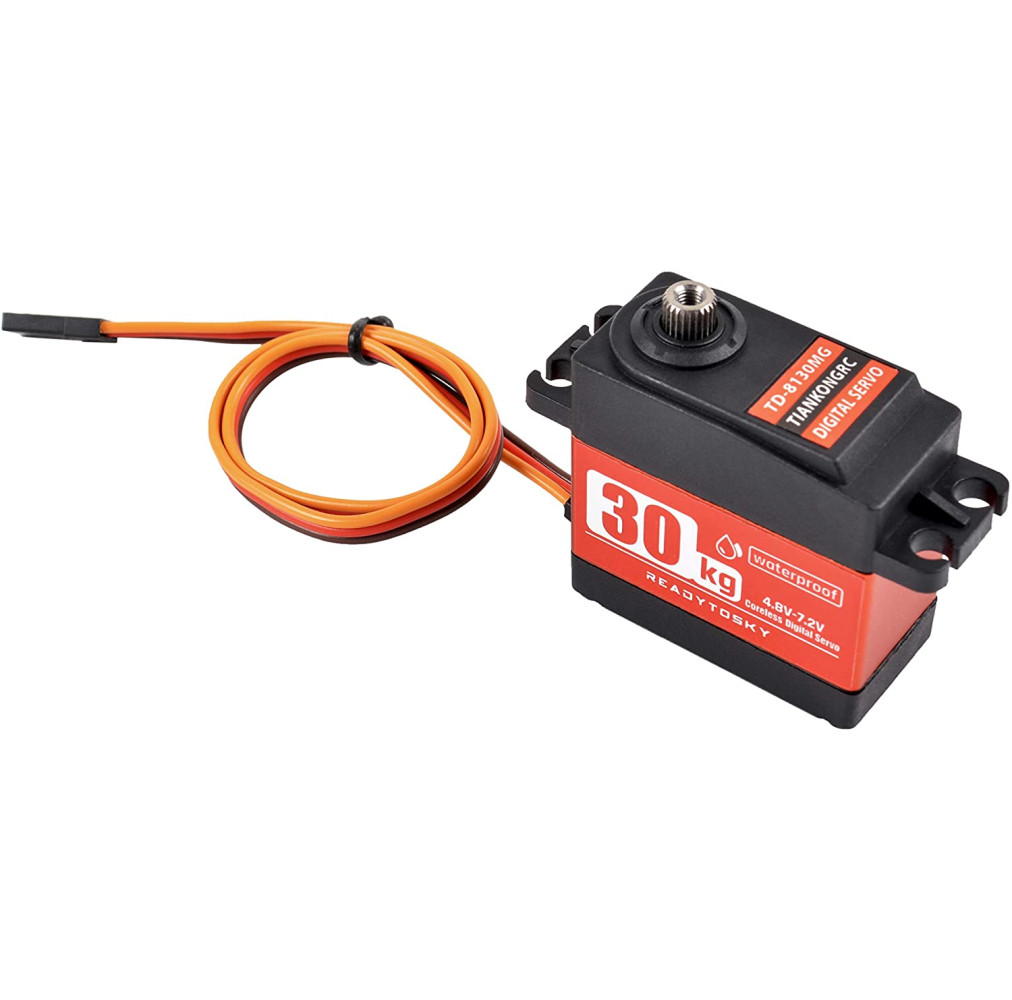

Servo Digital MG 30Kg 180º
CHARACTERISTICS
Dimension: 40.6mm x 20.4mm x 39mm
Net weight: 60g
Waterproof.

Mechanical specifications:
Gear Materials: Metal Pinions
Limit angle: 180
Connector cable length: 320 ± 5 mm.
Arm connector: 25T/25.9mm
Size: 40 x 20.5 x 40.5mm.
Electric specifications:
Operating voltage range: 4.8 to 7.2 V.
No-load speed: 0.22 sec/60°(4.8V) 0.18 sec/60°(7.2V)
Operating current: 160 mA (4.8 V); 220mA (7.2V).
Peak Torque: 28.5kg-cm (4.8V); 33.8 kg-cm (7.2 V).
Starting current: 2600 mA ± 10% (4.8 V); 3400 mA ± 10% (7.2 V).
Control specifications:
Command signal: pulse width modification.
Neutral position: 1500 µsec.
Dead band width: 5 µsec.
Operating degree: 180° ±3° (when 500-2500µsec).
Pulse width range: 500?2500 µsec
Mechanical angle: 180°.
