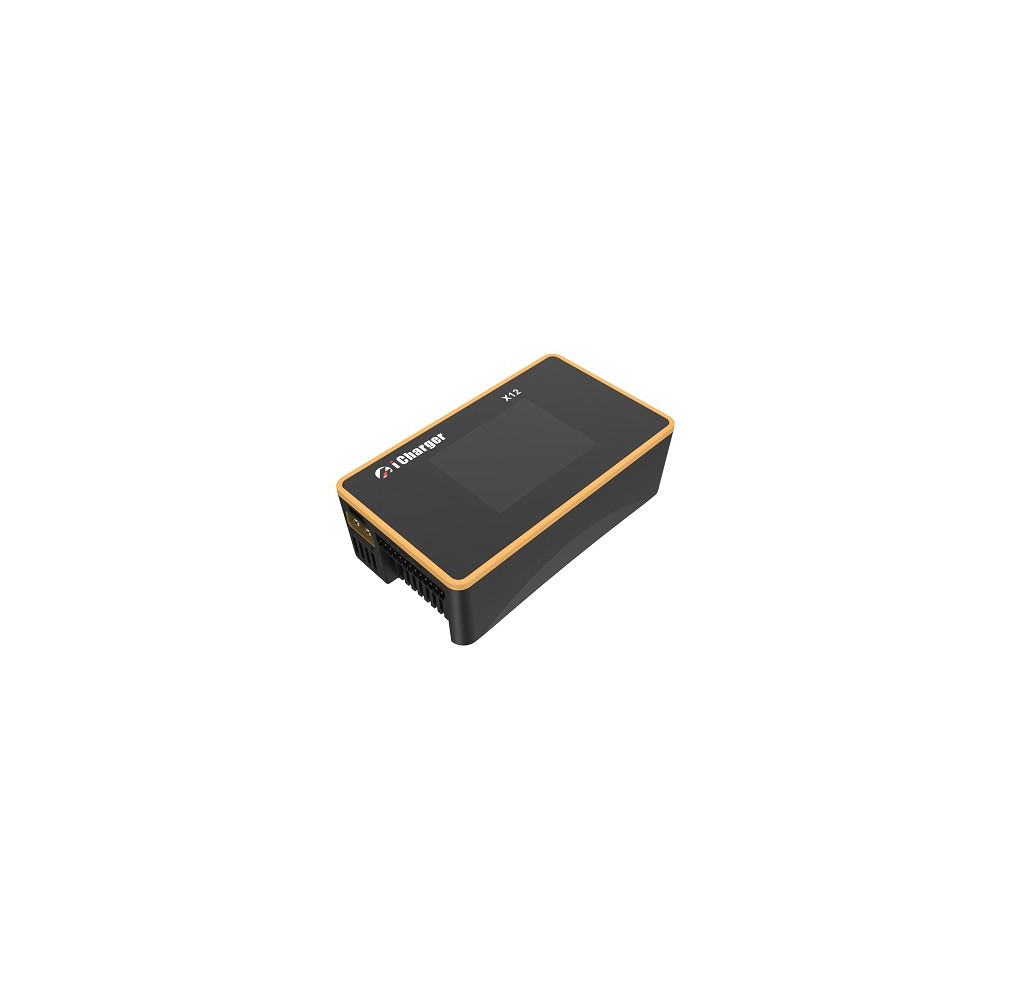

JUNSI/ICHARGER ICHARGER X12
DESCRIPTION
With the new iCharger X12, the renowned manufacturer Junsi has launched a pocket-sized charger that is unique in its class. Up to 12s can be charged directly!

Despite the small dimensions of 112x64x37 mm, no compromises have been made in terms of performance and usability.

The technical data is impressive: 1100W charging power (from 23.5V), 1-12s LiPo cells and up to 30A charging current are sufficient even for large batteries with high capacity. Of course, all other battery types such as LiHV, LiIo, NiZn, PB, NiCd or NiMh batteries can also be charged.

The discharge power is 50W, but can be increased to up to 1100W using an external load (discharge resistor). Of course, the iCharger X12 also supports regenerative charging. Here, the battery capacity is fed back into the supply battery, for example from a full flight battery.

The balancer current of 2 amps always ensures perfectly balanced cell voltages.

A USB port and micro SD slot can be used to log data, but also for future updates.

The menu navigation is almost identical to the well-known Junsi iCharger 308DUO, 406 DUO or 4010DUO.

A 2.4" IPS LCD display ensures good readability even in low light.

ATTENTION! In order to be able to charge 12s, a 13-pin XH connector strip is required on the battery! There is NO balancer board included to be able to charge 2x6s as 12, for example! (CB-12XH/EH)

For 10s as 2x 5s, the well-known CB-1010 with the 11-11 wire can be used!

* Charging a 12S battery with 2 balancer plugs *
You need a board with a connection cable that matches the battery and charger. Then be sure to follow the following sequence:
- First connect the charger to the power pack or a supply battery. If you are using a power pack, switch it on first.
Be careful! Only connect the batteries to the charger once they are correctly connected to the balance board!
- First plug the first balancer plug for cells 1 - 6 "battery minus side, black cable" into the appropriate 6S slot on the board from the minus side,
- then plug the second balancer plug for cells 6-12 into the second 6S slot from the plus side "battery plus side, red cable". Now connect it to the charger. If there hasn't been any flashing or smoking by then, you've done everything right!
- Only now connect the thick red main charging cable "+" of the battery to the charger, then the thick black main charging cable "-".

Connections: Avoid short circuits, otherwise there is a risk of injury! This described sequence also applies when charging several batteries in series!
You are responsible for any damage or defects that may arise if you do not follow these instructions!

All Junsi chargers in the X and DUO series are developed and approved for use in model making. Industrial use is not intended and therefore not permitted!

Scope of delivery: Mini CD, 2x XT60 cables for self-assembly

CHARACTERISTICS
Input voltage: 11-53VDC
Maximum power: 1100W
Length (mm): 112
Max. number of LiPo cells: 12
Balancer balancing current per output: 2A
Max. charging current: 30A
Discharge current adjustable for feedback: 30A
Max. number of NiCd/NiMH batteries: 32
Input current limit: 35A
Max. voltage lead batteries: 40V
Max. discharge power: 50W
Micro SD card slot: Yes
Power supply integrated: No
Connector type input: XT60
Plug type charging output: XT60
