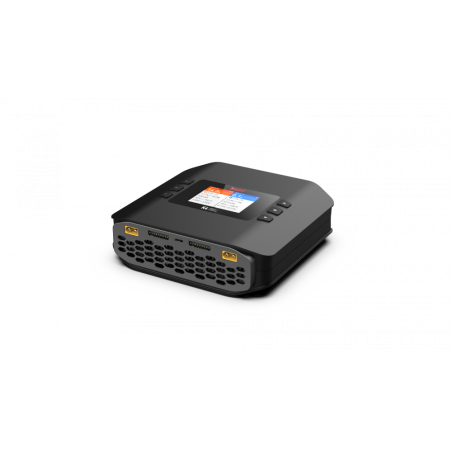

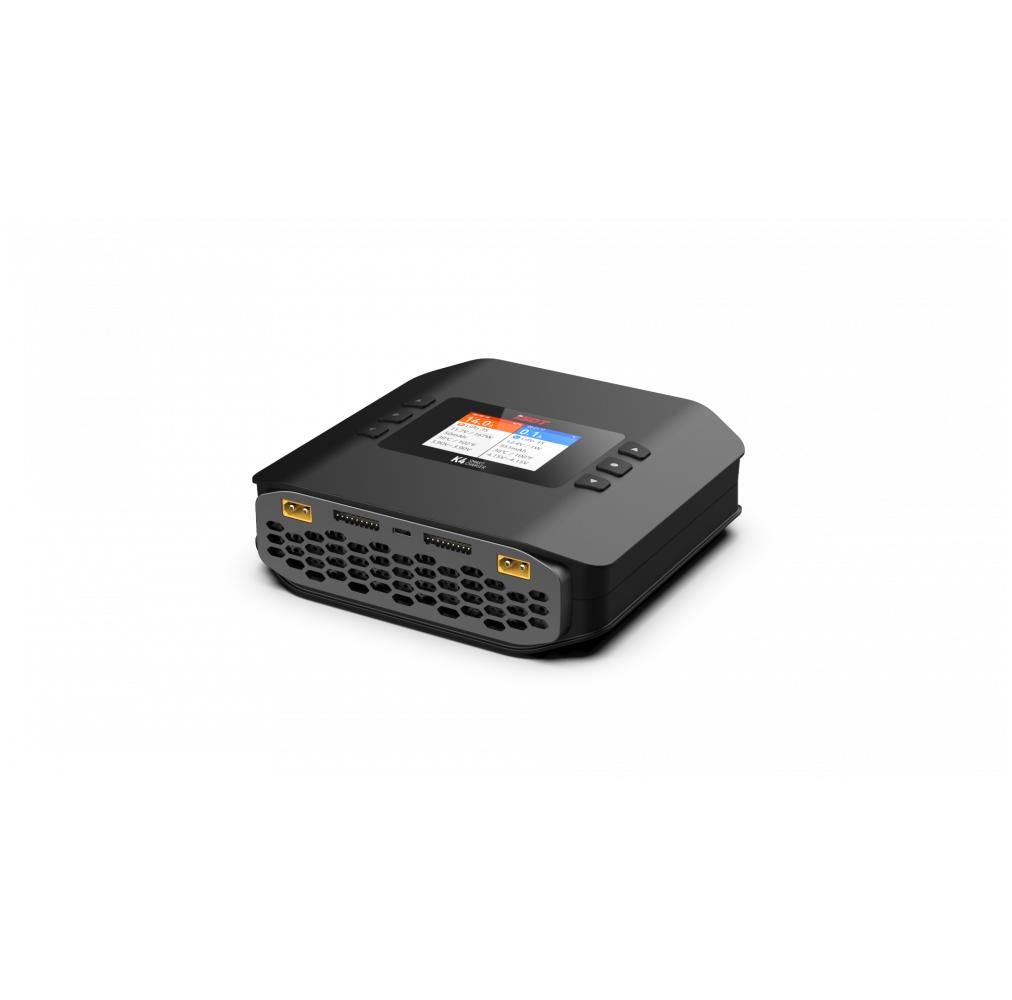

ISDT K4 DUO CHARGER
Powerful compact 2 channel DUO charger with power supply
Integrated 400W power supply, with DC voltage up to 2x 600W power!
Charging current up to 2x 20A, 2-8s LiXx
Ideal for use at home on 230V or on the go on 10-34V DC
1.5A balancer current, up to 800W charging power in parallel mode

DESCRIPTION
The new iSDT K4 DUO loader is a powerful, compact all-round loader. Thanks to the integrated power supply with 400W power, you can quickly charge at home using a 230V socket with up to 400W power, which is divided into each port depending on your needs.

If the K4DUO charger is supplied with DC voltage, for example from a battery or an external, more powerful power supply, up to 2x 600W power is possible! (> 24V required!)

LiXx cells can be charged for 2-8s, in parallel mode up to 800W is possible. The extremely powerful balancer delivers up to 1.5A/cell, so your batteries are optimally cared for and maximum performance is guaranteed.

The easy-to-read 2.8" IPS display is easy to read even in sunlight and makes operation easier. This is done very intuitively and accurately with the 3 buttons per charging output.

The USB-C port can be used for software updates and offers the function for a smartphone, for example to be able to charge with 5V/2A.

Thanks to the compact design of 176 x 183 x 57mm and only 1230g weight, the K4 is easy to use mobile.

Scope of delivery: power cable, instructions, display film, iSDT sticker

CHARACTERISTICS
Charging current adjustable in synchronous mode: 0.2-20A
Charging current adjustable per output: 0.2-20A
Balancer compensation current per output: 1.5A
Length (mm): 176
Max. number of NiCd/NiMH batteries: 2-18
Max. charging current: 20A
Input voltage: 230V AC, 10-34V DC
Max. voltage lead batteries: 24V
Discharge power per output: 30W
Max. charging power at one output: 400W AC / 800W DC
Maximum power: 400W AC, 1200W DC
Input current limit: 45A DC
Max. discharge power: 60W
Discharge power Max. in synchronous mode: 60W
Max. number of LiPo cells: 8th
Max. number of LiHv cells: 8th
Charging power Max Syncron: 800W
Integrated power supply: Yes
Plug type input: Power cable / XT 90
Plug type charging output: XT60
