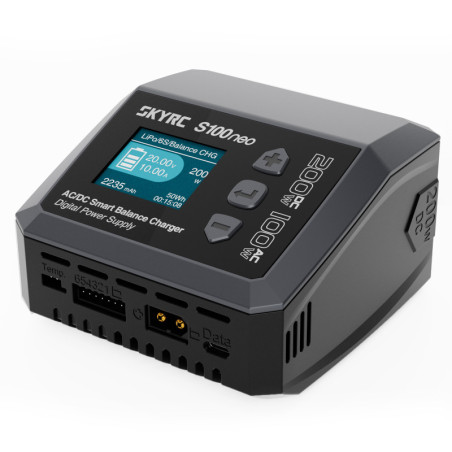

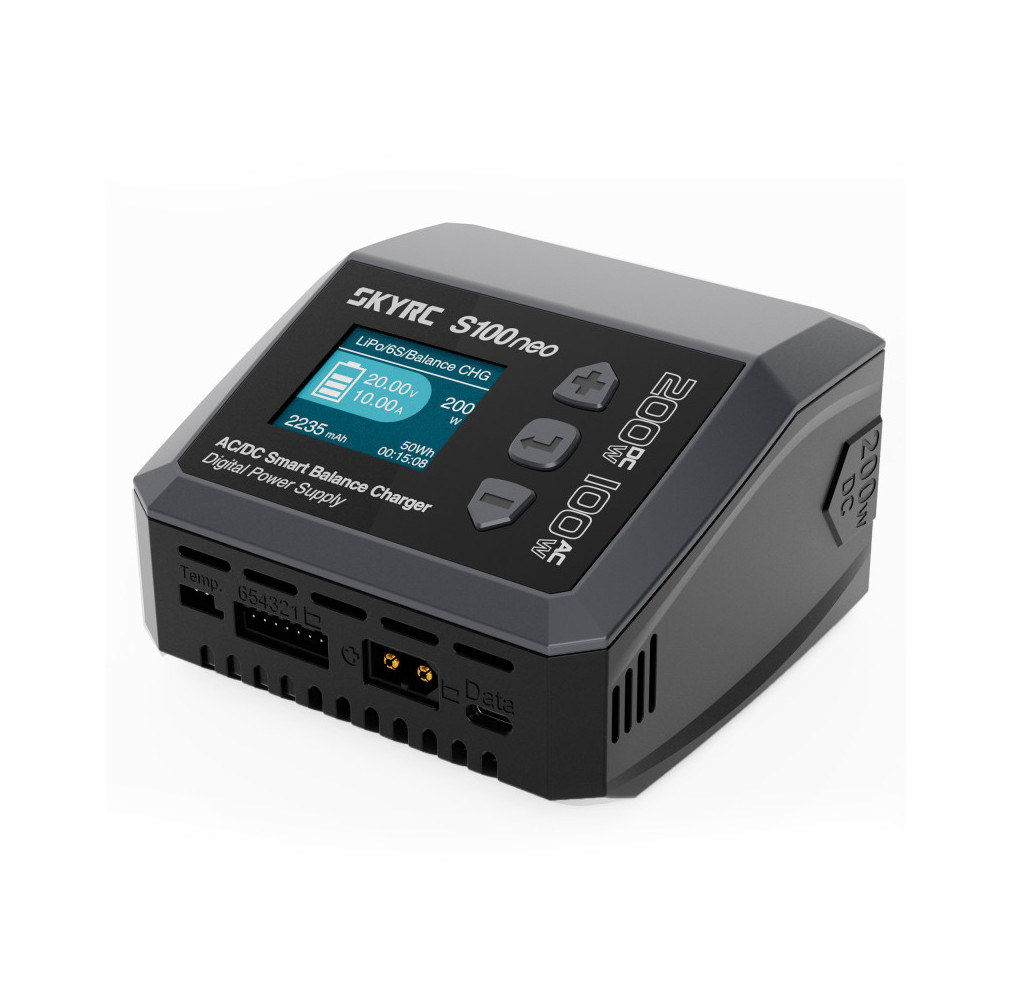

S100NEO AC/DC MULTI-FUNCTION SMART LIPO CHARGER 1-6S 12A SKYRC
The S100neo impresses with its sleek, ultra-compact design and offers a maximum power of 200W for various battery types (LiPo/LiFe/Lilon/LiHV/NiMH/NiCd/Pb) as an AC/DC smart charger. In addition, it can be used as a power supply. The adjustable voltage reaches up to 30V, and the current can reach up to 12A.

Based on the highly-regarded e680 charger, the S100neo packs an impressive power punch, while still being able to take full advantage of its versatility and powerful charging capabilities. But the S100neo is more than just a charger; it also functions as an advanced digital power supply, delivering precise and efficient charging with unrivalled accuracy in both constant current (CC) and constant voltage (CV) modes. It also allows voltage measurement without the need for an active power supply, making battery voltage assessment much simpler. All while the colour LCD display enhances the user experience through intuitive navigation and easy monitoring.

Characteristics:

Efficient successor to the well-known e680 charger

2 inputs, 1 output

Max. 100W AC charging power

Max charging power 200W DC charging power

Fast charging up to 12A

Easy to use 3 button controls

Light and compact

With PD/QC3.0 fast charging

Compatible with Charger Master

Technical specifications:

Input voltage: AC: 100-240V (50-60Hz)

DC: 6-30V

DC charging power: max. 200W (+- 10%)

AC charging power: max 100W (+- 10%)

Discharge power: 5W (main switch) (+- 10%)

max. 20W (Balance Port, LiPo/6S)

Charging current: LiPo/LiIon/LiFe/LiHV/NiMH/NiCd/Pb:

0.1A~0.5A (±0.1A) | 0.6A~12A (+-10%)

Discharge current: LiPo/LiIon/LiFe/LiHV/NiMH/NiCd/Pb:

0.1A-0.2A (±0.1A) | 0.3A-2A (+-10%)

Balance current: max 1.0A

Trickle charge current: 50~300mA & Standard OFF: 60mA

Battery types: LiXX: 1-6S

NiXX: 1-15S

Pb: 3S / 6S / 12S

Weight: 340g

Dimensions: 105x105x62mm

DC power supply

Voltage: 2V~30V

Current: 0.1A ~ 10A (Voltage 2V ~ 2.9V)

0.1A ~ 12A (Voltage 3V ~ 30V)

Overcurrent protection: 0.1A (+- 0.1A)

0.2A ~ 4A (+- 20%)

4.1A ~ 10A (+- 10%)

10.1A ~ 12A (+- 5%)

Power: AC input: max 100W

DC input: max 200W

DC motor starter

Voltage: 3-12V

Current: 1-5A

Forward Direction

Time: 1-60min

Protections: Engine stall protection

Overcurrent protection

Overload protection

Includes:

1x SKYRC S100neo Charger

1x Manual
