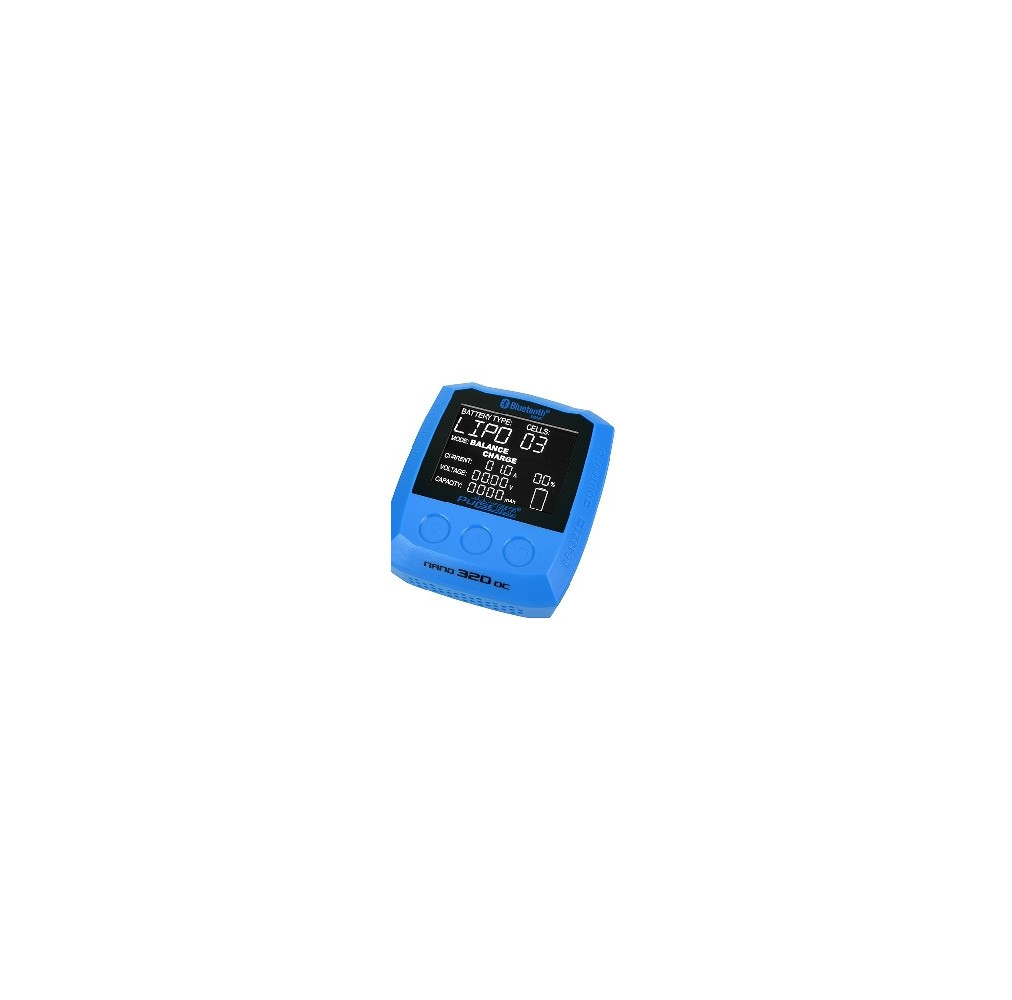

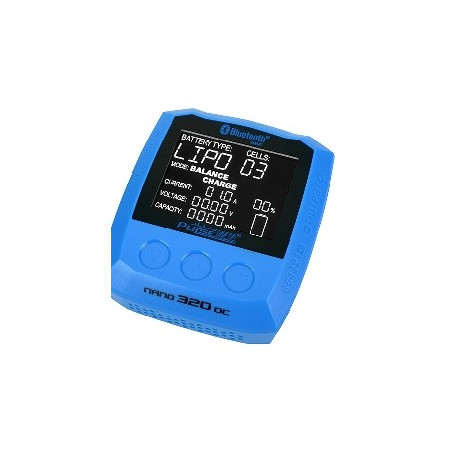

Charger - Nano 320 - Pulse Link App - AC 11-18V - 320W Power - 0.1-15.0A - 1-6 Li-xx - 1-15 Ni-xx - 2-20V PB
Specification:
• DC Input Voltage: . . . . . .9-32V
• Display Type: . . . . . . . . . . . LCD
• Case Material: . . . Plastic Case
• Size:. . . . . . . . . . . . 76x85x37mm
• Display Backlight: . . . . . . Black
• Controls: . . . . . . . Three Buttons
• Weight: . . . . . . . . . . . . . . . .130g
• External Port: 2-6S Balance Socket-XH, Battery Socket, DC Input
• Delta Peak Detection for NiMH/NiCd: 3-15mV/cell / Default: 4mV/cell
• Charge Voltage: NiMH/NiCd: Delta peak detection
LiPo: 4.18-4.25V/cell LiIon: 4.08-4.2V/cell
LiFe: 3.58-3.7V/cell LiHV: 4.25-4.35V/cell
• Balance Current: 1000mA/cell
• Reading Voltage Range: 0.1-26.1V
• Battery Types/Cells: LiPo/LiIon/LiFe/LiHV: 1-6cells
NiMH/NiCd: 1-15cells
Pb: 2-20V
• Charge Current: 0.1A-15.0A
• Safety Timer: 1-720minutes / OFF
• Charge (W): 320W
• Discharge Cut-off Voltage: .NiMH/NiCd: 0.1-1.1V/cell
. . . . . . . . . . . .LiPo: 3.0-3.3V/cell LiIon: 2.9-3.2V/cell
. . . . . . . . . . . . LiFe: 2.6-2.9V/cell LiHV: 3.1-3.4V/cell
. . . . . . . . . . . . . Pb: 1.8-2.0V/cell
• Discharge (W): 5W
• Balance Cells: 2-6 cells
• Charge Method: CC/CV for Lithium Types and Lead (Pb) Batteries
Delta-peak Sensitivity for NiMH/NiCd.
• Bluetooth Communication: Bluetooth 4.0 (Bluetooth Low Energy)
• Range: 20 meters (65 Feet)
