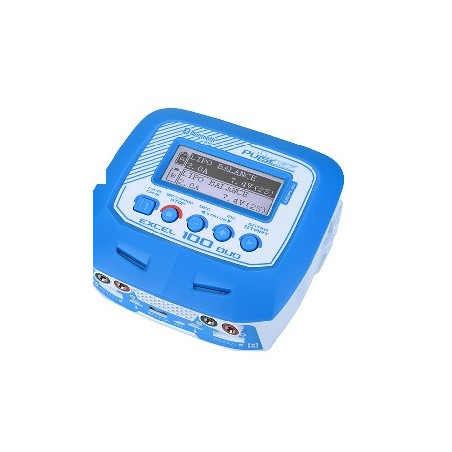

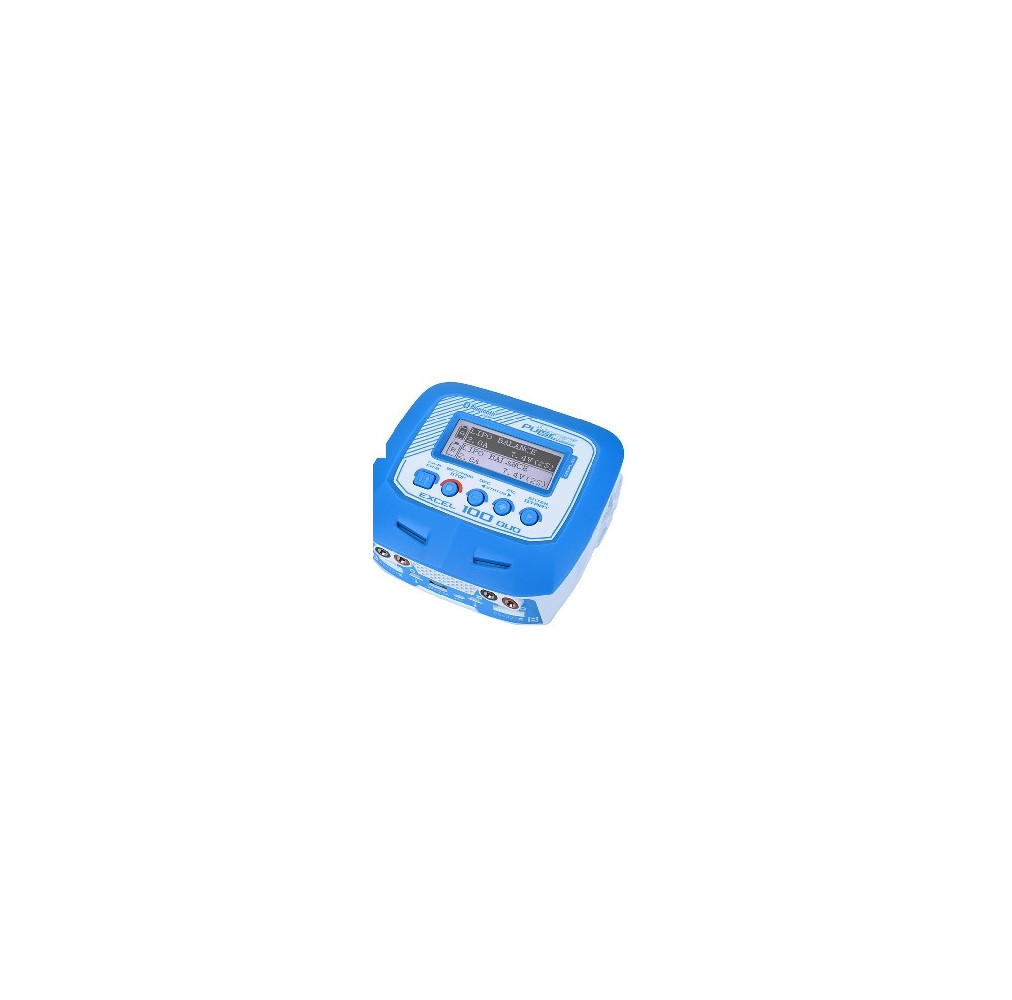

Dual Charger - Excel 100 Duo - Pulse Link App - AC 100-240V - DC 11-18V - 100W Power - 0.1-10.0A - 1-6 Li-xx - 1-15 Ni-xx - 2-20V PB
Specification:
• DC Input Voltage: . . . . . 11-18V
• Display Type: . . . . . .28x64 LCD
• Case Material: . . . Plastic Case
• Size:. . . . . . . . . . . 53x140x67mm
• AC Input Voltage: . . .100-240V
• Display Backlight: . . Cool White
• Controls: . . . . . . . . Five Buttons
• Weight: . . . . . . . . . . . . . . . 668g
• DC Power Supply Output: 13.8V / Max. 100W
• PC Communications: USB Port for PC Control & Firmware Upgrade
• External Port: 2-6S Balance Socket-XH, Temperature Probe Socket, Battery Socket,
AC/DC Input, DC Output, Micro USB Port for PC, 5V-2.1A USB Output.
• Delta Peak Detection for NiMH/NiCd: 3-15mV/cell / Default: 4mV/cell
• Charge Cut-off Temperature: 20ºC/68ºF-80ºC/176ºF(adjustable)
• Charge Voltage: NiMH/NiCd: Delta peak detection
LiPo: 4.18-4.25V/cell LiIon: 4.08-4.2V/cell
LiFe: 3.58-3.7V/cell LiHV: 4.25-4.35V/cell
• Balance Current: 300mA/cell
• Reading Voltage Range: 0.1-26.1V
• Battery Types/Cells: LiPo/LiIon/LiFe/LiHV: 1-6cells
NiMH/NiCd: 1-15cells
Pb: 2-20V
• Charge Current: (0.1A-10.0A) x2
• Safety Timer: 1-720minutes / OFF
• Charge (W): AC 100W (Support Power Distribution)
DC 100Wx2 Discharge Current: (0.1A-2.0A) x2
• Discharge Cut-off Voltage: NiMH/NiCd: 0.1-1.1V/cell
LiPo: 3.0-3.3V/cell LiIon: 2.9-3.2V/cell
LiFe: 2.6-2.9V/cell LiHV: 3.1-3.4V/cell
Pb: 1.8-2.0V/cell
• Discharge (W): 10Wx2
• Balance Cells: 2-6 cells
• Memory: 10x2 Different Charge/Discharge Profiles
• Charge Method: CC/CV for Lithium Types and Lead (Pb) Batteries
Delta-peak Sensitivity for NiMH/NiCd.
• Bluetooth Communication: Bluetooth 4.0 (Bluetooth Low Energy)
• Range: 20 meters (65 Feet)
