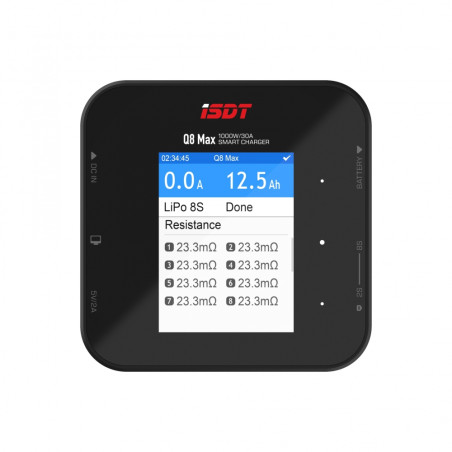

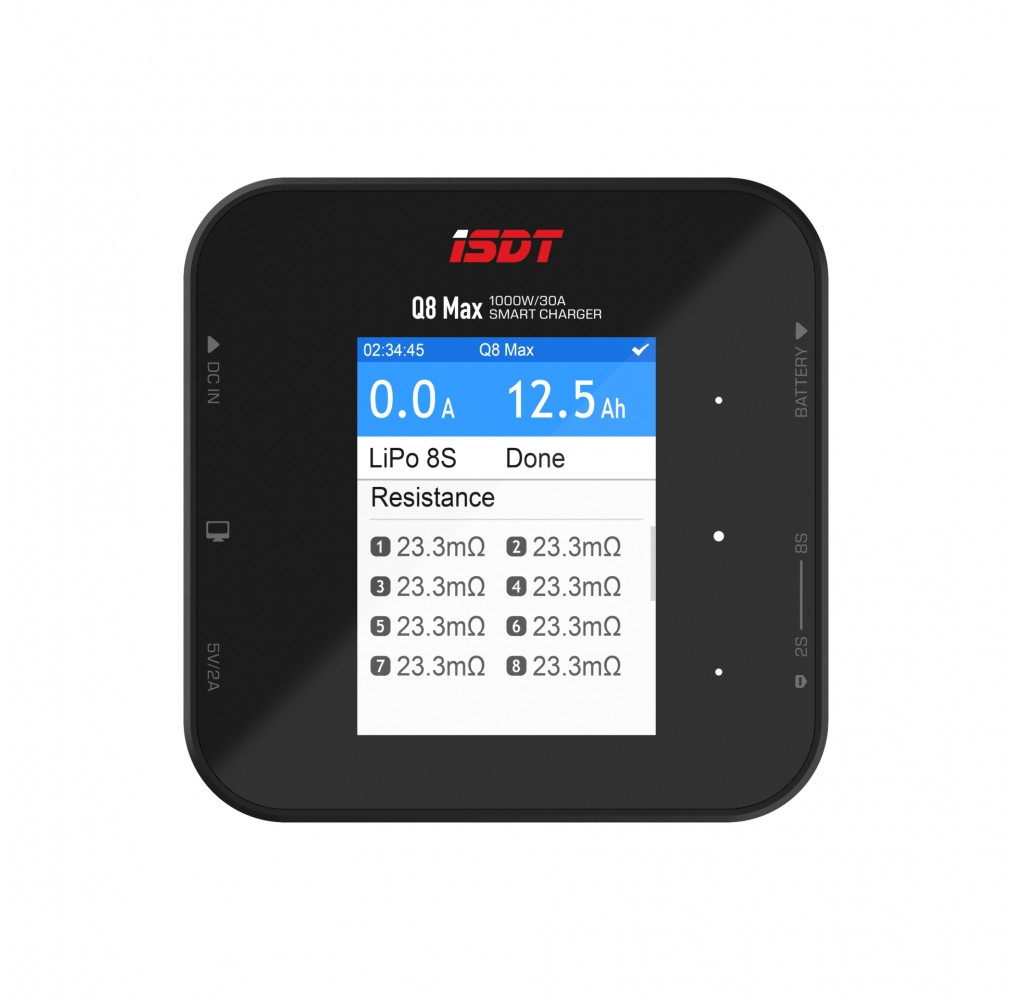

ISDT Q8 MAX CHARGER
Powerful 1000W skid steer loader
1-8s LiPo, 1-7s LiHv
Charging current up to 30 amps
New scOS 2.0 for even more functions and easier operation
USB port 5V 2A e.g. for charging your smartphone

DESCRIPTION
The new Q8 Max charger from iSDT offers 1000W charging power with a weight of only 288 grams and almost tiny dimensions of 95x95x45mm. 1-8s LiXx batteries or 1-7s LiHv can be charged with a maximum of 30A. The new scOS 2.0 offers improved system stability and new functions such as dark mode, a DC power mode and a mode to bring defective batteries to 0V. An integrated USB port (5V 2A) can be used to charge the smartphone.
The powerful balancer works with up to 1.5A/cell and brings every battery into shape. The large 2.8" IPS display with 240x320 pixels is easy to read even in sunlight.

Technical data:

Input voltage: 10-34V - DC voltage
Input current max: 33A
Output voltage: 1-34V
Charging power: 1000W (from 32V input voltage)
Discharging power: 30W Charging
current
: 0.2-30A Discharging current: 0.2-3A
Balancer current: 1500mA/cell
adjustable Final charging voltage: up to 4.35V for LiHV
number of cells - battery type: 1-8 LiXX, 1-7 LiHv, 1-16 NiXX, 1-12 Pb
Weight: 288 g
Dimensions: 95x95x45 mm
Color display: 2.8" 240x320 IPS LCD, good Readable even in daylight and at an angle
Can be updated via USB Multilingual menu navigation, German can be selected

Scope of delivery: instructions, display film, iSDT sticker


CHARACTERISTICS
Balancer compensation current per output: 1.5A
Max. number of NiCd/NiMH batteries: 1-16NiXx
Input voltage: 10-34V DC voltage
Max. voltage lead batteries: 24V
Weight (g): 288
Charging current adjustable per output: 30 amps
Max. discharge power: 30W
Height (mm): 45
Width (mm): 95
Length (mm): 95
Integrated power supply: No
