JUNSI/ICHARGER ICHARGER DX12
DESCRIPTION

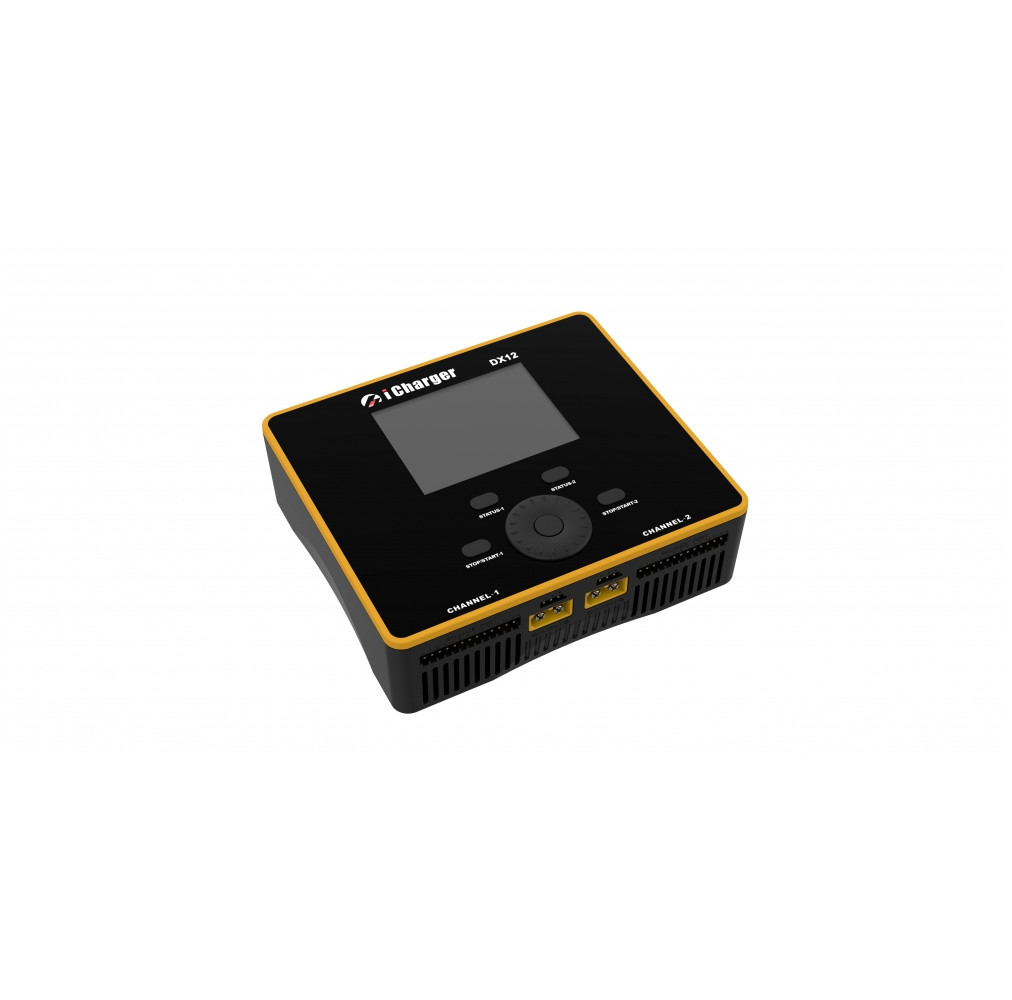

With the new iCharger DX12, the renowned manufacturer Junsi has launched a compact DUO charger.

The new DX12 charger combines the advantages of the well-known Junsi iCharger DUO series with the portability of a small pocket charger. Despite the small dimensions of 111.5 x 128.5 x 40 mm, no compromises have been made in terms of performance and usability. The newly developed rotary wheel has a very good pressure point and makes operation much easier.

The technical data is impressive: 1700W charging power (from >25V), 1-12s LiXx cells and up to 30 amps charging current are sufficient even for large batteries with high capacity. Of course, all other battery types such as LiHV, LiIo, NiZn, PB, NiCd or NiMh batteries can also be charged.

The discharge power is 80 watts in total (50W per output if only one output is used), but can be increased to up to 3000W using an external load (discharge resistor). Of course, the iCharger DX12 also supports regenerative charging. The battery capacity is fed back into the supply battery, for example from a full flight battery.

The balancer current of 4 amps in total (2A per output) always ensures perfectly balanced cell voltages.

A USB-C PD port for charging smartphones etc. (5V/3A, 9V/2A, 12V/1.5A) or for software updates is also installed. The micro SD slot can be used to log data, but also for future updates.

A servo tester is also integrated; please note that an external power supply is required here!

The menu navigation is almost identical to the well-known Junsi iCharger 308DUO, 406 DUO or 4010DUO.

A 2.8" IPS LCD display ensures good readability even in low light.

Instructions in English are included with the charger on a CD; you can download the German version from us.

All Junsi chargers in the X and DUO series are developed and approved for use in model making. Industrial use is not intended and therefore not permitted! All Junsi chargers may only be operated with power supplies developed for model making! AGM batteries may not be charged in the PB program!

ATTENTION! In order to be able to charge 12s, a 13-pin XH connector strip is required on the battery! There is NO balancer board included to charge 2x6s as 12, for example! (CB-12XH/EH)

For 10s as 2x 5s, the well-known CB-1010 with the 11-11 wire can be used!

* Charging a 12s battery with 2 balancer plugs *
You will need a board with a connection cable that matches the battery and charger. Then be sure to follow the following order:
- First connect the charger to the power pack or a supply battery. If you are using a power pack, switch it on first.
Be careful! Only connect the batteries to the charger once they are correctly connected to the balancer board!
- First plug the first balancer plug for cells 1 - 6 "battery minus side, black cable" into the appropriate 6S slot on the board from the minus side,
- then plug the second balancer plug for cells 6-12 into the second 6S slot from the plus side "battery plus side, red cable". Now connect it to the charger. If there hasn't been any flashing or smoking by then, you've done everything right!
- Only now connect the thick red main charging cable "+" of the battery to the charger, then the thick black main charging cable "-".

Connections: Avoid short circuits, otherwise there is a risk of injury! This described sequence also applies when charging several batteries in series!
You are responsible for any damage or defects that may occur if you do not follow these instructions!


Scope of delivery: Only the device itself is supplied!


CHARACTERISTICS
Charging current adjustable per output: 0.05-30A
Charging current adjustable in synchronous mode: 0.05-50A
Max. number of NiCd/NiMH batteries: 1-32
Input voltage: 11-53V DC
Length (mm): 111.5
Max. number of LiHv cells: 12
Max. number of LiPo cells: 12
Max. charging power at one output: 1200W
Maximum power: 1700W
Charging power Max Syncron: 1800W
Balancer balancing current per output: 2A
Max. discharge power: 3000W
Discharge current adjustable for feedback: 30A
Max. charging current: 30A per channel, 50A in sync. mode
Max. voltage lead batteries: 40V
Balancer balancing current synchronous mode: 4A
Discharge power per output: 50W
Input current limit: 65A
Max. discharge power in synchronous mode: 80W without external load
Micro SD card slot: Yes
Power supply integrated: No
Plug type charging output: XT60
Connector type input: XT90
