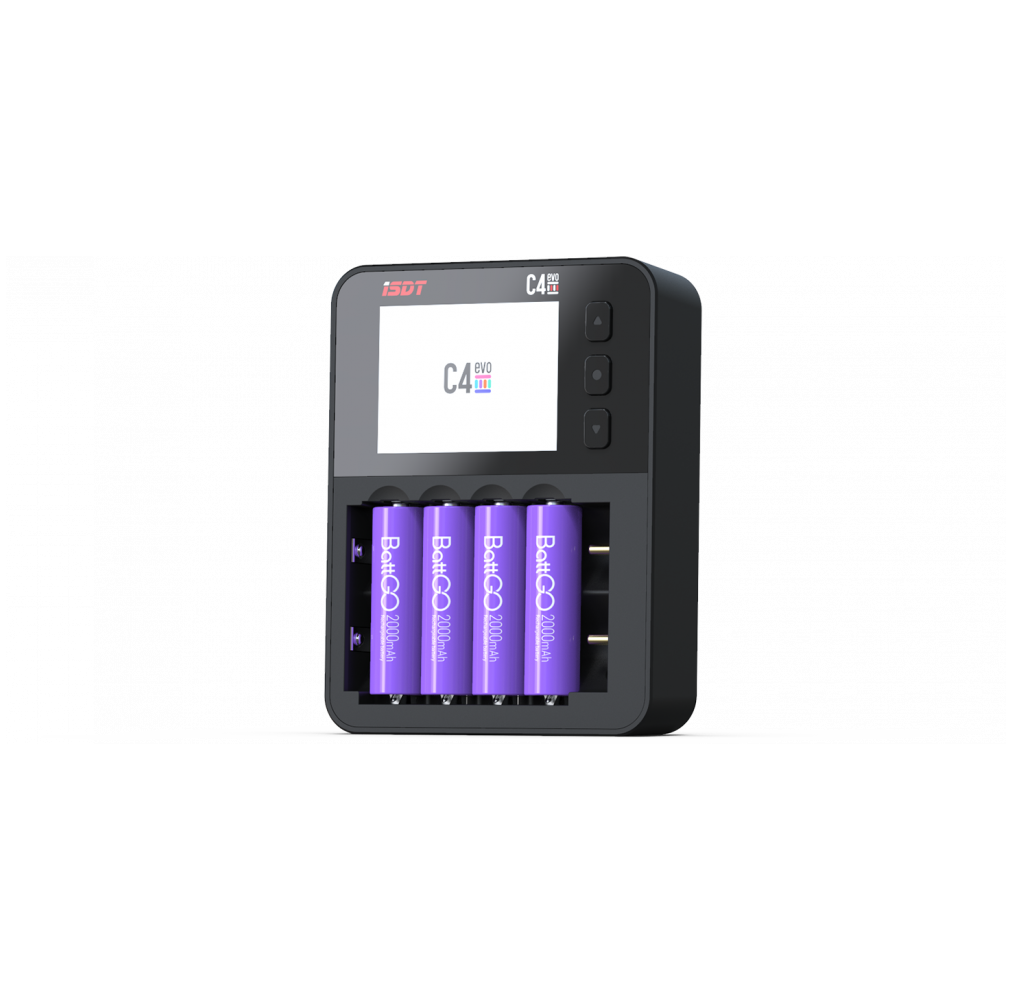

ISDT C4 EVO CHARGER
Powerful compact charger for up to 4x AA cells up to 26700 cells!
Power is supplied via USB C (not included!)
Mixed operation of different battery types possible at the same time
Up to 3A charging current per cell / 1.5A discharging current
Charging, discharging, maintenance, analysis and activation charging possible


DESCRIPTION
The iSDT C4 EVO is a small but very powerful charger for up to 4 NiXx or LiXx cells. Different battery types AA (Mignon), AAA (Micro) or Li-Ion 18650 can be charged at the same time. The C4 EVO can not only charge, but also discharge, bring the cells to storage voltage in storage mode, but also activate and analyze cells. The large IPS display with 320x240 pixels is easy to read even in sunlight and allows the user to have all information directly in view. The total output is 36W, it can be charged with up to 3 amps per cell.

A suitable USB-C power supply must be purchased separately!

Of course, the C4 EVO has reverse polarity protection and can be updated to the latest firmware via a USB-C connector. Thanks to the variable possible input voltage, the iSDT C4 EVO can also be used mobile, for example on a USB-C power bank.

Possible battery types are:
AAA, AA, 10440,10500,13500,14500,
14650.17670,18650,18700,
20650,2100,2650,26700

Scope of delivery: power cable, instructions

CHARACTERISTICS
Discharge power per output: 1.5A
Length (mm): 120
Maximum power: 36W
Max. charging current: 3A
Max. number of NiCd/NiMH batteries: 4
Max. number of LiPo cells: 4
Input voltage: 5-12V USB-C Supports PD and QC protocol
Integrated power supply: No
Plug type input: USB-C
