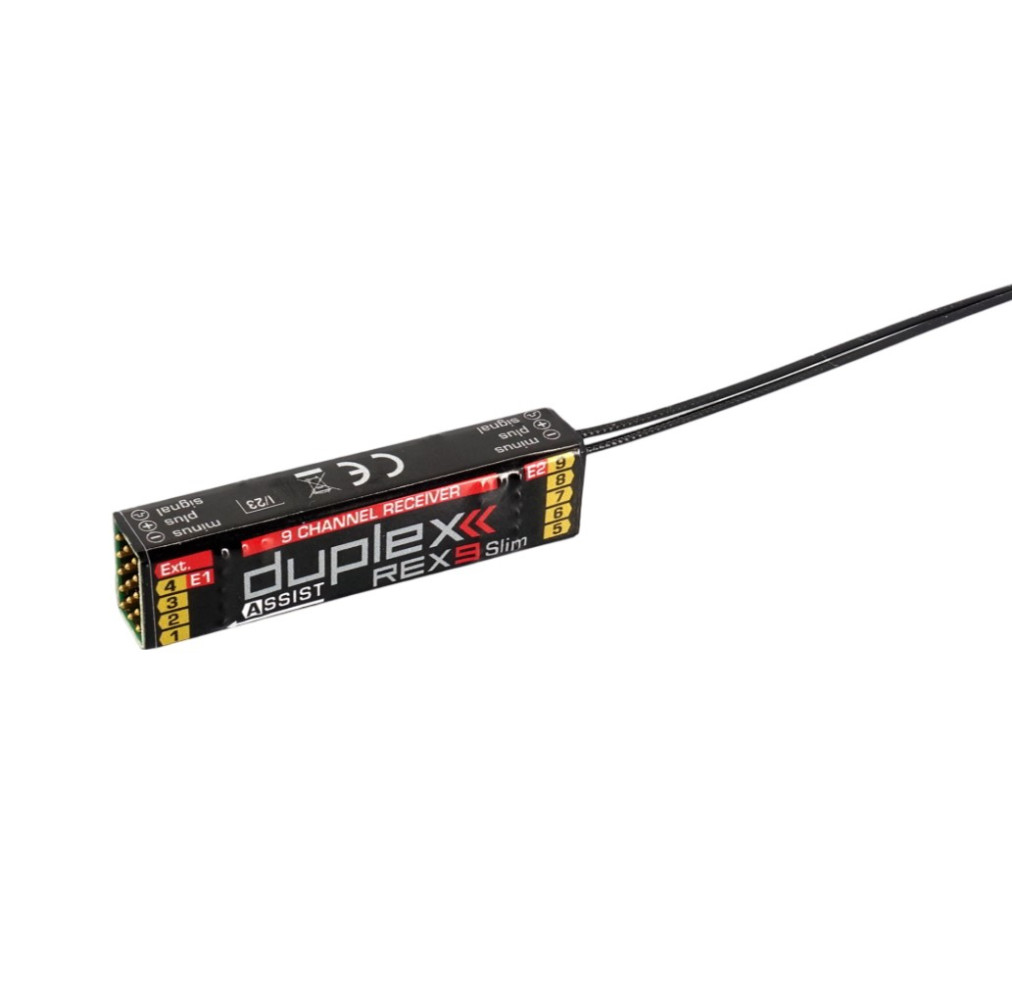

DUPLEX 2.4EX Receiver REX 9 Slim Assist
DUPLEX 2.4EX Receiver REX 9 Slim Assist
Produktbeschreibung und Features
A completely new type of receiver from the REX SLIM series with 9 servo slots. The receivers are specially designed for models with very narrow fuselages (e.g. F3J, F5J, etc.).

The REX Slim receivers offer all the features of the well-known REX Assist receiver series with a minimal cross-section.

- supported protocols: PPM, EX BUS, EX Telemetry, S.Bus
- freely programmable channel assignment of the slots
- compact dimensions
- full range
- wirelessly programmable via the device overview of the Duplex DC/DS transmitters
- programmable via the JETIBOX

- integrated ASSIST stabilisation system with damping, heading hold, trainer mode...
- additional, integrated telemetry: rotation angle on 3 axes, G-Force, temperature
- for fixed-wing models and multicopters
- can output stabilised EX bus signal for e.g. CentralBoxes
- of course also suitable for delta and flying wing models
-Variometer function as an optional extension via the JETI SW Shop

Technical data
Dimensions: 15 x 12.5 x 60mm
Weight: 12 g
Supply voltage: 3.5 - 8.4V
Telemetry: Yes
Stabilisation ASSIST: Yes, with REX7 Slim Assist and REX 9 Slim Assist
Servo slots: 9
Antenna length: 2x 200 mm
