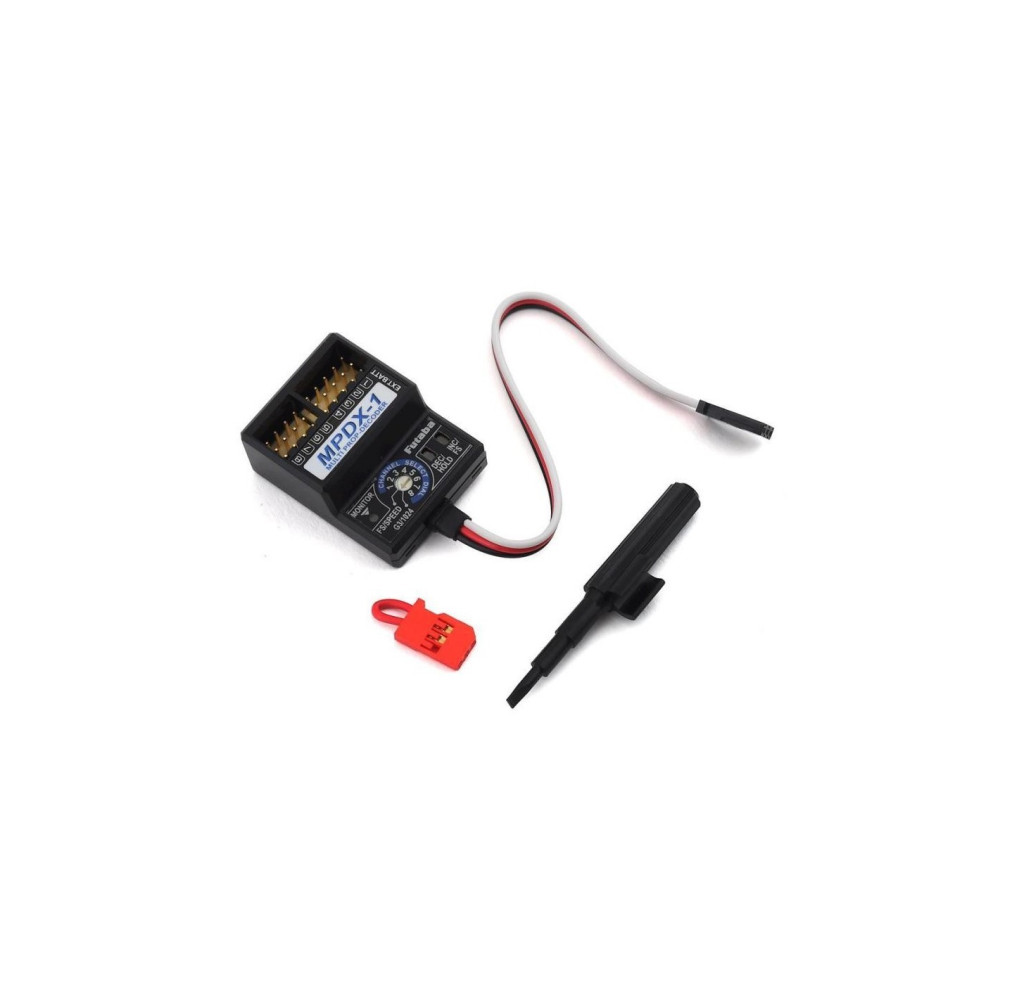

MULTI DECODER MPDX-1
MULTI DECODER MPDX-1
Features:
- Operates 8 servos using only one channel.
- Linear operation is possible.
- The operating speed of each servo on each channel can be adjusted.
- Fail save is available on each channel.
- Dimensions:
29.6 mm x 39.3 mm x 15.7 mm
Weight: 14.2 g
• Power requirements: 4.8 V - 7.4 V
• Current consumption: 7.5 mA
• Number of multi-prop output channels: 8
• Applicable modulation modes: 2.4 GHz/PCMG3, PCM1024, PPM
Applicable systems:
32MZ/18MZ(WC)
14MZ/FX-40/12Z/12FG
(except 2.4 GHz system)
