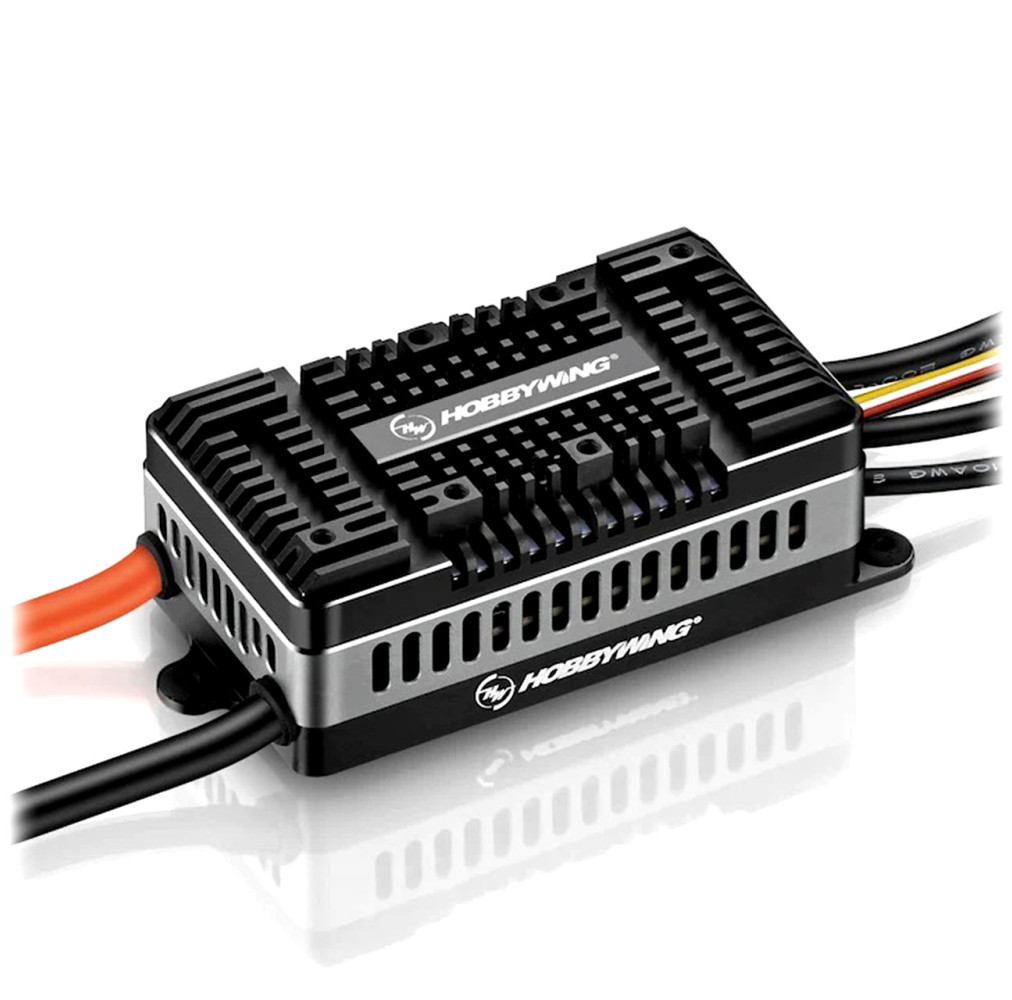

Hobbywing Platinum Pro 260A HV Regler V5 6-14s, 10A BEC
Hobbywing Platinum Pro 260A HV Regler V5 6-14s, 10A BEC
Characteristics:
Efficient cooling through complex heat dissipation system with windows
Built-in 12V switch BEC (5-12V)
Supports multiple data protocols
e.g. Mikado VBar System, Futaba S.BUS2, MSH Brain and iKON
Including data recording, accessible via the OTA module on the smartphone
Multiple protection functions (e.g. against reverse currents)
16 adjustable parameters, including 4 flight modes:
Fixed Wing
Helicopter - External Governor
Helicopter - Express Governor
Helicopter - Store Governor
Technical data:
Type: Brushless High Voltage
Current duration/peak: 260A/400A
Cell count: 6-14S LiPo
BEC: 5-12V @10A (Switch Mode)
Battery/motor cable: 1x 8AWG (red, black each)
3x 10AWG (black)
Programming: - LCD programming box
- OTA programming module
- Separate programming port
Firmware upgrade: Yes
Telemetry: Mikado VBar; Futaba S.Bus2;
MSH iKon; Brain and etc.
Dimensions: 89x50x34mm
Weight (including cable): 297g
Mission: 700-800 electric helicopter
(main rotor length: 690-880mm)
Scope of delivery:
1x Controller Platinum V5 260A HV SBEC
1x Manual (English)
