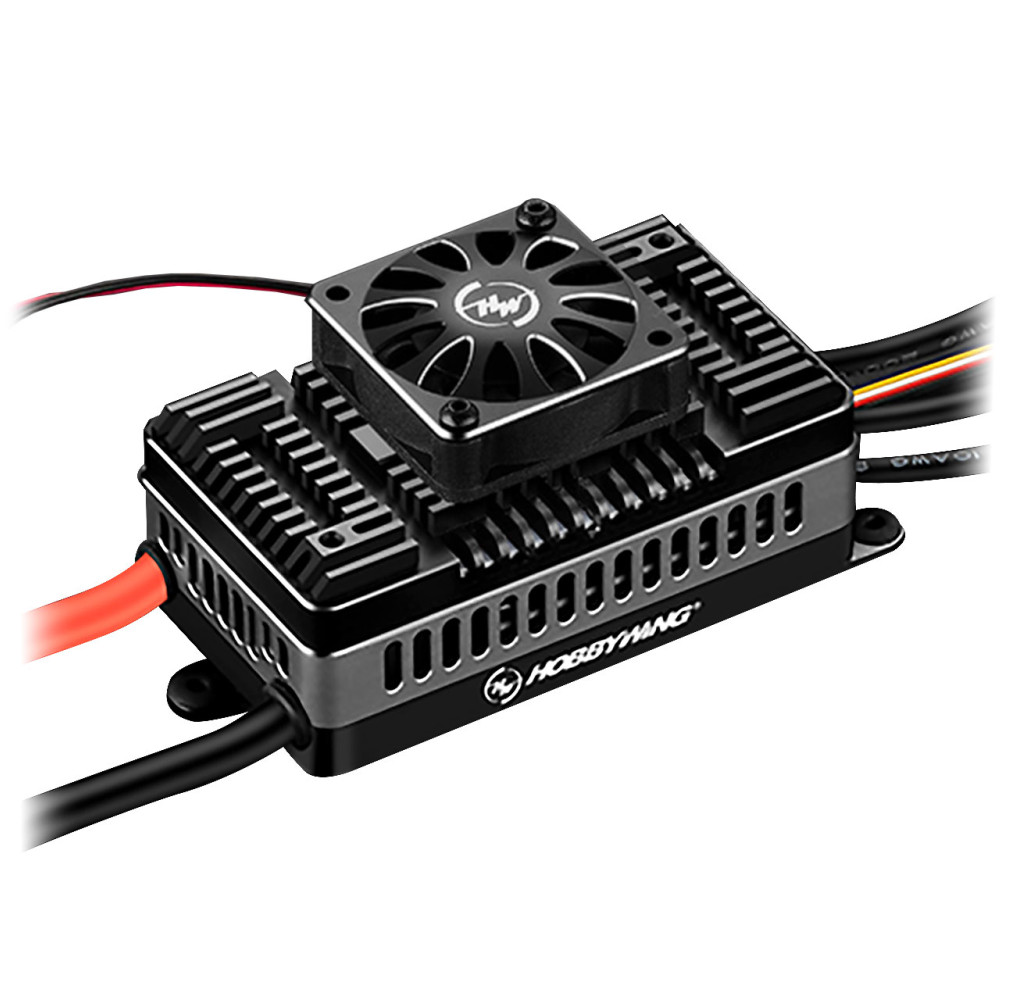

Hobbywing Platinum Pro 260A HV Regler V5 6-14s, NoBEC
Product information "Hobbywing Platinum Pro 260A HV Controller V5 6-14s, NoBEC"
The Platinum V5 260A HV V5 offers constant speed performance and thus ensures an excellent flight experience without a BEC. The innovative housing design, especially with the additional windows on the sides and the internal structure, ensures particularly effective heat dissipation. This means that heat generated is transported directly from the circuit board to the outside via the shortest route. And that is also necessary, because thanks to the integrated 32-bit processor, the speed algorithm is even more precise and the general performance of the Platinum controller is of course even stronger. This finely adjustable speed sensitivity ultimately enables every flying ace to find a level that suits him exactly.

The controller features a technology for efficiency optimization with synchronous rectification (DEO: "Driving Efficiency Optimization"m Active Freewheeling), which brings several advantages at once:
- faster throttle response, improved flight stability and flexibility
- Higher driving efficiency and longer battery life
- Lower temperature rise of the controller, more reliable

Characteristics:

Efficient cooling through complex heat dissipation system with windows
Supports multiple data protocols
e.g. Mikado VBar System, Futaba S.BUS2, MSH Brain and iKON
Including data recording, accessible via the OTA module on the smartphone
Multiple protection functions
16 adjustable parameters, including 4 flight modes:
Fixed Wing
Helicopter - External Governor
Helicopter - Express Governor
Helicopter - Store Governor
Technical data:

Type: Brushless High Voltage
Current duration/peak: 260A/400A
cell count: 6-14S LiPo
BEC: -
battery/motor cable 1x 8AWG (each red, black)
3x 10AWG (black)
Programming: - LCD programming box (HW30502001)
- OTA programming module (HW)
- Separate programming port
Firmware upgrade: Yes
Telemetry: Mikado VBar;Futaba S.Bus2;
MSH iKon;Brain and etc.
Dimensions: 89x50x34mm
Weight (including cable): 297g
Mission: 700-800 electric helicopter
(main rotor length 690-880mm)
Scope of delivery:
1x Controller Platinum V5 260A HV OPTO
1x Manual (English)
