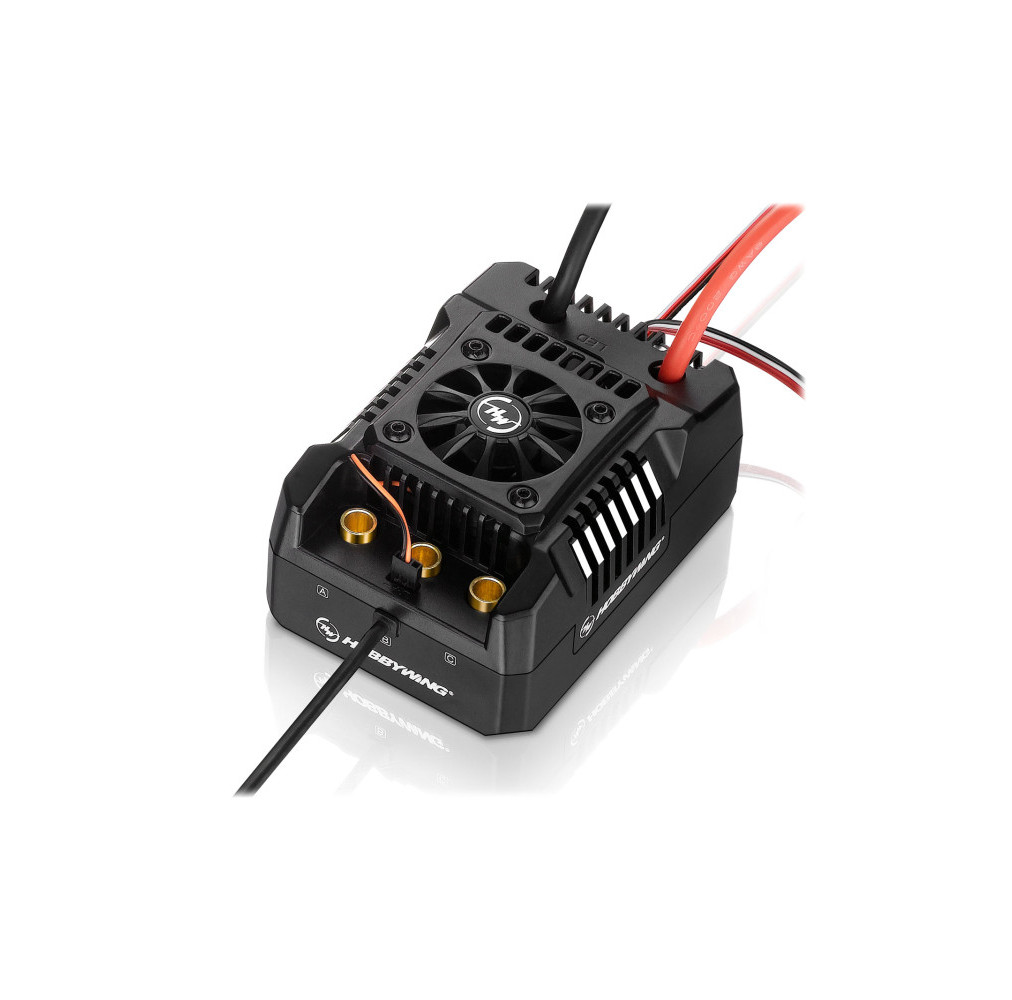

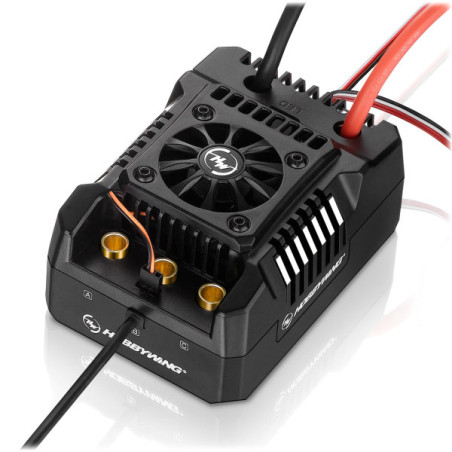

Hobbywing Ezrun MAX4-HV controller sensorless 300 Amp, 6-12s LiPo, BEC 10A
Product information "Hobbywing Ezrun MAX4-HV Controller Sensorless 300 Amp, 6-12s LiPo, BEC 10A"
The Ezrun Max4 speed controller is suitable for particularly large 1:4 and 1:5 scale models. This controller can be ideally used in any of the aforementioned models, whether heavy-duty off-roaders or trucks. It is the ideal choice for high-end models that are subjected to heavy use or aggressive driving.

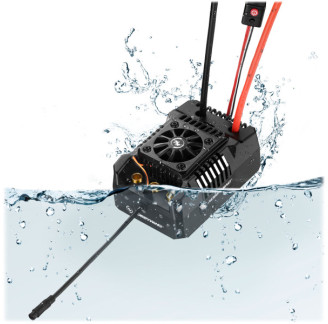

Despite its enormous size, the Ezrun Max4 was constructed using high-quality and, above all, durable materials. This is evident, for example, in the excellent protection the Max4 controller offers against dust, water, and similar external influences. The electronic switch is also well protected against damage that could otherwise occur during normal operation. Furthermore, the Ezrun Max4 features a built-in high-current BEC capable of delivering a maximum output of up to 25A. The output voltage can be switched between 6V, 7.4V, and 8.4V. This high-current BEC was designed to provide sufficient power to modern high-current servos, enabling precise control of compatible large-scale models.

Features

Super-strong switch-mode BEC with a continuous current of 10A, instantaneous 25A, and the ability to switch between 6, 7.4, and 8.4V.
Fire-resistant circuits to protect the battery connector
Other built-in protection mechanisms: undervoltage, overheating, signal loss, ...
Versatile and programmable
Real-time data recording
Technical data:

Electricity (continuous/short-term) 300A / 2000A
Engine type: Sensor/sensorless brushless motors
Engine limit: 12S LiPo: kV < 600 (70125 size)
LiPo cells: 6-12S
BEC: 6V / 7.4V / 8.4V with 10A (switchable)
Fan: Yes (powered via built-in BEC)
Programming input: Fan / PRG input
Programming: LED programming card, LCD programming box, OTA programming module
Size: 125x85x61.7mm
Weight: 775.4g
Mission: 1/4 and 1/5 heavy duty off-road, trucks
