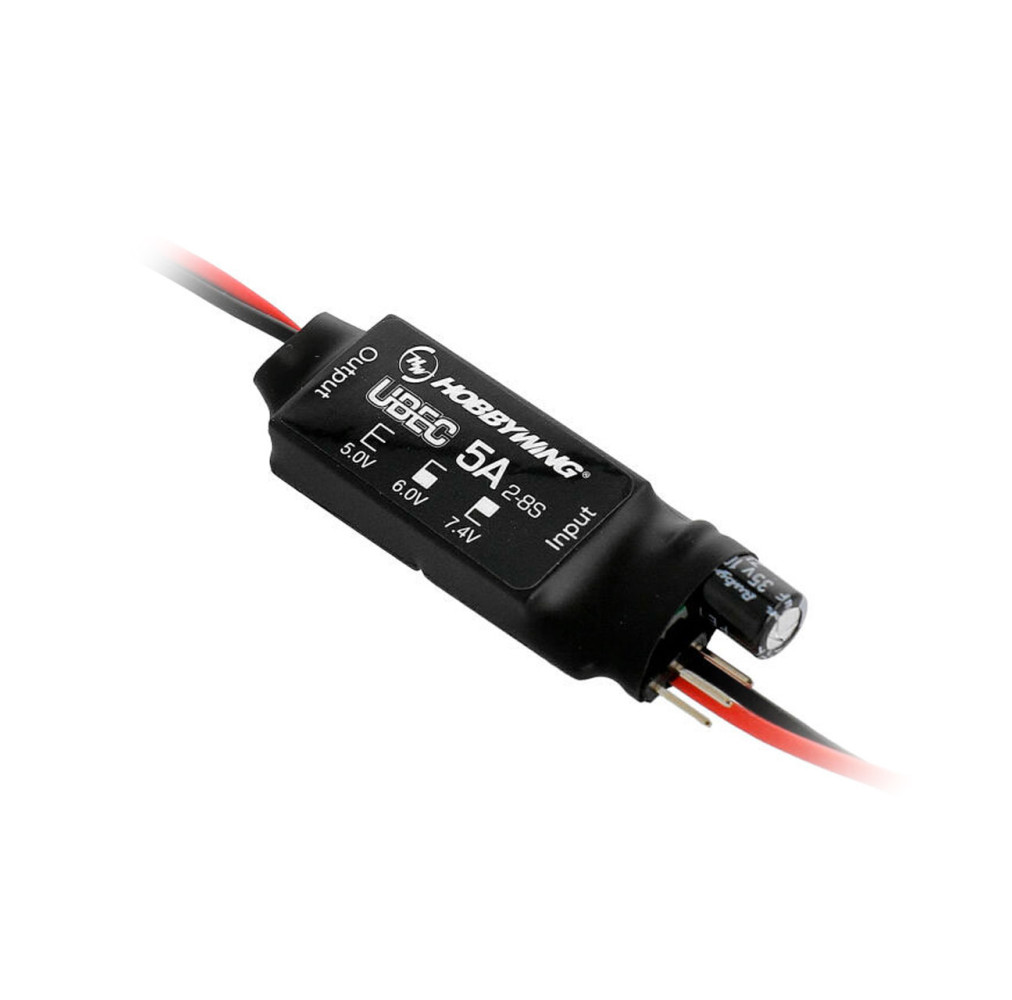

Hobbywing BEC 5A V2-Air UBEC controller for 2-8s
Hobbywing BEC 5A V2-Air UBEC controller for 2-8s
This UBEC is an external DC voltage regulator that works in switch mode. It draws its voltage from 2-8S LiPos and delivers a continuous and stable 5A output current or even 15A for a short time. In this way, the UBEC manages to provide the power for other devices on an RC model and is also ideal for all fixed-wing aircraft models.
Features:
Highly efficient DC-DC regulator chip for a transfer efficiency of over 90%.
An all-metal housing design contributes to heat conduction and reduces electromagnetic interference.
Adjustable UBEC output voltage (5.0V/6.0V/7.4V) applicable for servos with different voltages.
Multiple protection functions: overcurrent protection, output short circuit protection, overheat protection, safe and reliable.
LED display to indicate the status of the UBEC.
Technical data:
Input voltage: 2-8S LiPo
Output voltage: 5.0V / 6.0V / 7.4V (adjustable)
Current continuous/short: 5A / 15A
Dimensions: 50x17x10mm
Weight: 21g
