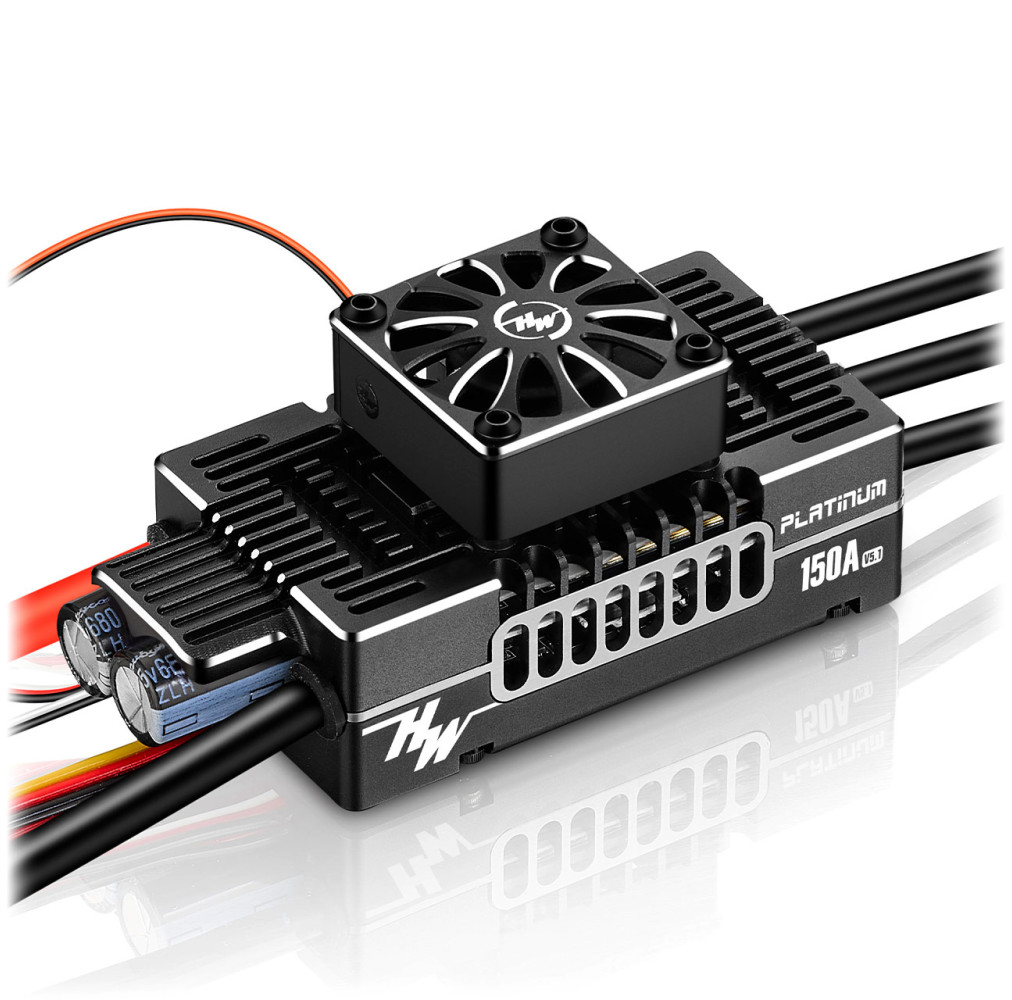

Hobbywing Platinum Pro 150A Regler V5.1 3-8s, 10 A BEC
Product information "Hobbywing Platinum Pro 150A controller V5.1 3-8s, 10 A BEC"
The Platinum V5.1 150A is the ideal companion for electric helicopter and fixed-wing models. Equipped with the latest technology, it offers a variety of protective devices to ensure a safe flight experience. The main new feature in version 5.1 is the revised and switchable BEC, which now supports 5 to 12 volts. Compared to the previous controller version, the speed accuracy algorithm makes the Platinum 150A more powerful and reliable. The adjustable sensitivity for a constant speed makes it easy for every pilot to find a setting that suits their own flying style and the current flight conditions.

The special design also improves air circulation so that the operating temperature does not reach a critical level. The open design of the controller is immediately apparent. The additional use of thermal tape and another heat sink inside ensures an overall extension of the service life and improved heat dissipation on the otherwise sensitive external capacitors.

Characteristics:

Improved switch-mode BEC with 5-12V instead of only up to 8V
The 32-bit processor and an algorithm for precise speed determination ensure even more performance
Now supports flight models from 520 to 580 instead of 550 to 580
Compatible with Mikado VBar Control and VBar Telemetry Ready and much more
Equipped with "DEO" (Driving Efficiency Optimization) for best control characteristics and performance
Efficient cooling through ventilation slots on two sides
Multiple protection functions
Technical data:

Type: Brushless
Current (continuous/short): 150A/180A
Cell count: 3-8S
BEC voltage: 5-12V @ 10A (switch mode)
BEC current (continuous/short): 10A/30A
Cable battery/motor 1x 10AWG (red, black each)
3x 12AWG (black)
Battery/motor connector: 4.0mm gold contact plug
Telemetry function: Mikado VBar, Futaba S.Bus2, etc.
Dimensions: 83.2x37.1x22.5mm
Weight: 150.4g
Accessories optional: HW30502001 LCD programming box
HW30850400 OTA programming module
Mission: 520-580 electric helicopter (main rotor length 520-580mm)
Scope of delivery:
1x Controller Platinum V5.1 150A
1x Manual
