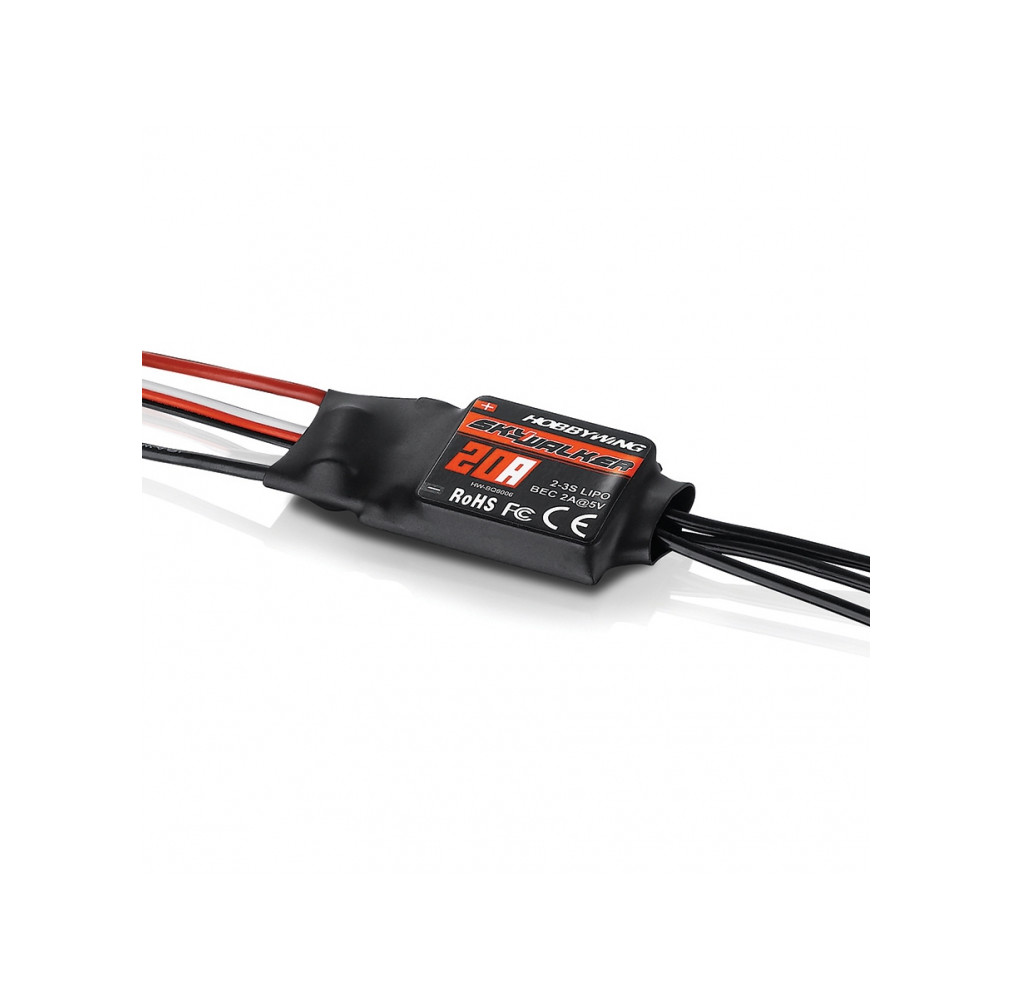

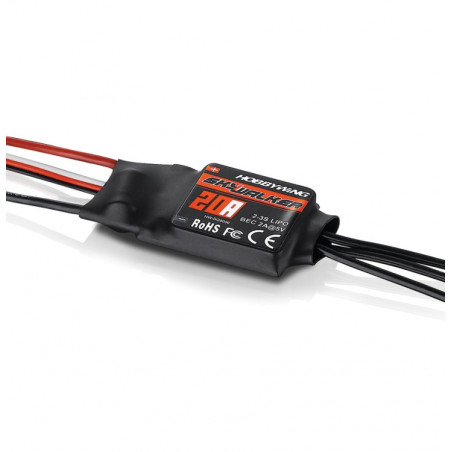

Skywalker 20A ESC Airplane 2-4S Hobbywing
High Quality & Reliability
Good quality comoponents guarantees the high quality and reliability of SkyWalker series of aircraft ESCs.


Programmable Parameters
With a LED program card, then you can program relevant parameters on your Skywalker to your personal preference.


Multiple Protections
Multiple protection features include abnomal input voltage, ESC thermal, throttle signal loss (or Fail Safe), and low voltage cutoff effectively prolongs the service life of the ESC.


Specifications

Brushed/Brushless: BL
High Voltage/Regular: Regular
Cont./Peak Current: 20A/25A
Input: 2-3S LiPo
BEC Output: Linear mode:5V,2A
Input Wires:
Red-18AWG-100mm*1
Black-18AWG-100mm*1
Output Wires: Black-18AWG-75mm*3
Input Connectors: No
Output Connectors: 3.5 Gold Connectors (Female)
Transmitter: Supported
LED Program Card: Supported
LED Program Box: Not Supported
LCD Program Box: Not Supported
WiFi Module: Not Supported
Program Port: Program/Throttle Wire
Firmware Upgrade: Not Supported
Size & Weight

Size: 42.0x25.0x8.0mm
Weight: 19g
